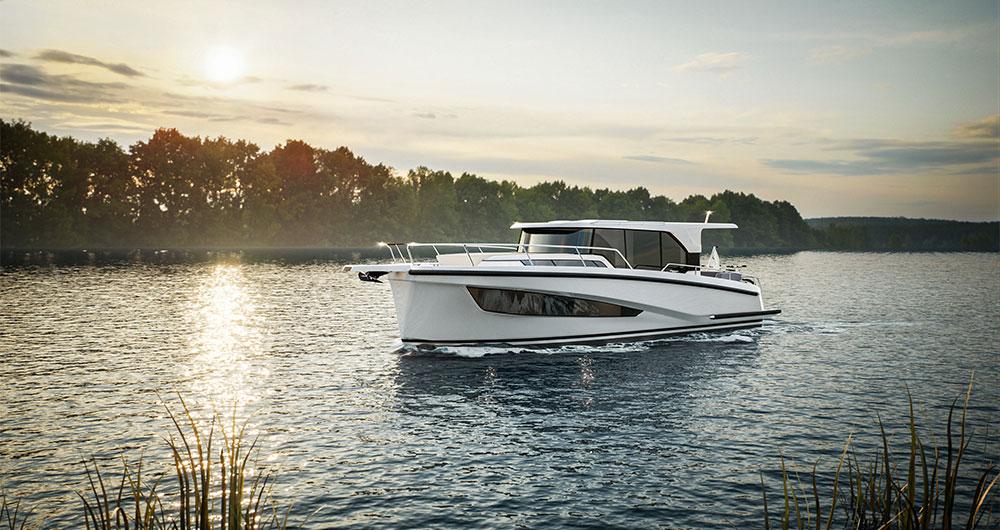

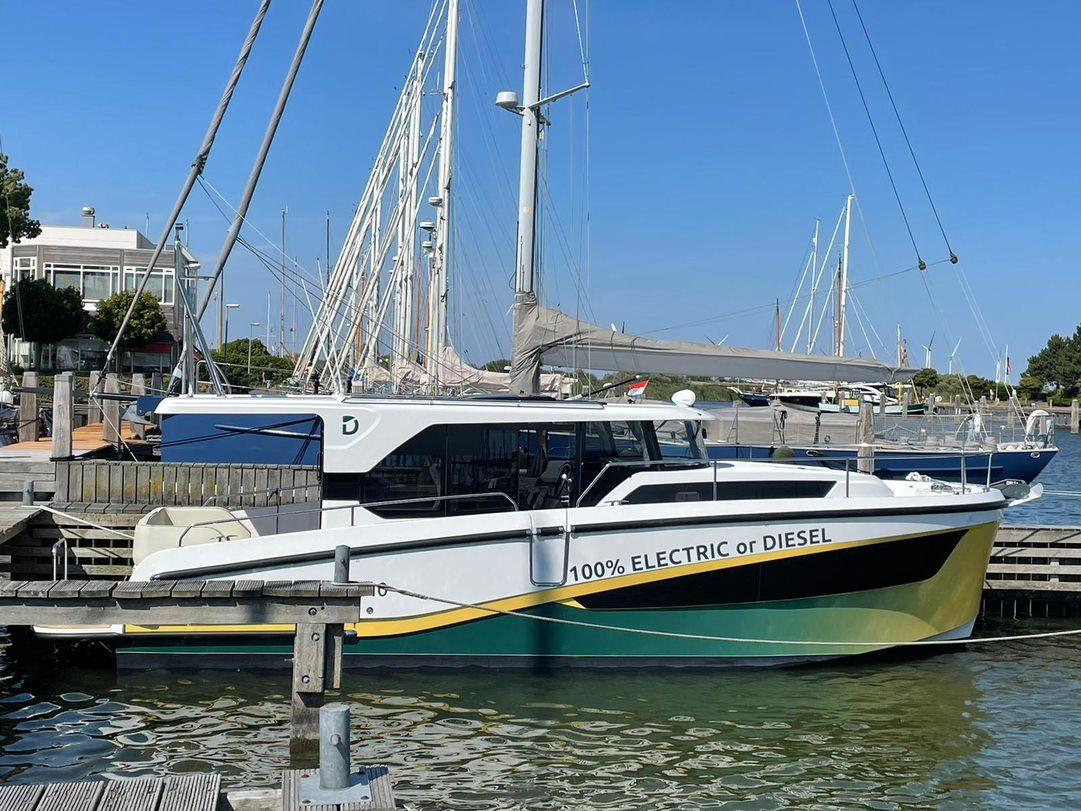

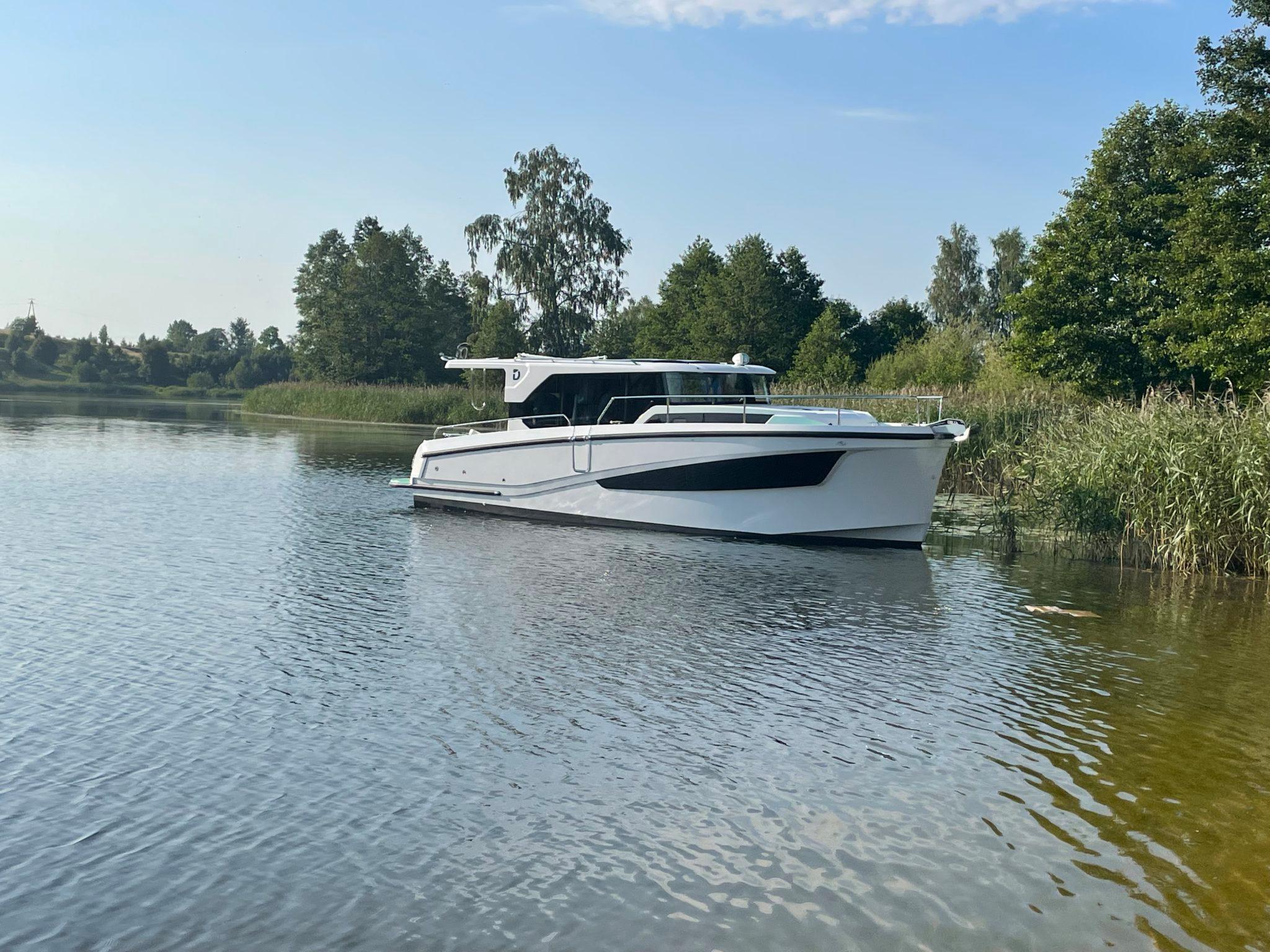

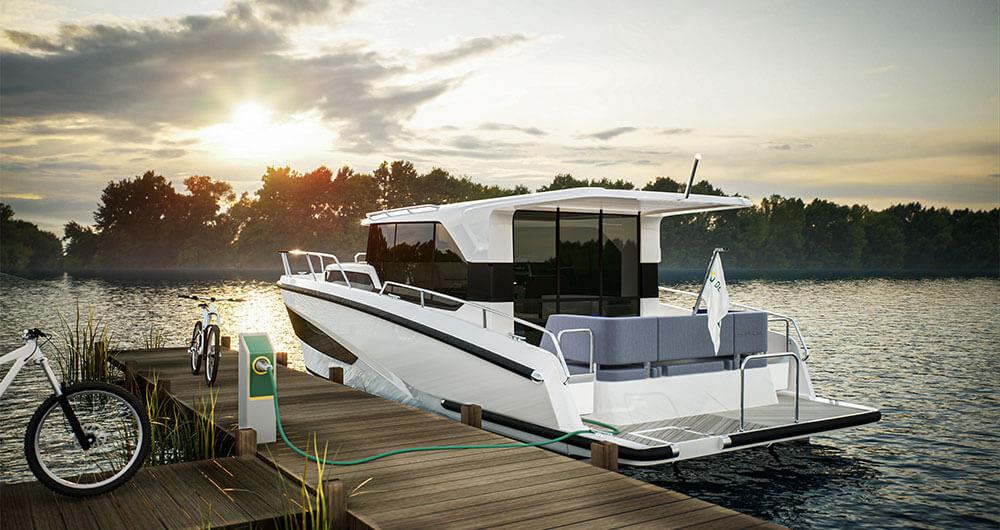

The Delphia 10 “Sedan” designed by Vri Pack, available with 110 hp diesel. Mindful Cruising with Deacceleration in mind for easy inland waterways navigation.

Featuring a an enclosed wheelhouse salon with double opening doors to the stern a side door to starboard by the helm and large opening windows to port, Seating for 6 in comfort a wheel house galley and optional sliding hatches and solar panels to the roof.

Features

• COCKPIT TABLE

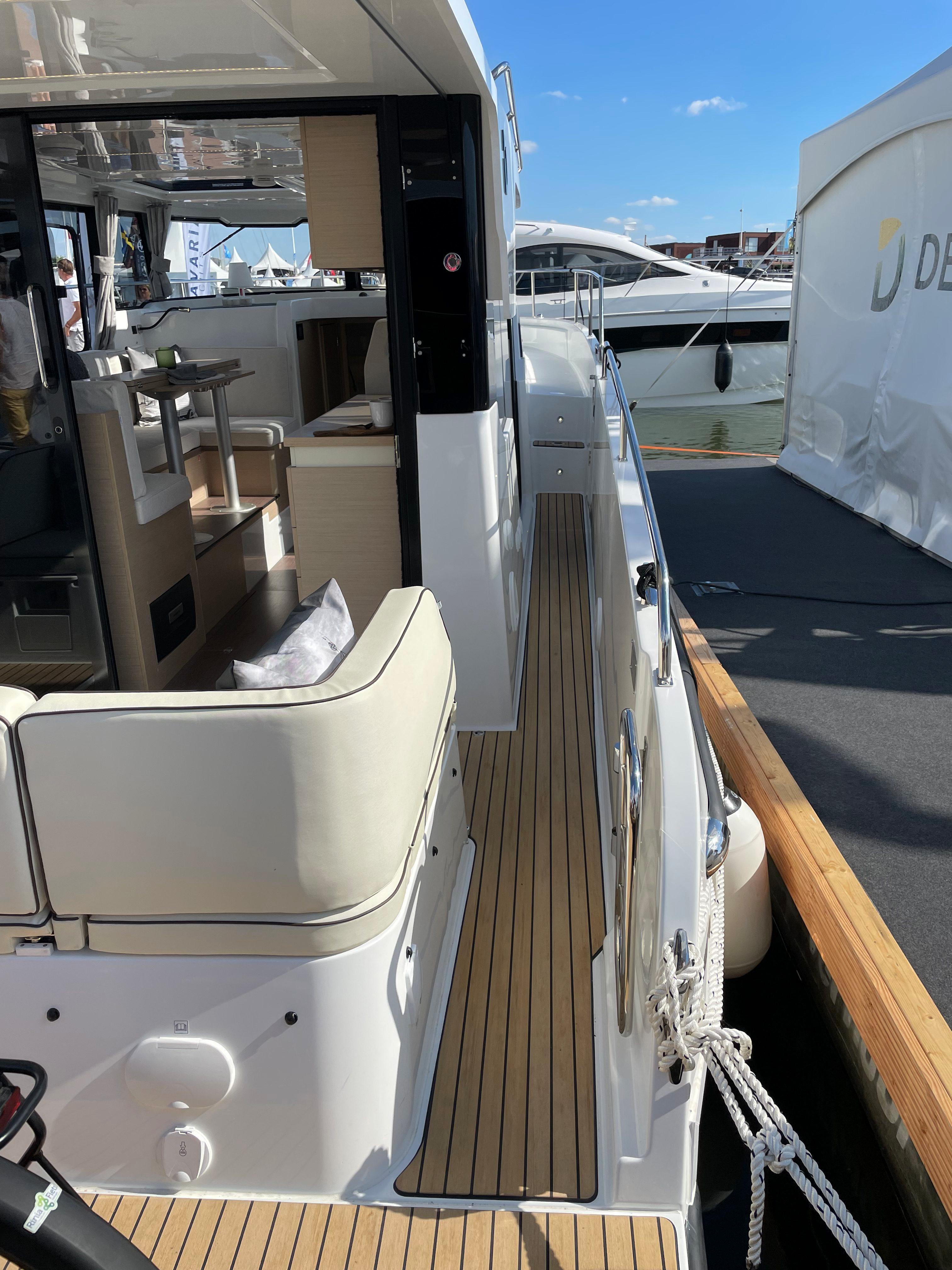

• TEAK SIDE DECKS
• HEATING
• SWIMMING LADDERO
• ELECTRIC BILGE PUMP
• REFRIGERATOR
• BATTERY CHARGER
• HOT WATER
• TEAK COCKPIT
• COCKPIT COVER
• OVEN
• SHORE POWER INLET
• BOW THRUSTER
• ELECTRIC HEAD
• COCKPIT SPEAKERS
• COCKPIT SHOWER
• MANUAL BILGE PUMP
• STERN THRUSTER

HULL

• “Pure” white gelcoat, RAL 9016 To Hull & Deck
• “Pearl” green waterline stripes, RAL 6035
• GRP hand lay-up using with anti osmosis barrier incl. balsa core sandwich construction
• Structural hull counter moulding in monolithic laminate
• 2x hull portlights, acrylic glass
• Protective rub rail along the hull, black

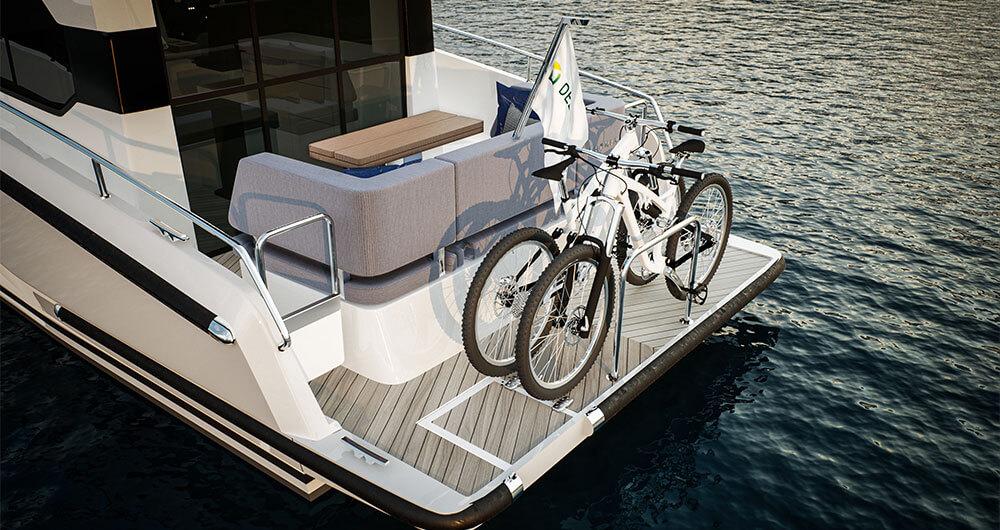

• Bathing platform incl. boarding ladder

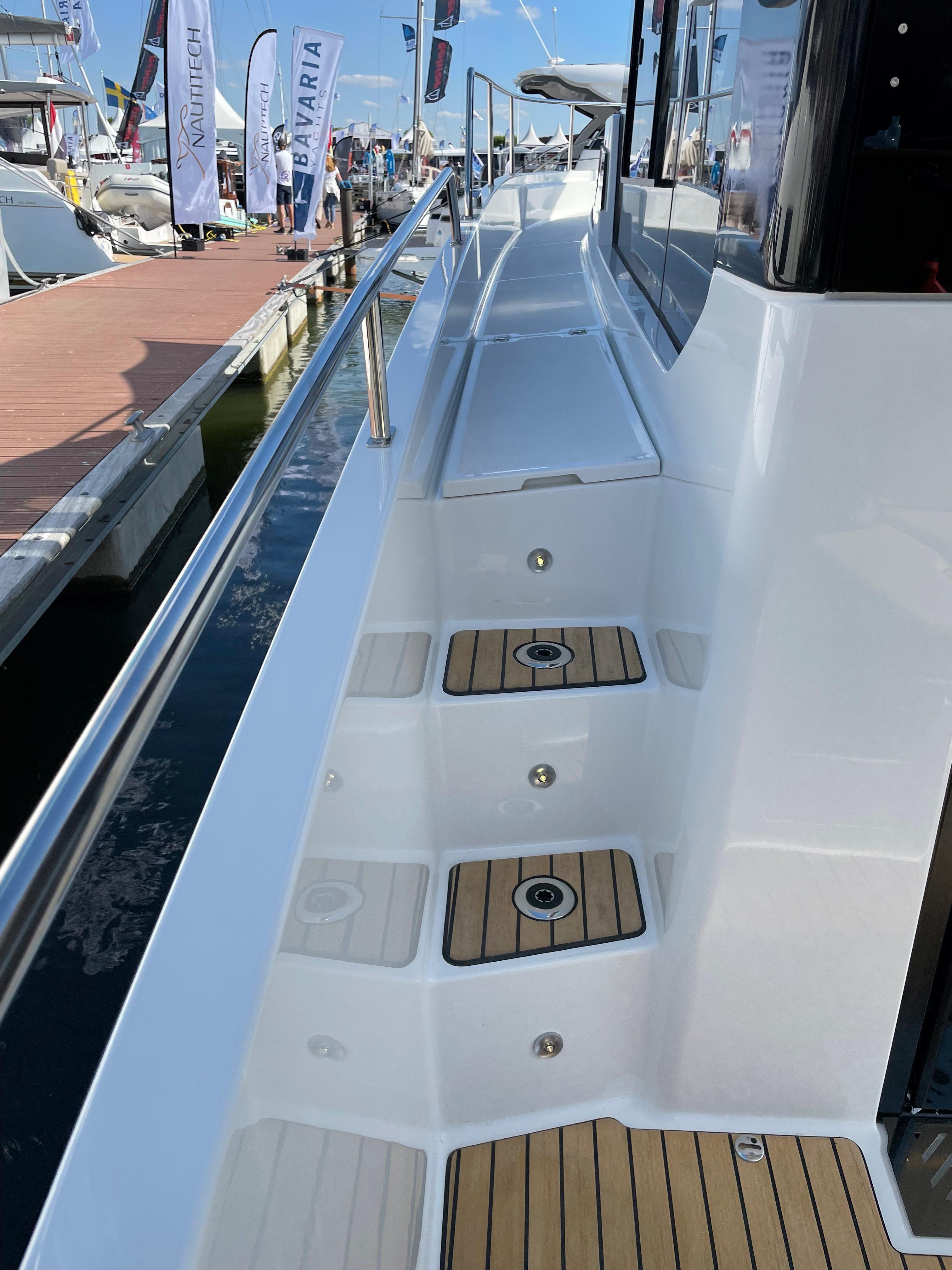

DECK

• GRP hand lay-up incl. balsa core sandwich construction
• Structural counter moulding in monolithic laminate
• Diamond tip type non-slip surface

DECK EQUIPMENT

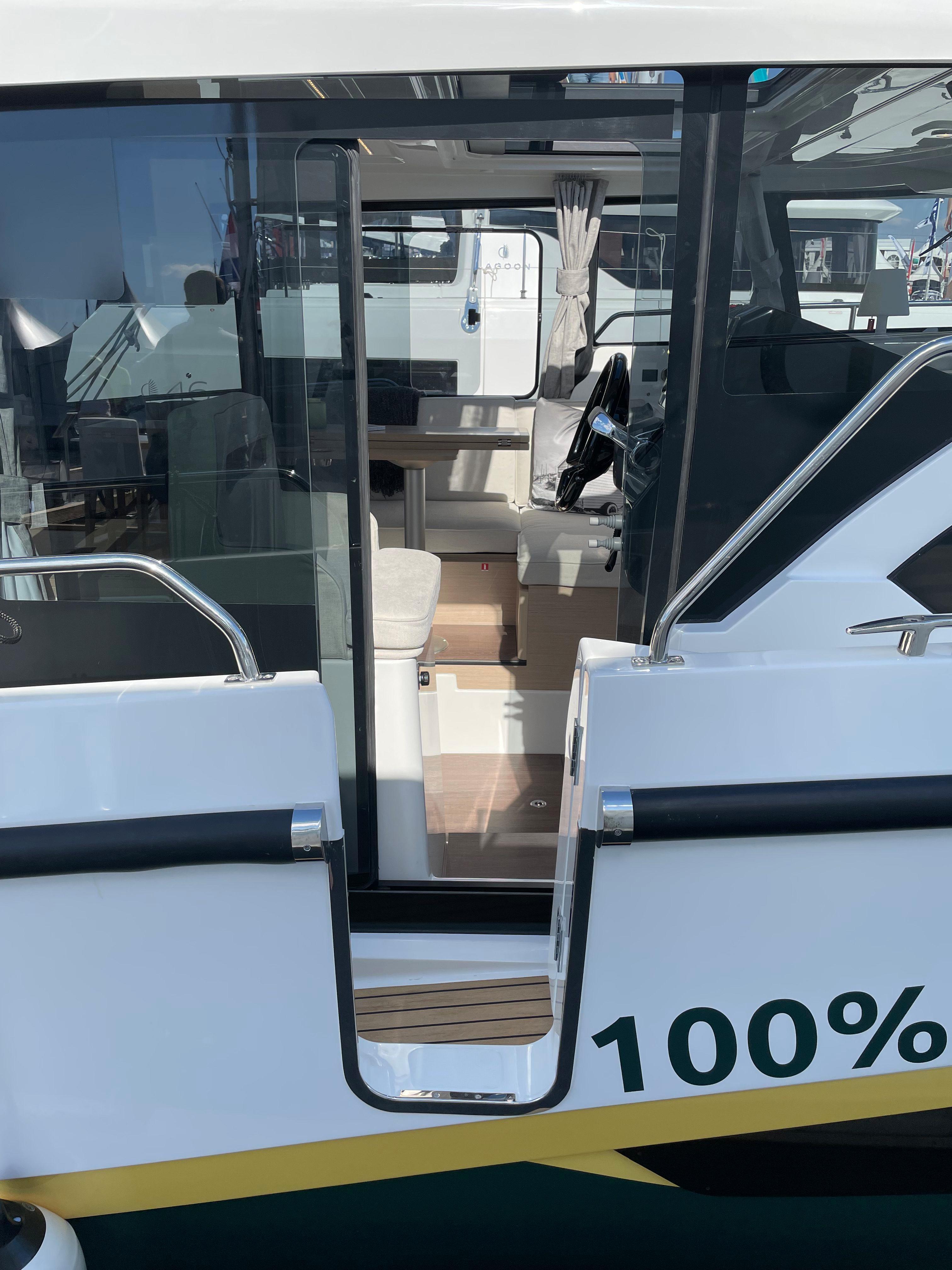

• Bulwark side gate on starboard side
• Anchor locker incl. pad eye for chain fixation
• 4 mooring cleats, stainless steel
• Guardrail from midships to bow, stainless steel
• Handrail on wheelhouse, stainless steel
• Transom gates, stainless steel

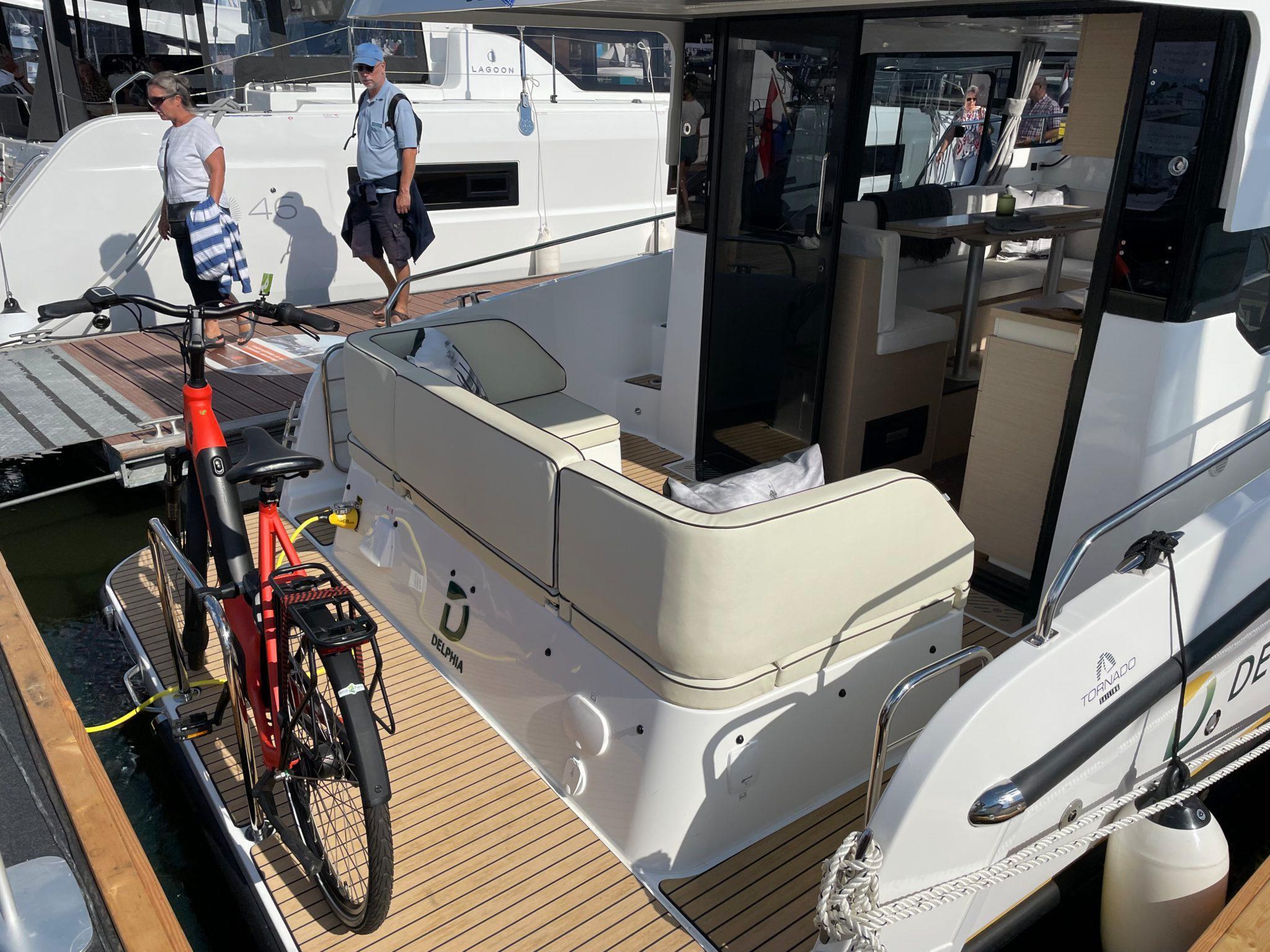

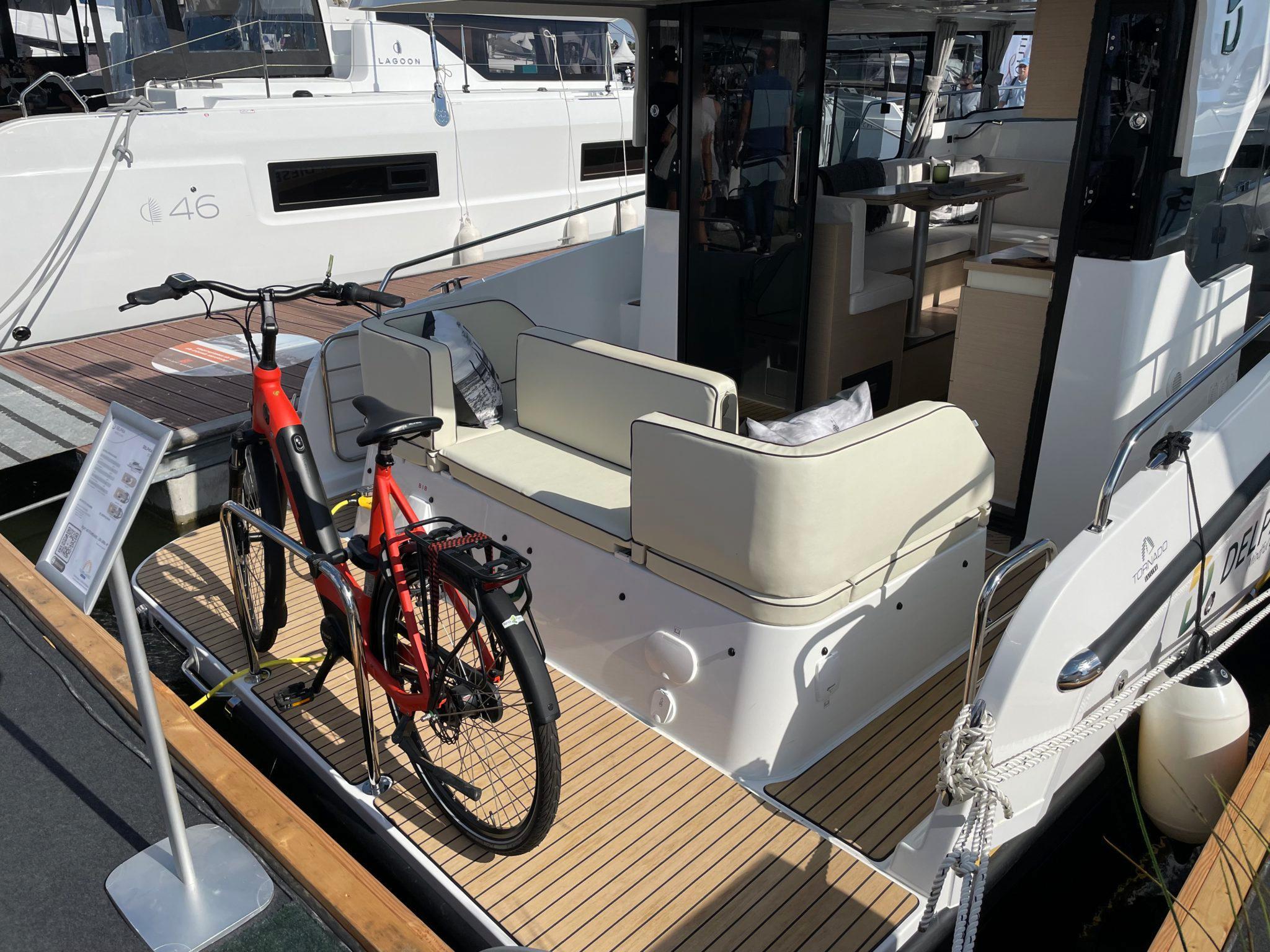

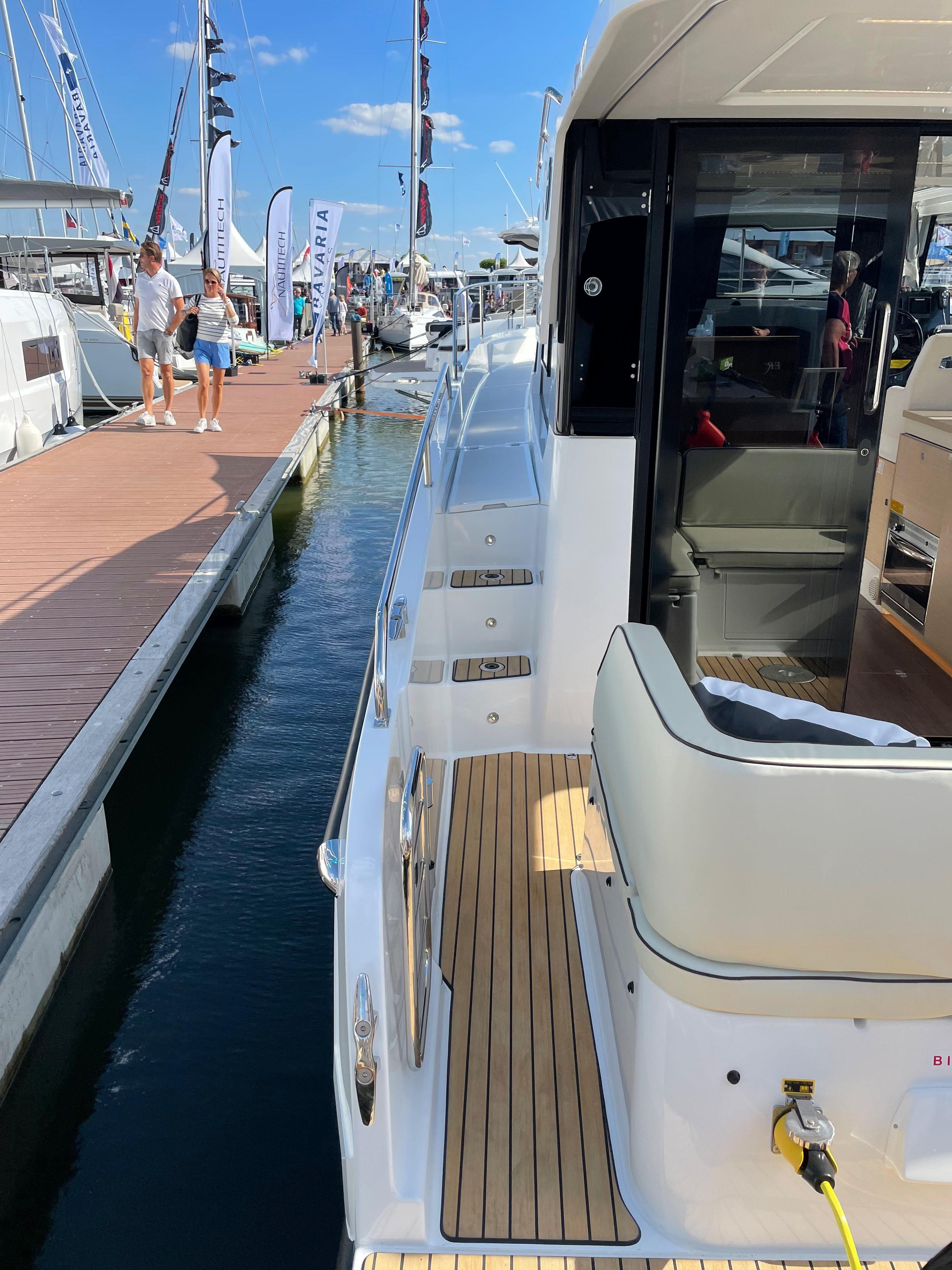

COCKPIT

• Self bailing cockpit

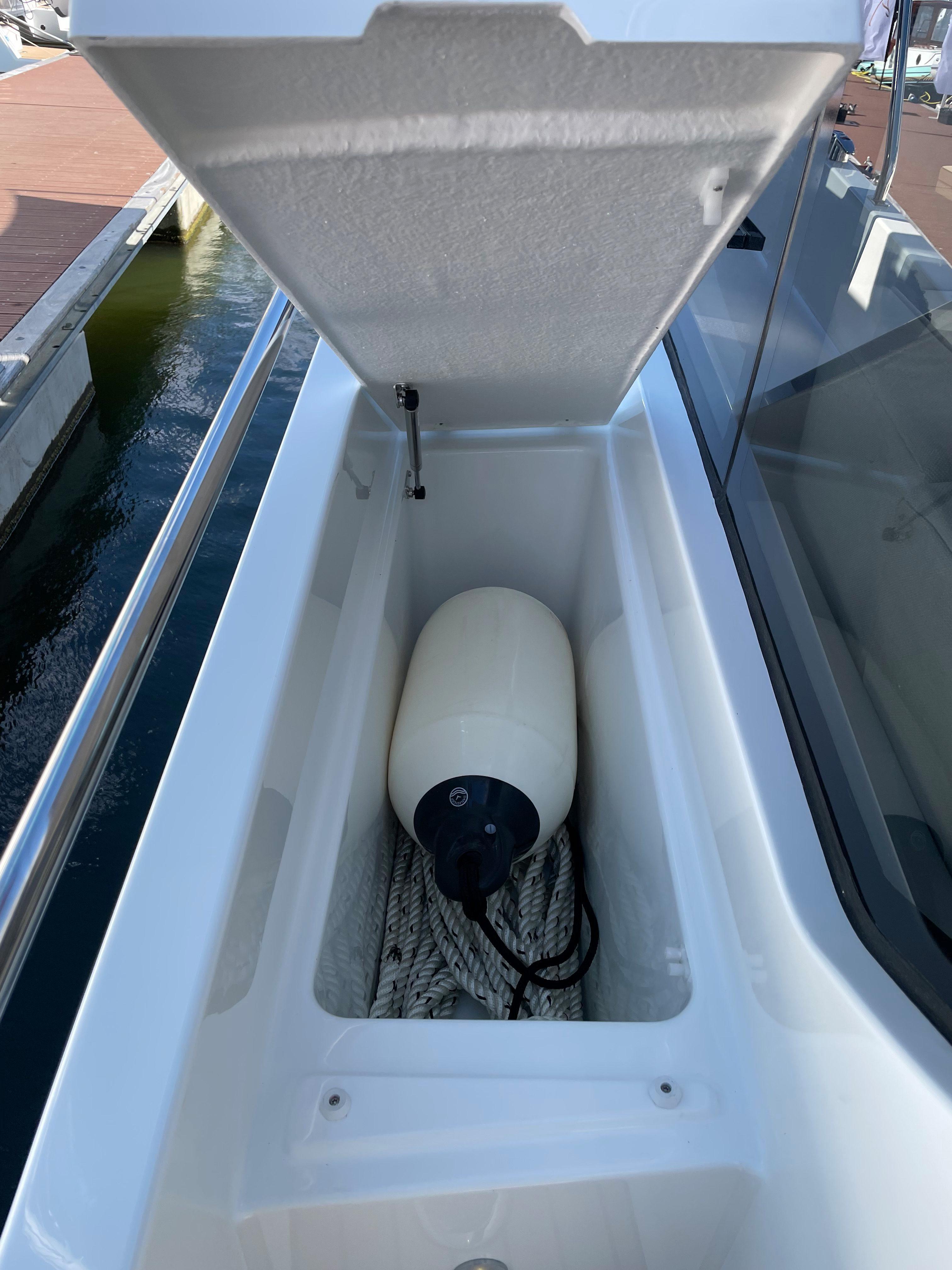

• 1x large storage locker in cockpit bottom, lockable
• Cockpit bench incl. 2x storage lockers
• Gas bottle locker in cockpit bench (fitting 2x 2,75kg gas bottles)

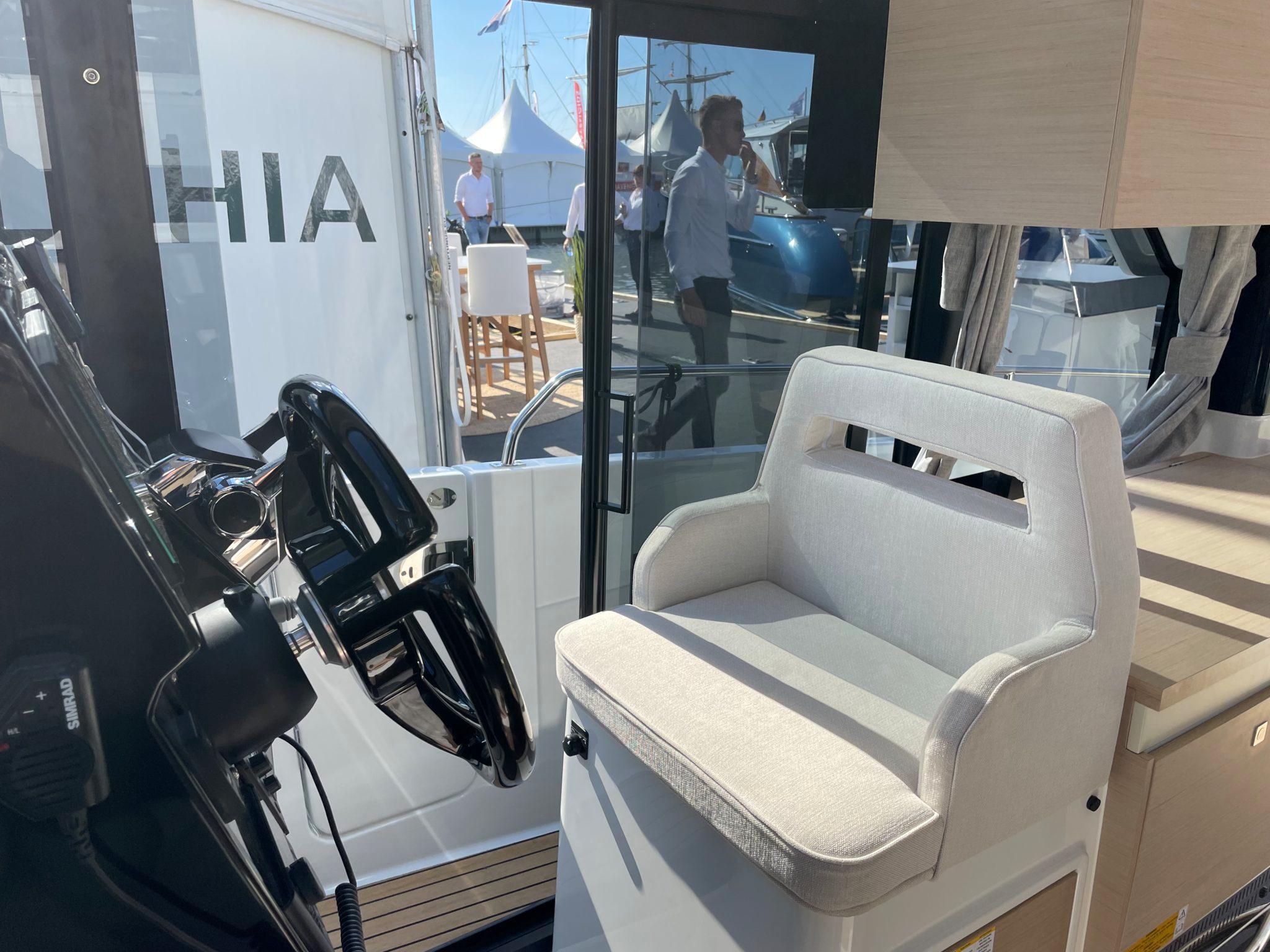

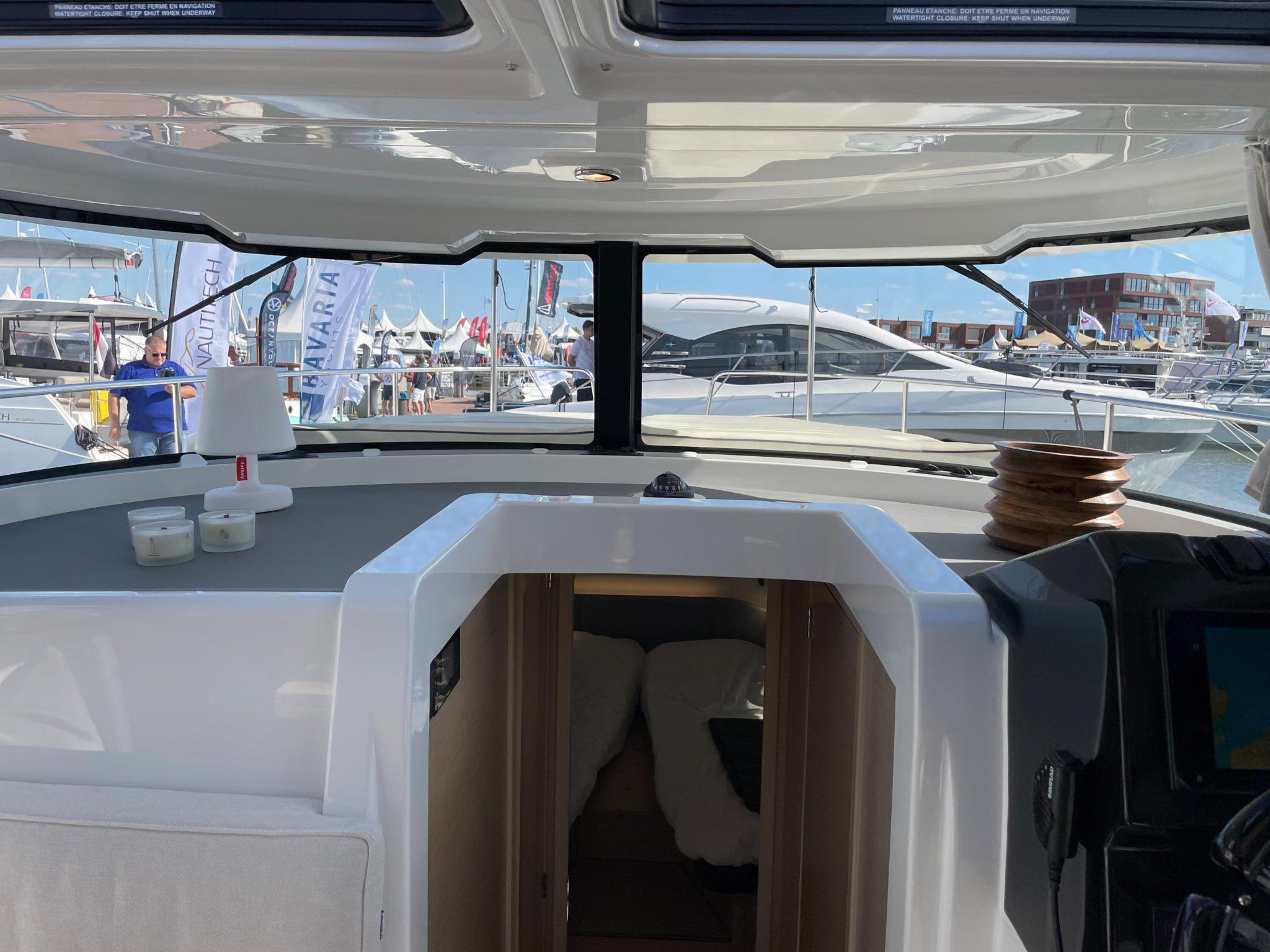

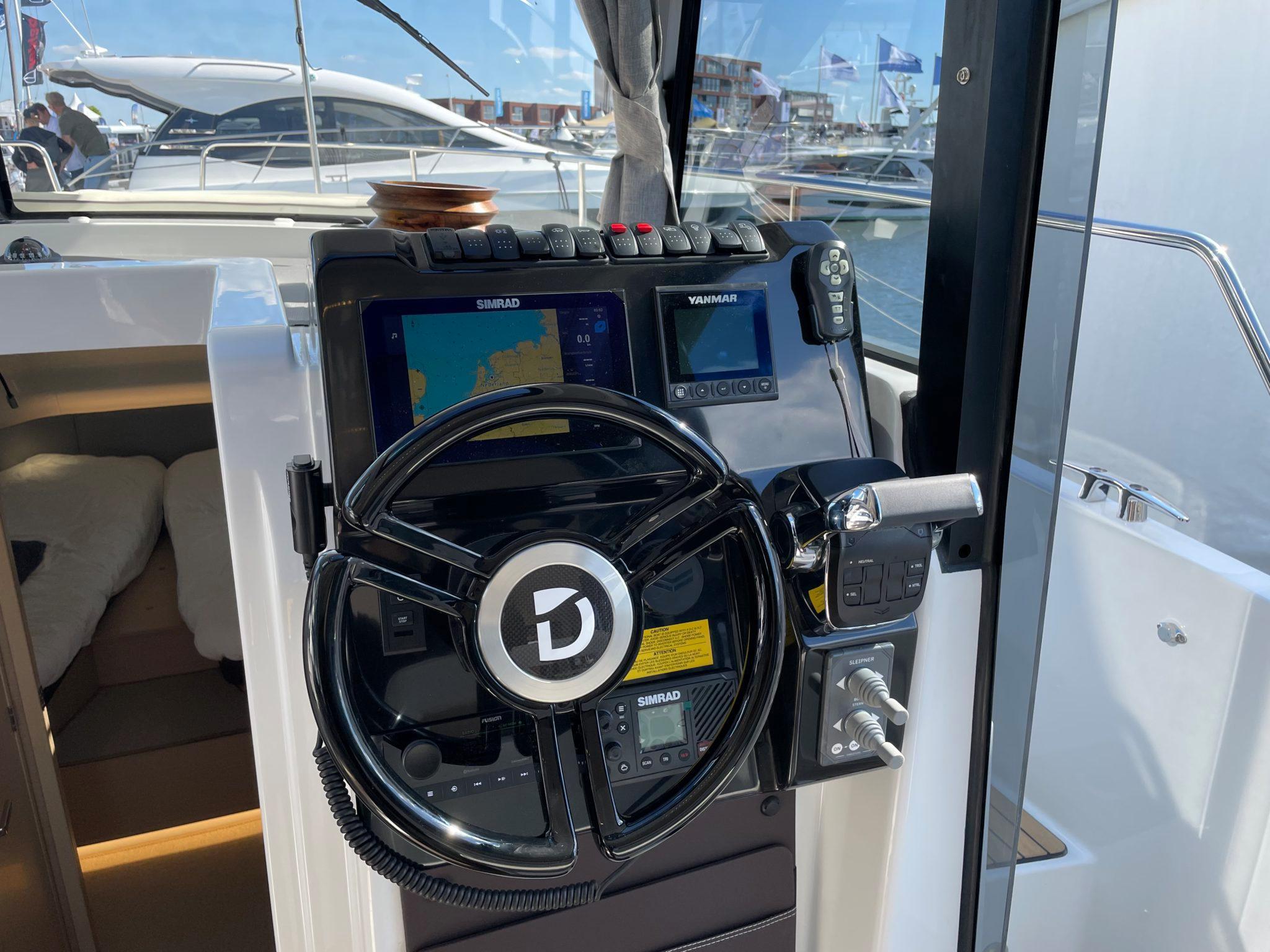

STEERING STATION

• Single-seater pilot seat
• Clear glass windscreen with aluminium frames, black
• Dashboard includes:
o Engine throttle control
o Engine instrumentation: rev counter, fuel gauge,
o Location for max. 9’’ display
o Compass
• Steering wheel
• Footrest
• Red overhead night light, LED
• Sliding side helmsman door

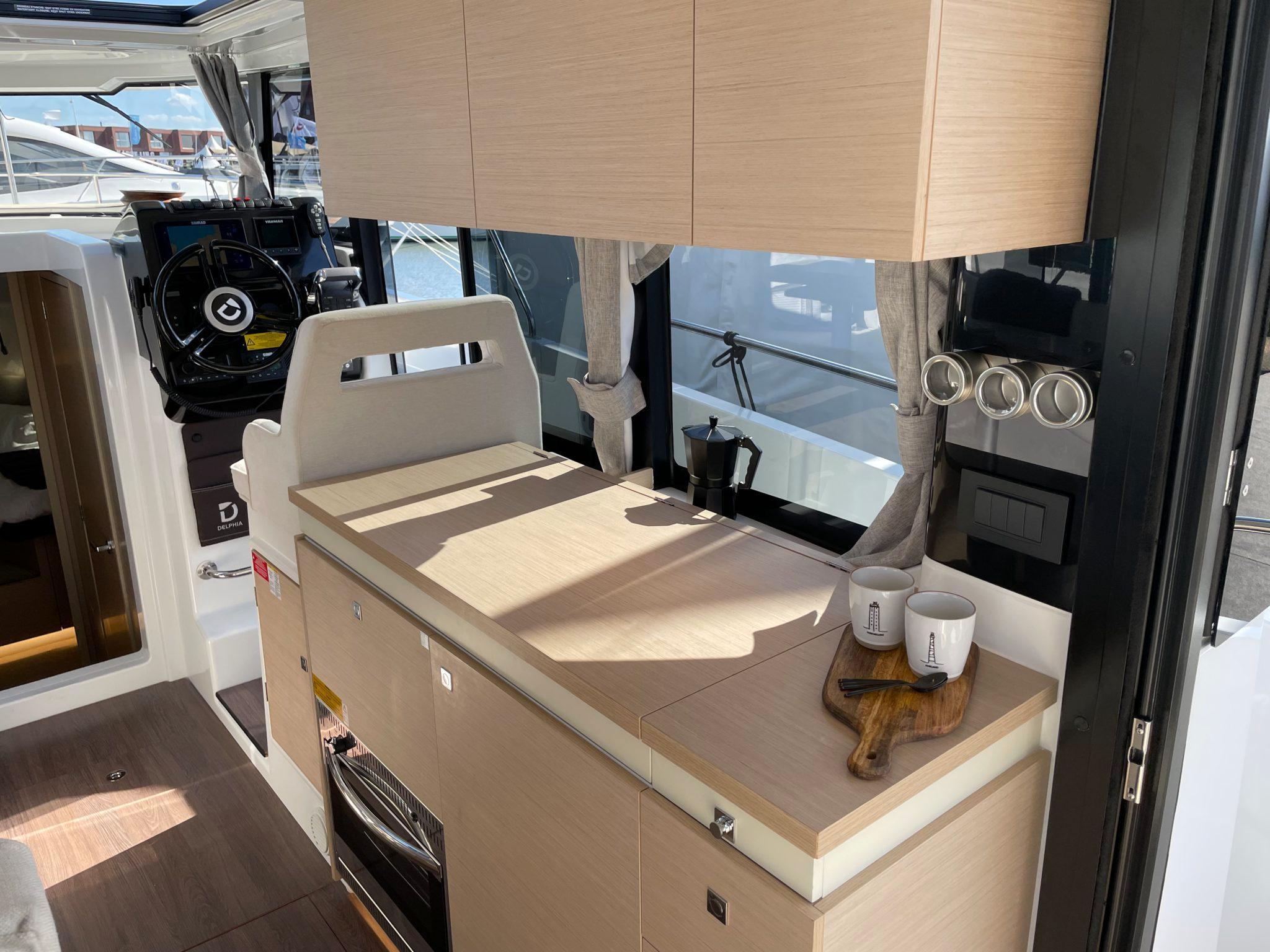

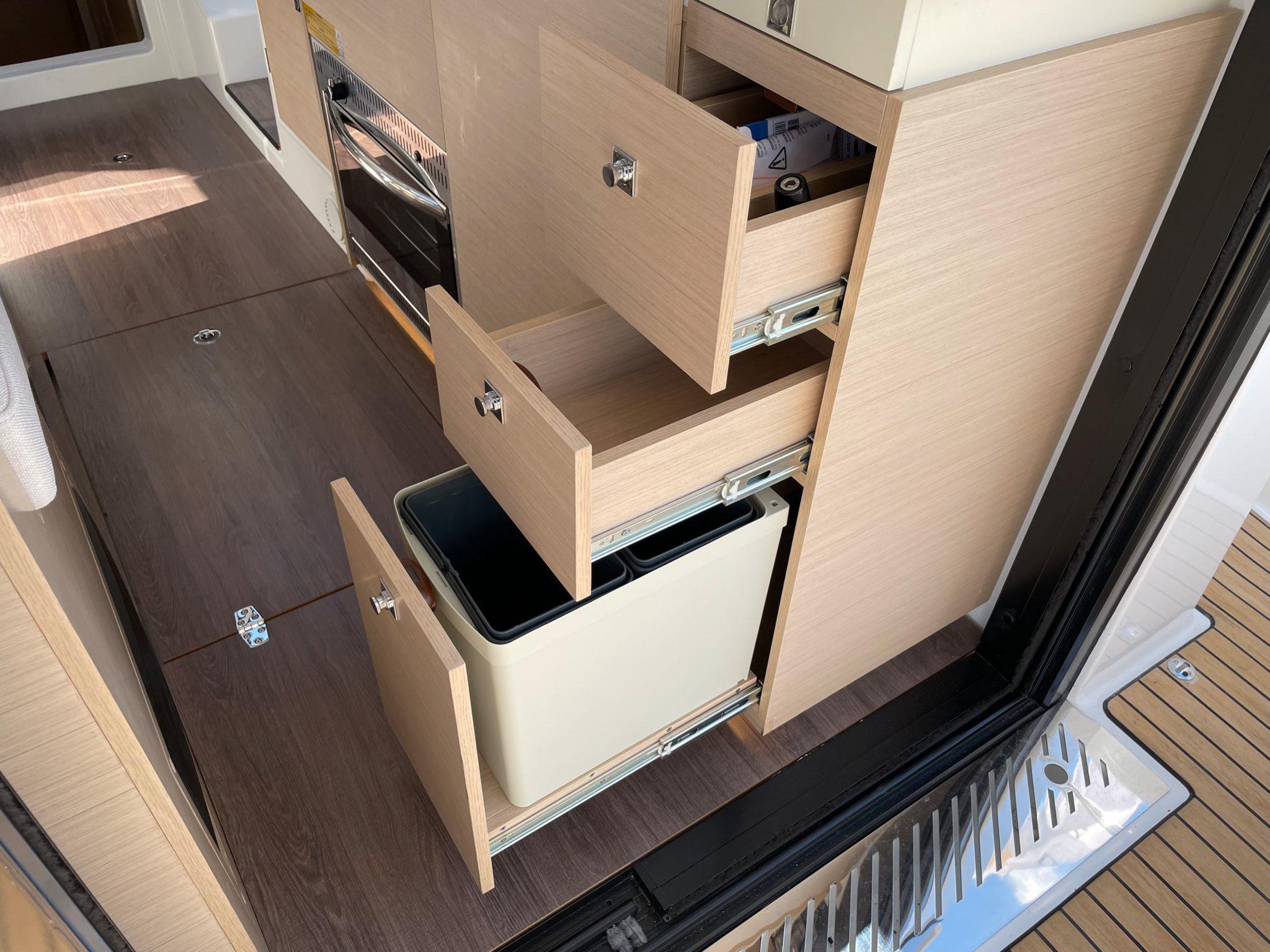

GALLEY

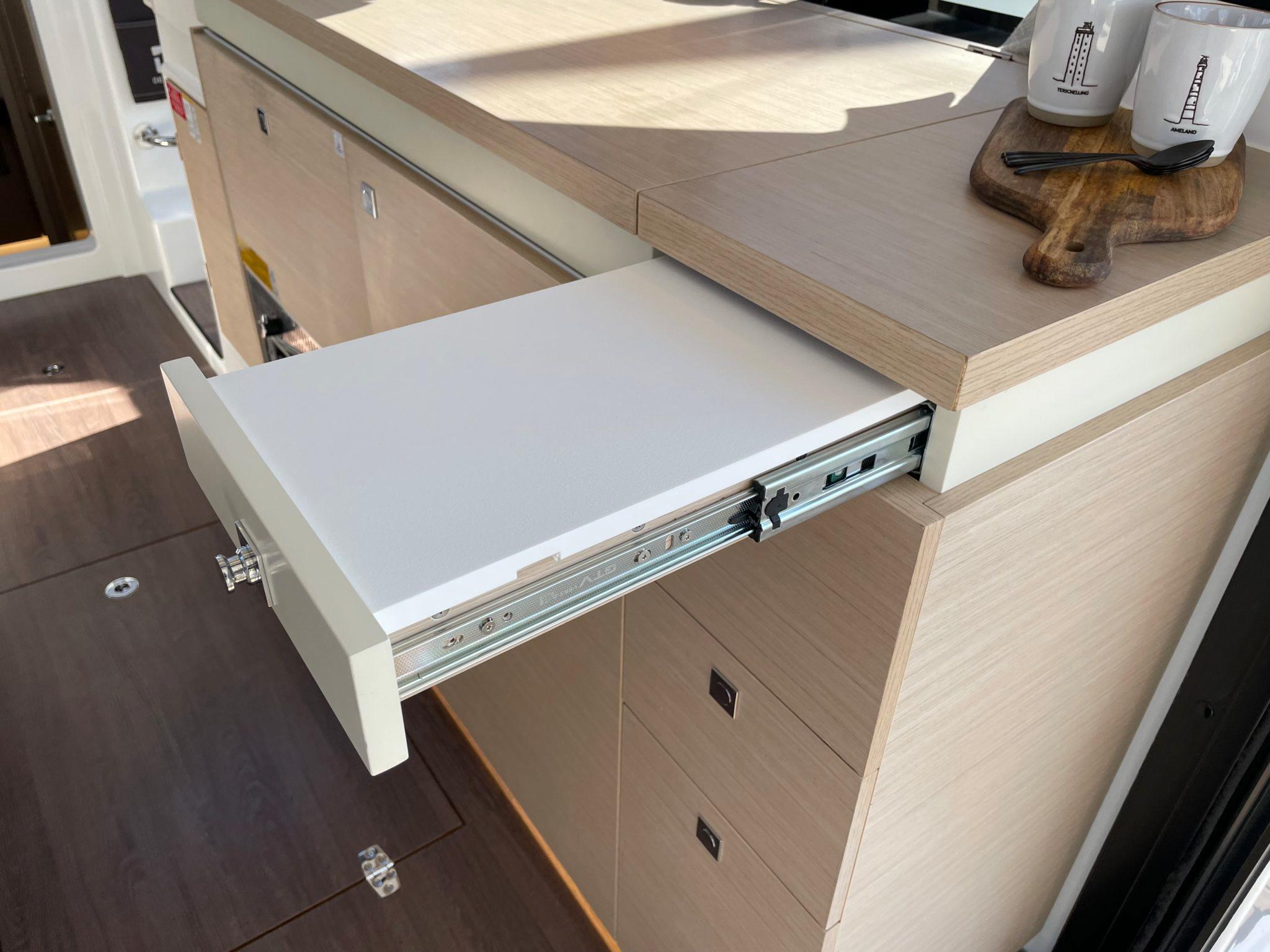

• Linear galley includes:
o Wooden galley lid
o Stainless steel sink with hot/cold mixer tap
o 2 burner gas hob cooker

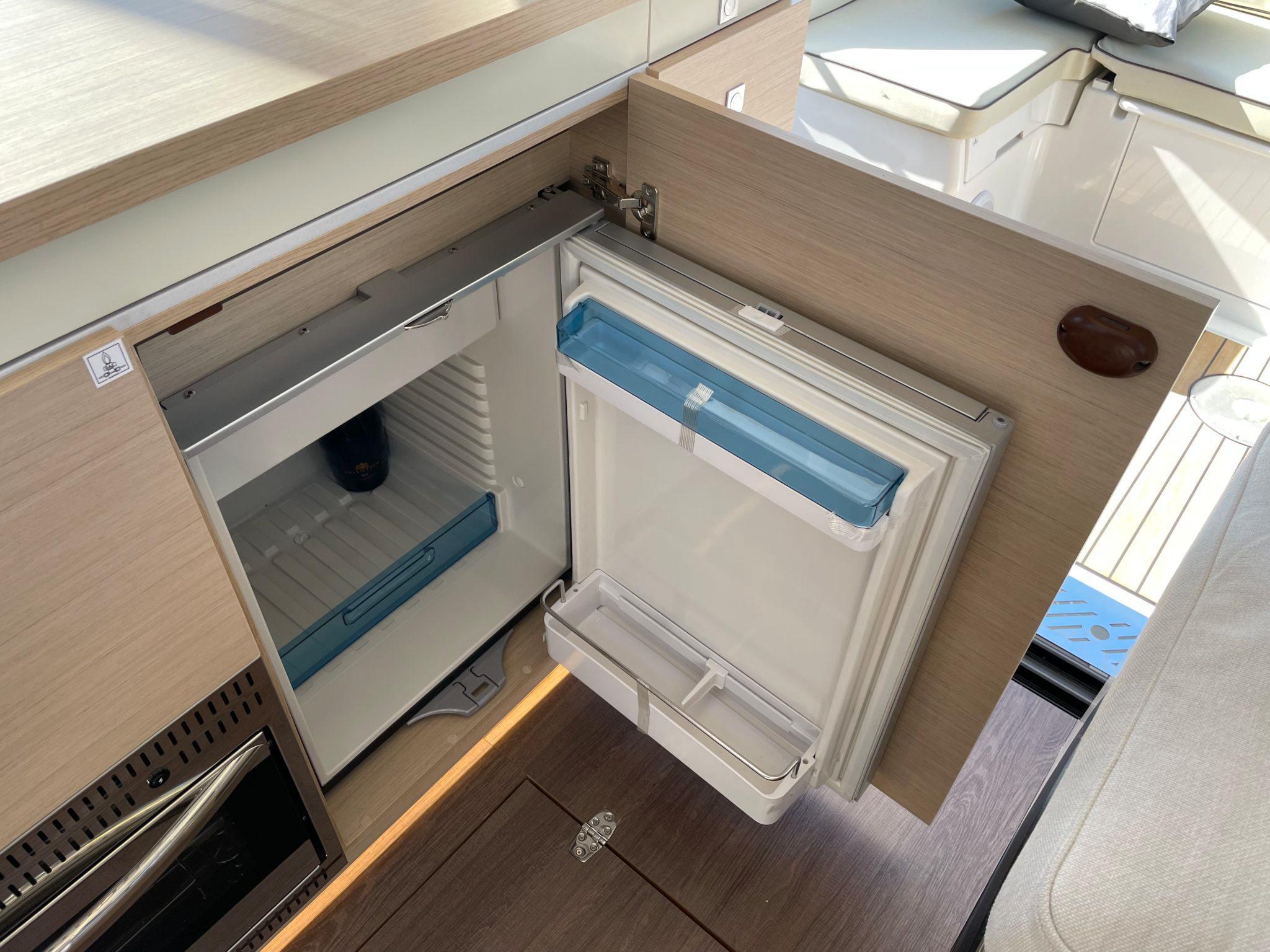

o Front opening fridge/freezer, 80l
o Waste bin
o Cutlery drawer
• 2x 230V sockets
• Storage lockers

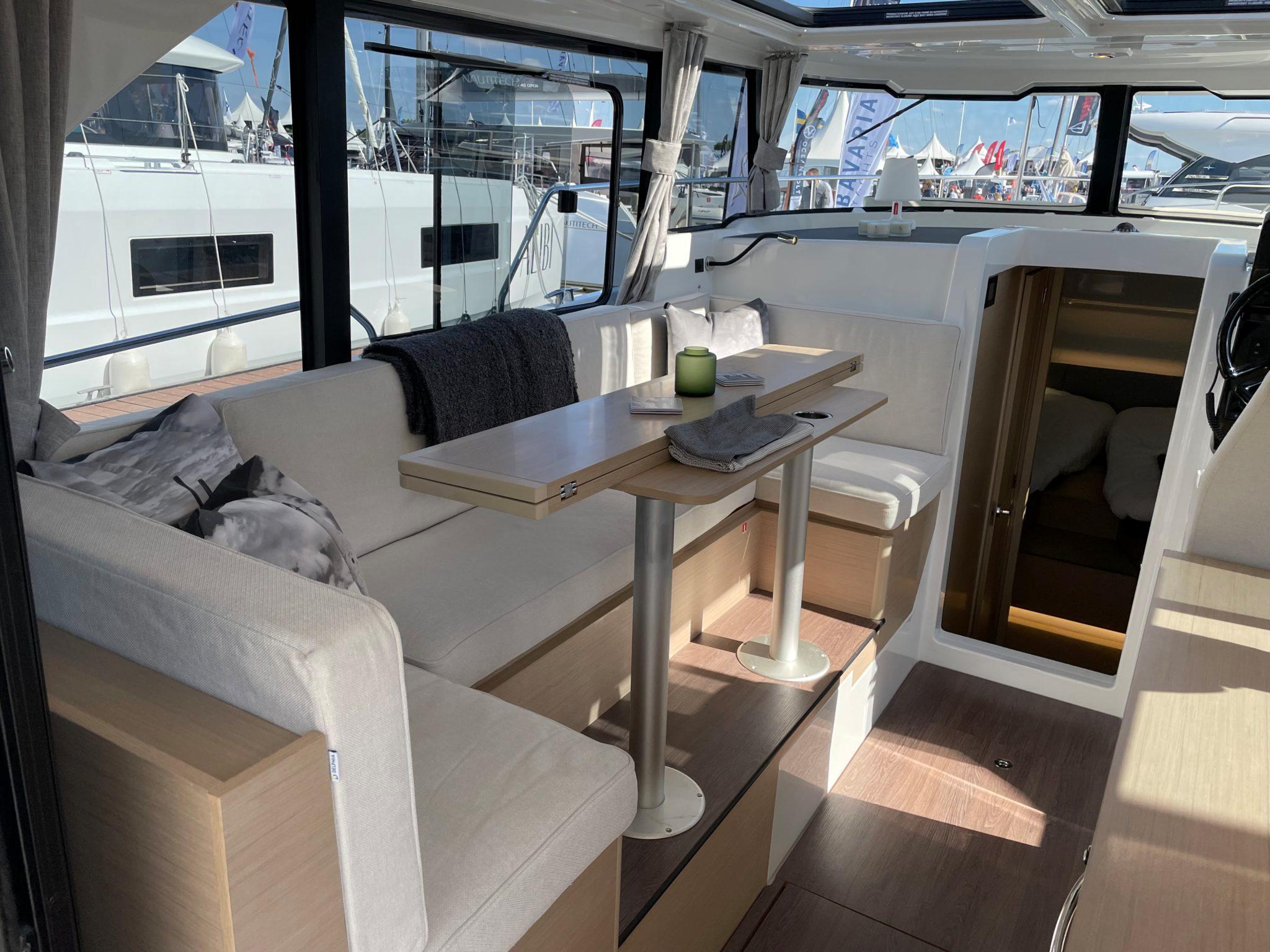

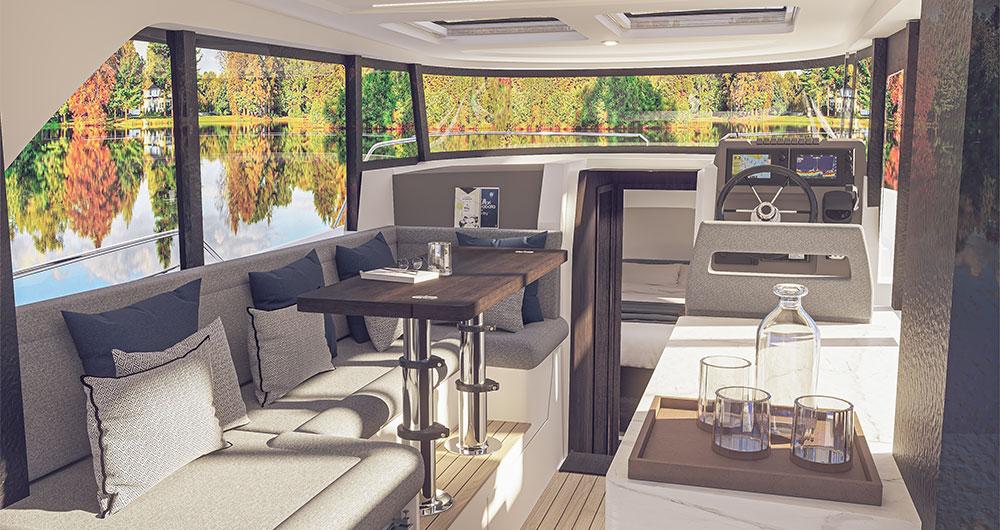

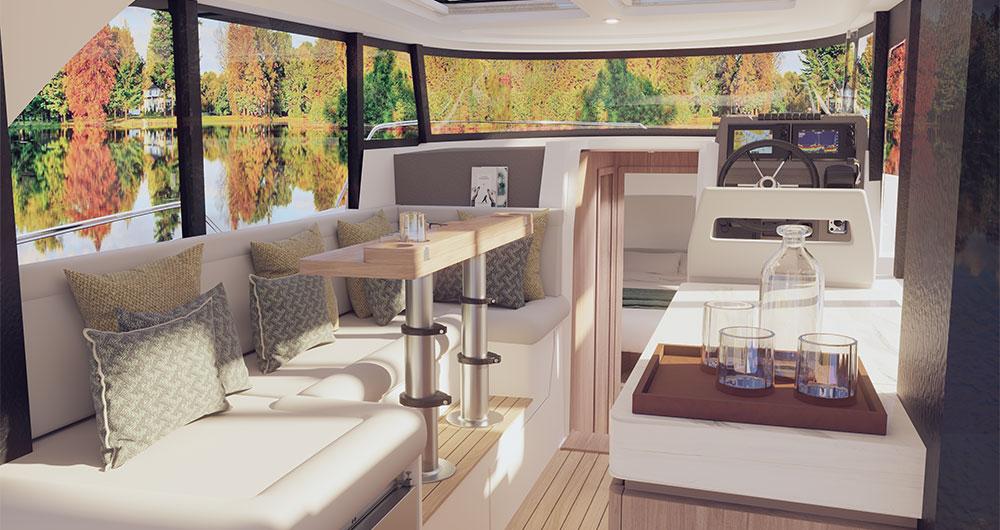

SALON

• U-shape dining bench with storage space
• Foldable dining table incl. cup holders, fixed
• Sliding opening side window on port
• Storage locker
• Headliner in gloss finish GRP
• Headliner partially covered with padded panels
• Overhead lights, LED
• 3 partition sliding patio door

AMBIENCE

• Alpi Walnut interior woodwork
• Grey oak style floors
• Interior cushions fabrics : Drom "Sand"
• Worktop in composite «Nero Black» material

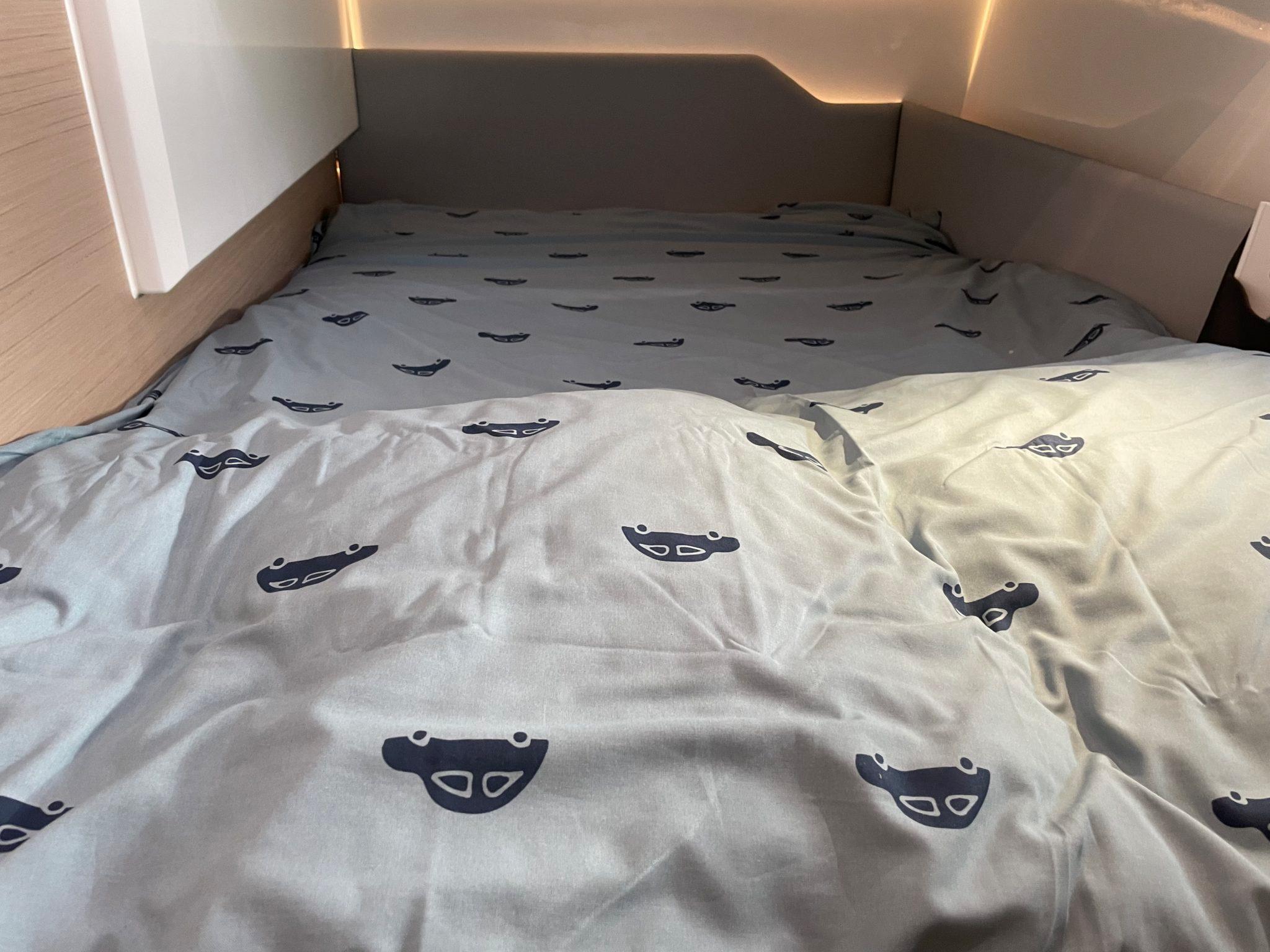

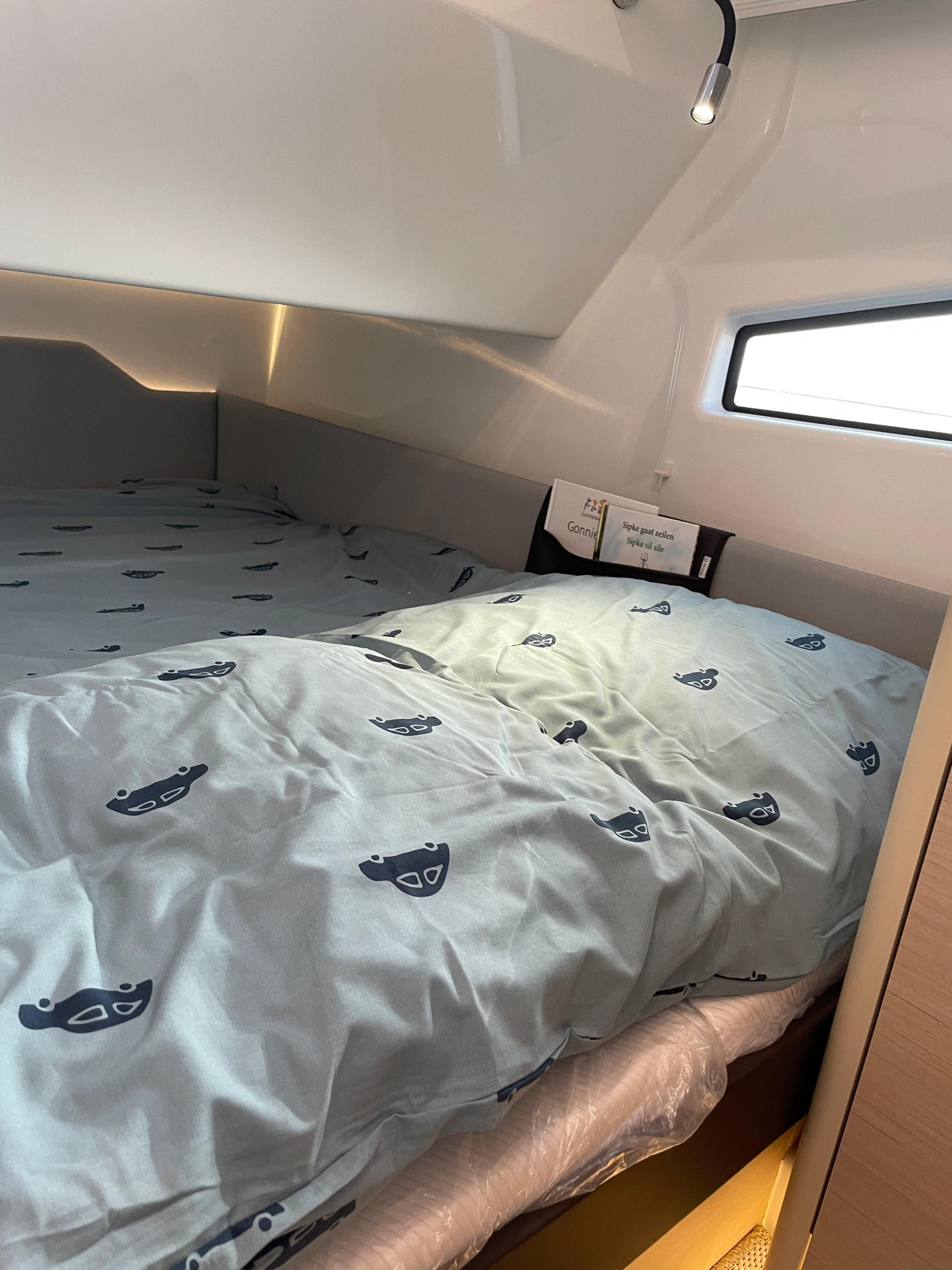

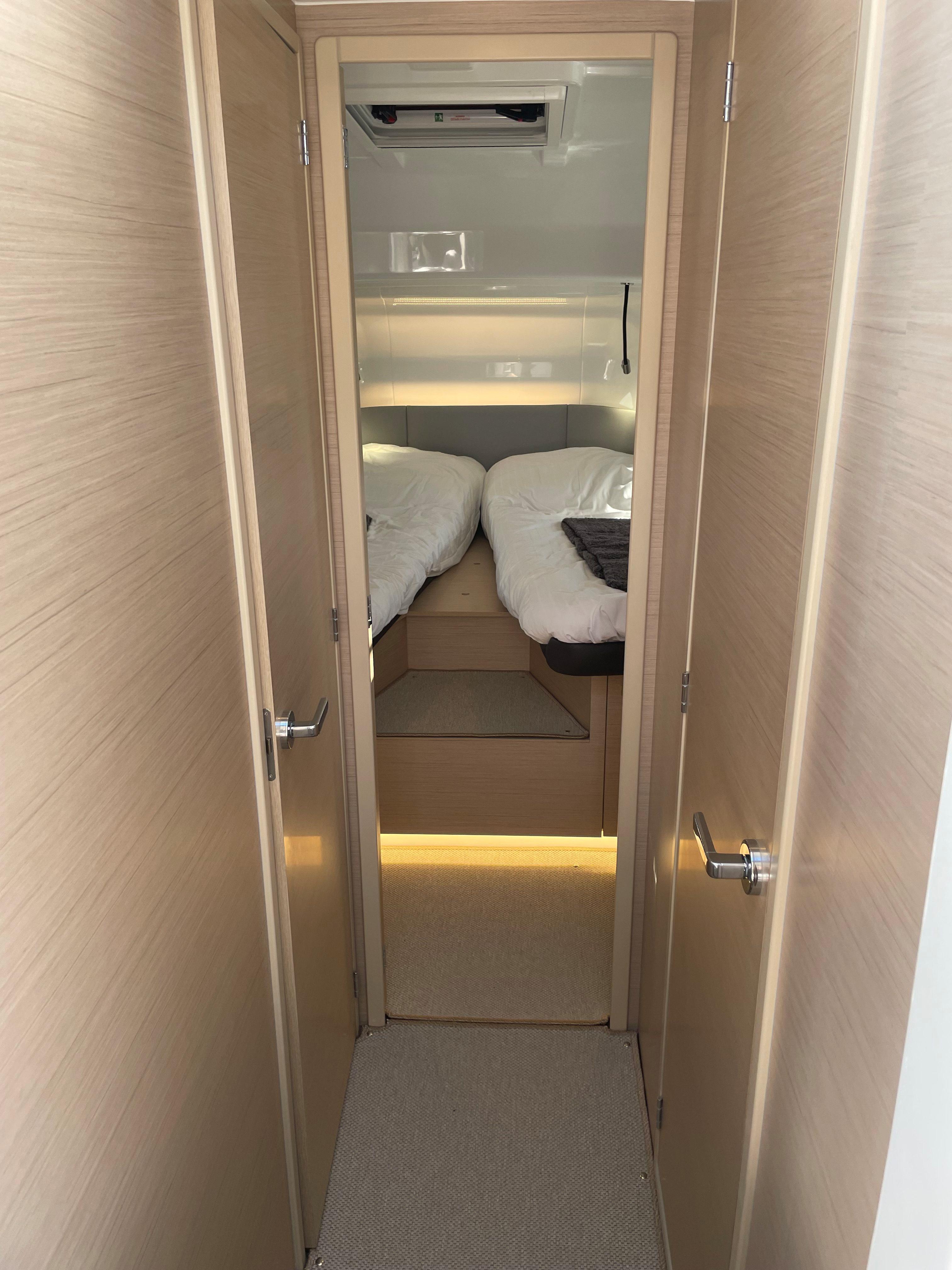

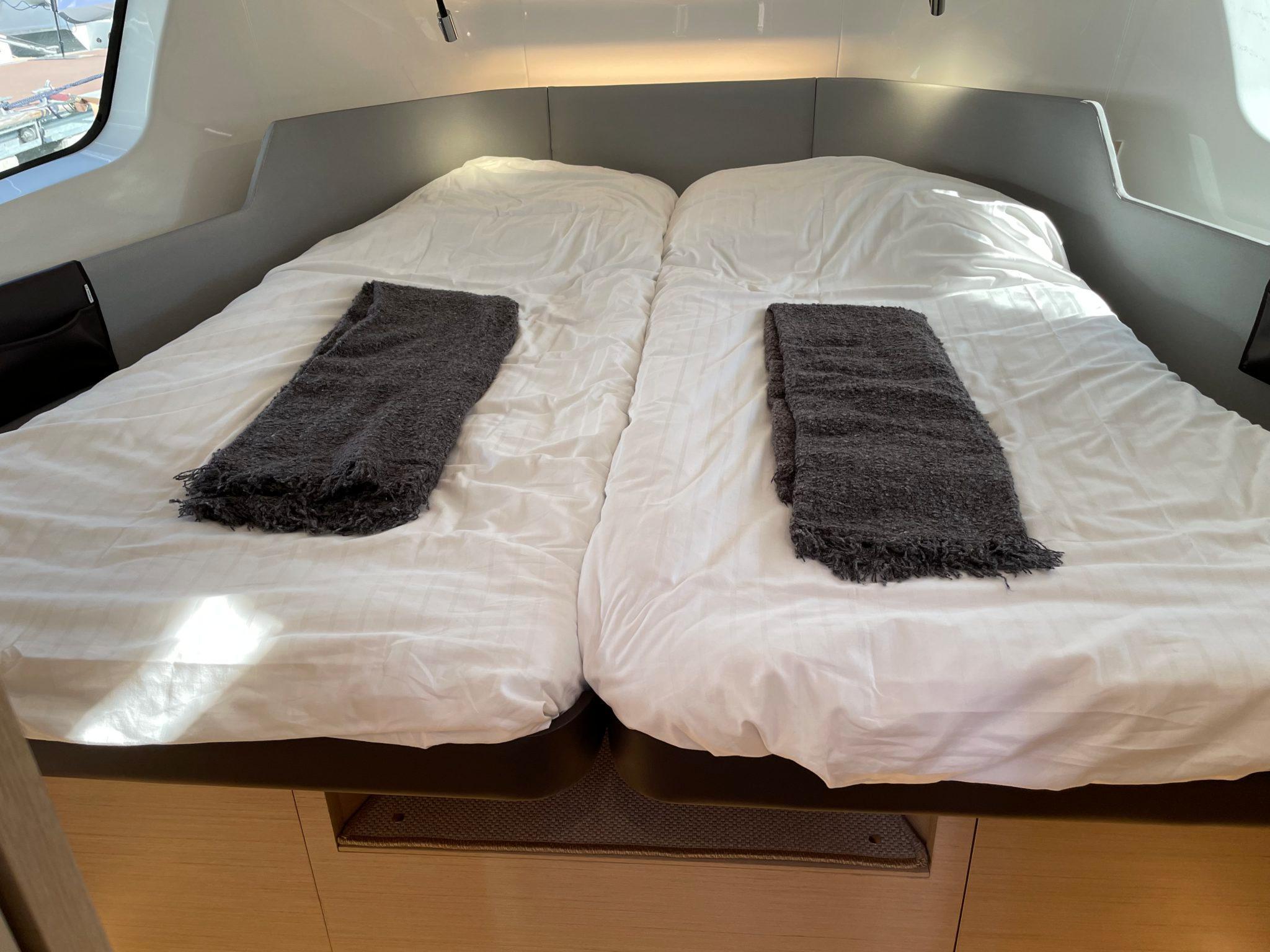

MASTER CABIN

• EU King size bed (2,00 x 1,60m)
• Mattress (thickness: 10cm)

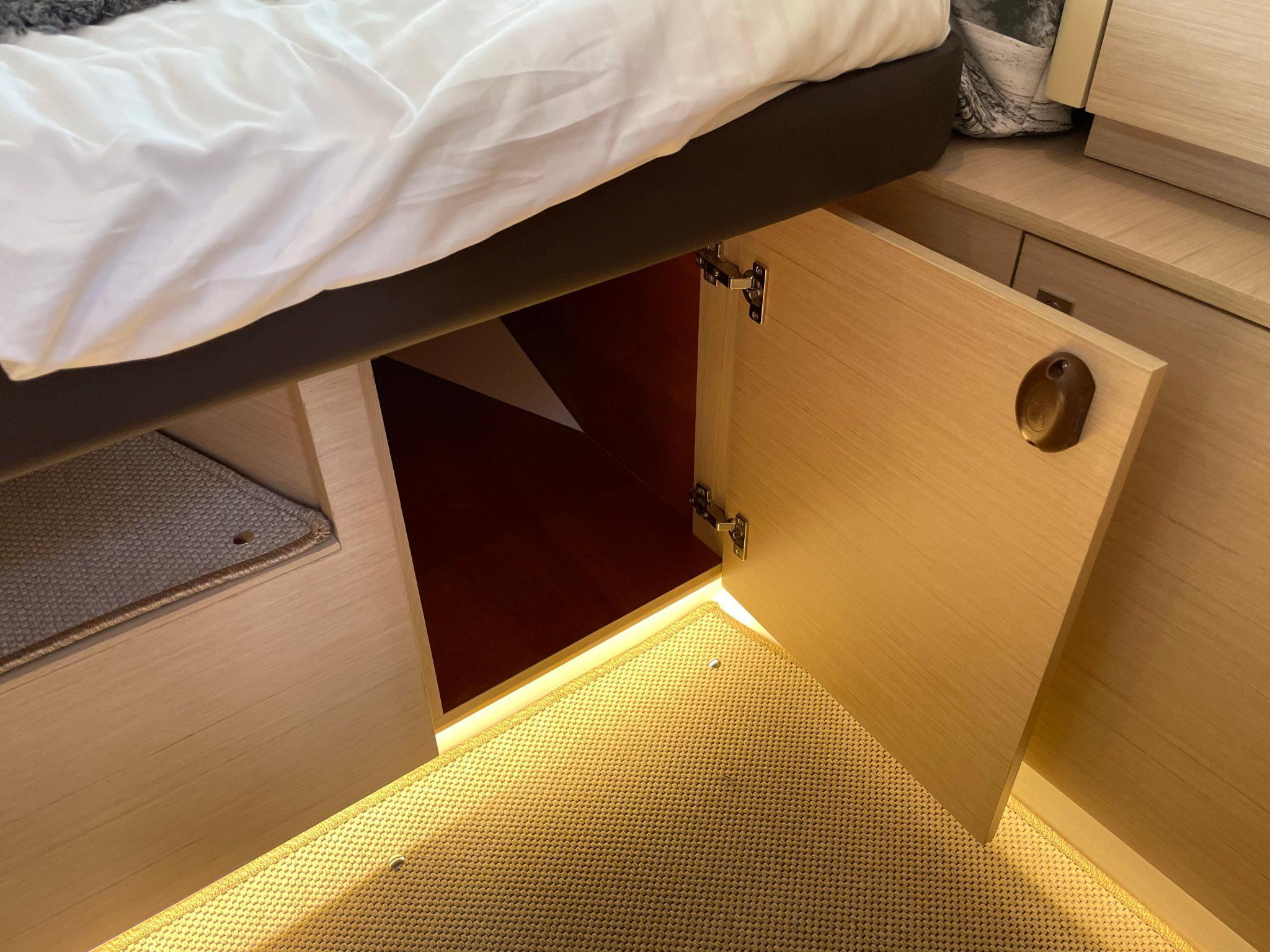

• 2x storage lockers under the berth
• Storage on both sides of the berth
• 2x hanging lockers
• 1x large opening hatch
• 2x large hull portlights
• Padded side panels
• Overhead light, LED
• 1x 230V socket

STANDARD IS A STUDY AREA

• 1x hanging locker
• Desk
• 1x large hull portlight
• 1x opening portlight in coachroof
• 2x 230V sockets
• Overhead lights, LED

ALTERNATIVE GUEST CABIN IF ORDERED

• EU French size bed (2,00 x 1,20m)
• Mattress (thickness: 10cm)
• Storage space under the berth
• 1x hanging locker
• 1x shelf along the hull
• 1x large hull portlight
• 1x opening portlight in coachroof
• Overhead lights, LED
• 2x 230V sockets

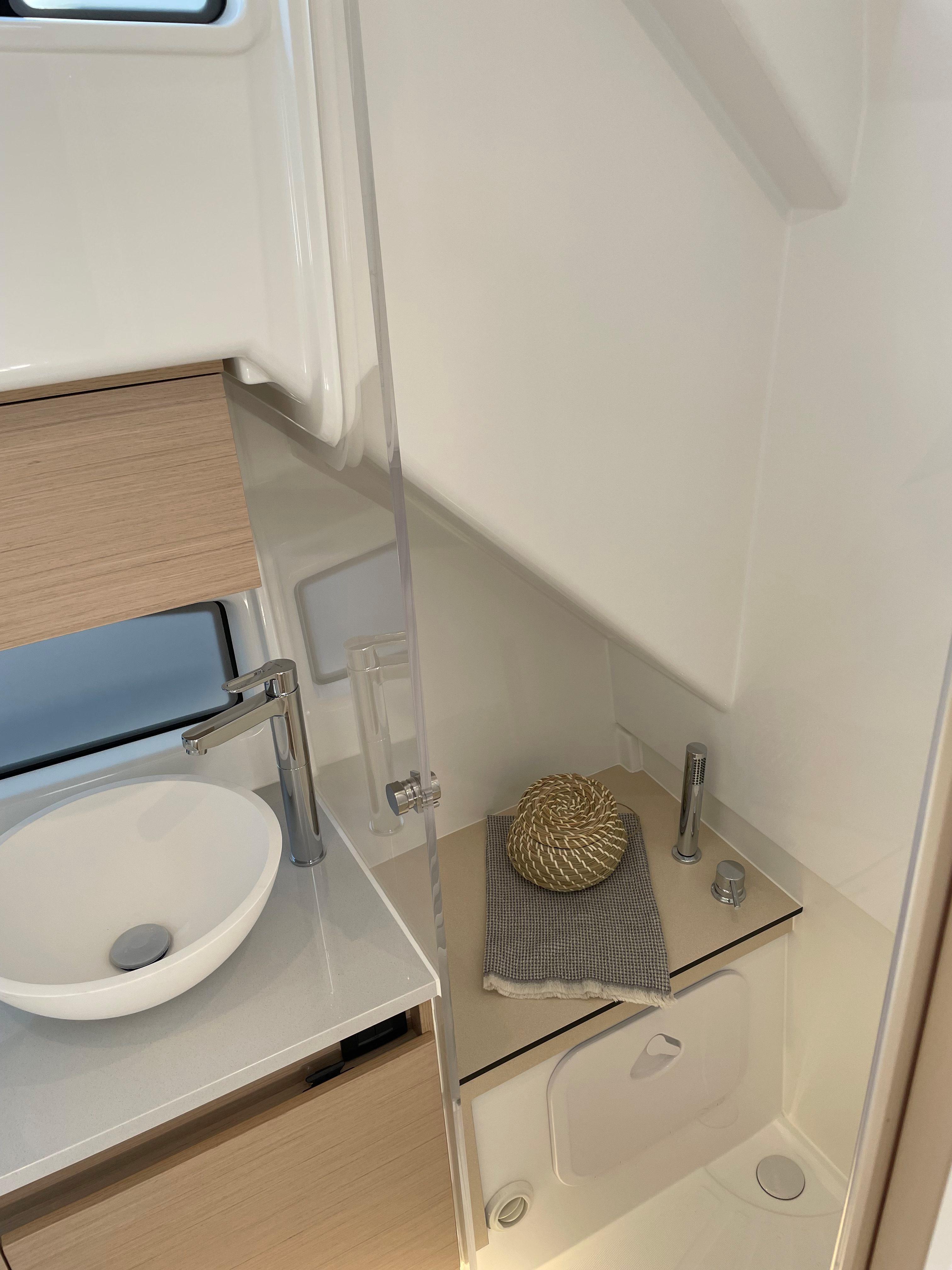

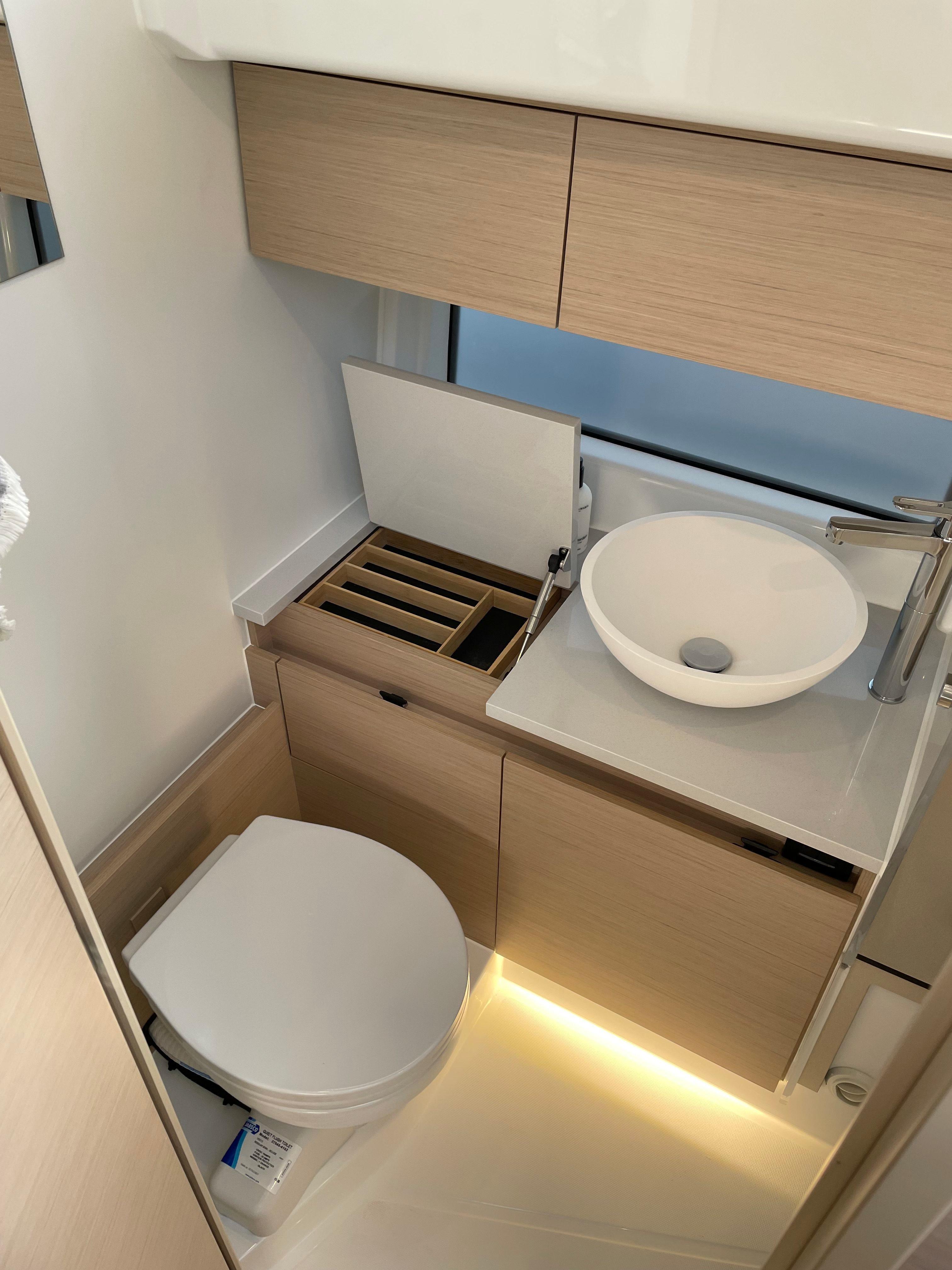

SHOWER/TOILET

• Mirror
• Worktop in composite “Nero black” material
• Ceramic washbasin incl. hot/cold mixing tap
• Storage cupboard
• Manual toilet
• Acrylic glass shower separator
• Pull-out shower head
• 1x hull portlight
• 1x opening portlights in coachroof
• 2x Overhead light, LED
• 1x 230V socket

ENGINE ROOM / PLUNMBING / ELECTRICS

• Shaft line propulsion
• Propeller
• Single diesel engine: Yanmar 4JH45 (33,10kW/45,00hp)
• Fuel filters
• Seawater filter
• Water separator
• Engine room soundproofed with high density foam
• Air intakes for engine hold cooling, on coachroof
• Fire extinguisher port
• Fuel tank deck filler
• Rotomoulded fuel tank, 285l
• Steering system: hung rudder, stainless steel
• Hydraulic steering
• Engine access hatch in salon floor
• Engine room light, LED
• 1x manual bilge pump in cockpit, 30l/min
• 1x electric bilge pump, 50l/min
• 1x fresh water pump for pressuring hot/cold water system
• Water tank filler on port
• Rotomoulded fresh water tank, 380l
• Rotomoulded black water tank, 170l
• Multicolour 3,5”display (indicator of battery voltage, level gauges for fresh water, waste water, fuel, etc,..)

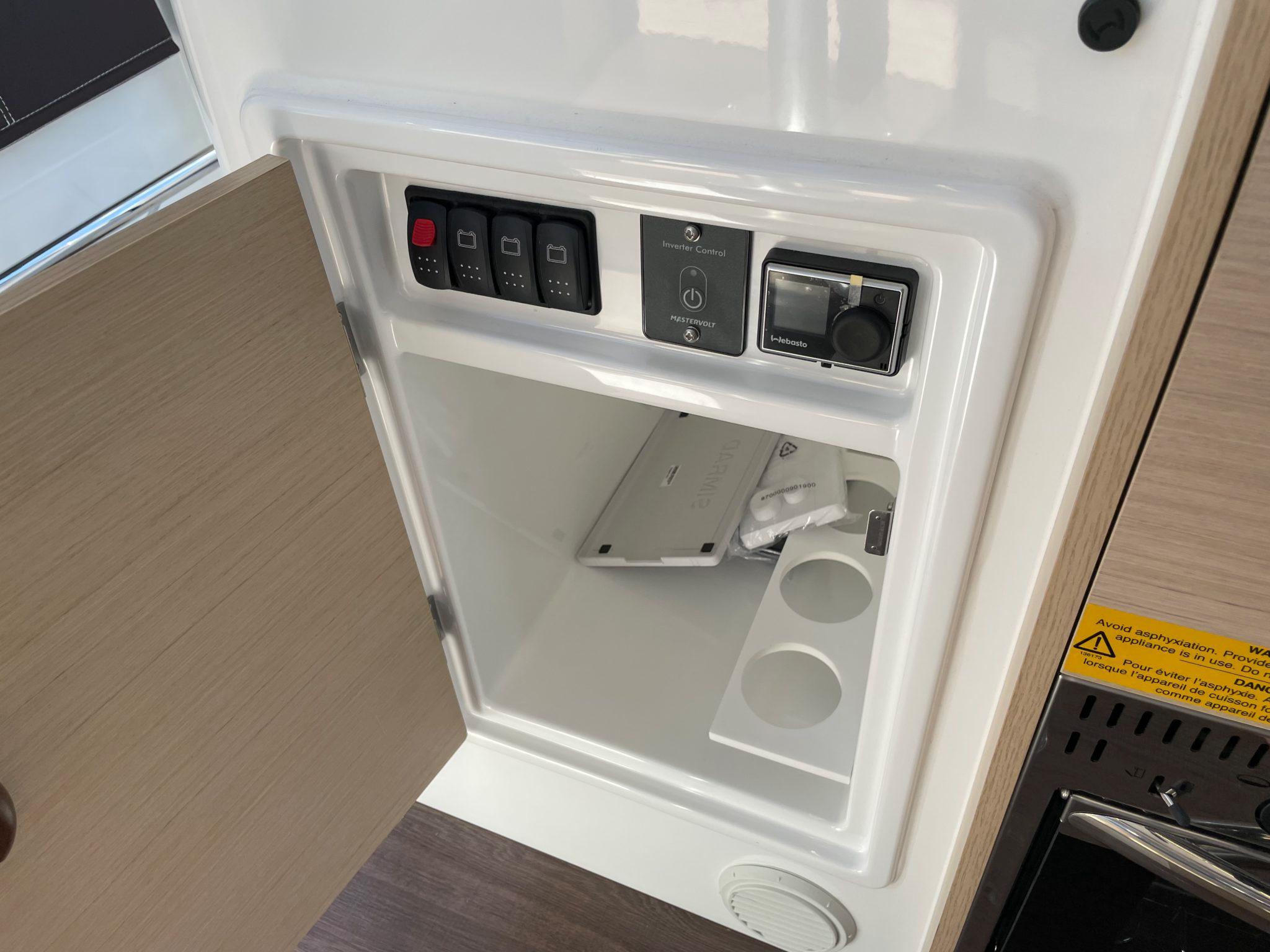

• Main electric switches, at dashboard
• 1x engine battery, AGM, 130Ah
• 2x service battery, AGM, 95Ah
• Battery charger, 230V/12V/40A
• Shore power socket, 230V/32A

• Diesel – Yanmar 4JH110, 110hp/80,90kW, shaft drive
• Version 3: Walnut interior incl. Grey oak style laminated floorboards – 2 cabins, 1 bathroom incl. walk-in shower
• “Carbon” upholstery collection

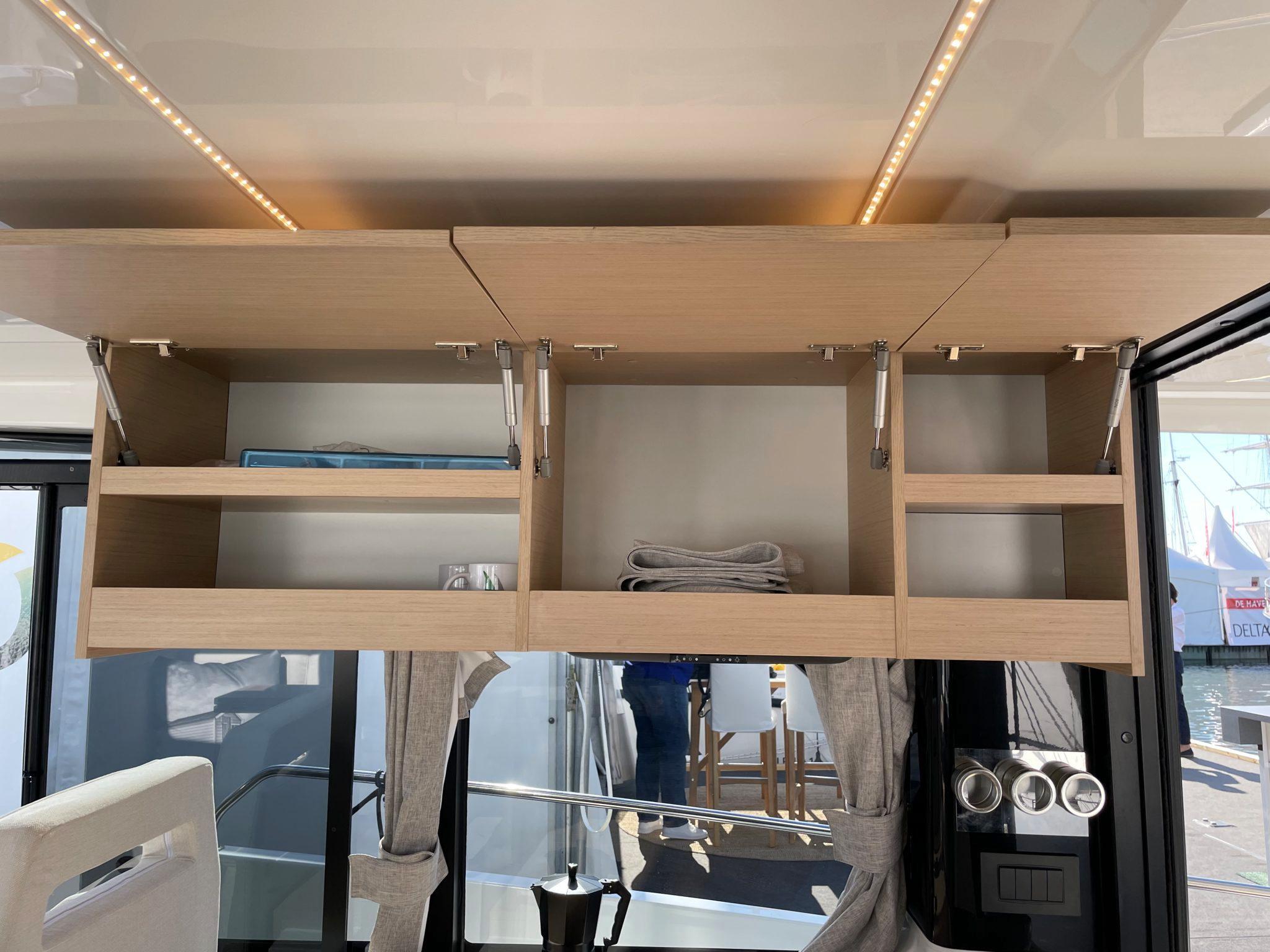

• Lounge Trim Level Pack 2023 Anchor bow roller, stainless steel 2x midship cleats Mooring kit (4x mooring line incl. 6x fender)1x additional service batteries, AGM, 95AhWater heater, 40l Electric toilet, fresh water flush Indirect lighting in salon and cabins Courtesy lights in cockpit and catwalks sockets in salon and cabins1x additional windshield wiper on port, electric Curtains in cabins Curtains in salon Horn Shore power cable, 15m, 2x transom mooring cleats for cross docking1.000W electric windlass Shore fresh water supply Hot & cold shower at transom Pleated shades in cabins (instead of curtains)Mosquito nets on portholes Navigation maps storage Storage sleeves in cabins 12V/230V, 700W inverter Sink cover in galley Overhead storage locker in galley Extractor hood in galley Spice rack organizer in galley Fusion MS-RA70N unit with bluetooth incl. 2x interior, 2x cockpit speakers.
• “CARBON” BOW LOUNGE PACK 2023 Bow lounge cushion “Carbon” incl. 4x cup holders Bow lounge area awning, black incl. 2x poles and sockets
• “Coastal” anchoring kit (“Delta” type galvanized anchor, 10kg incl. 30m, 8mm galvanized chain)
• Windlass control from helm position incl. chain counter – only with trim level
• Bow & stern thruster system incl. battery bank, totalling 200Ah
• Composite steering wheel
• Composite steering wheel

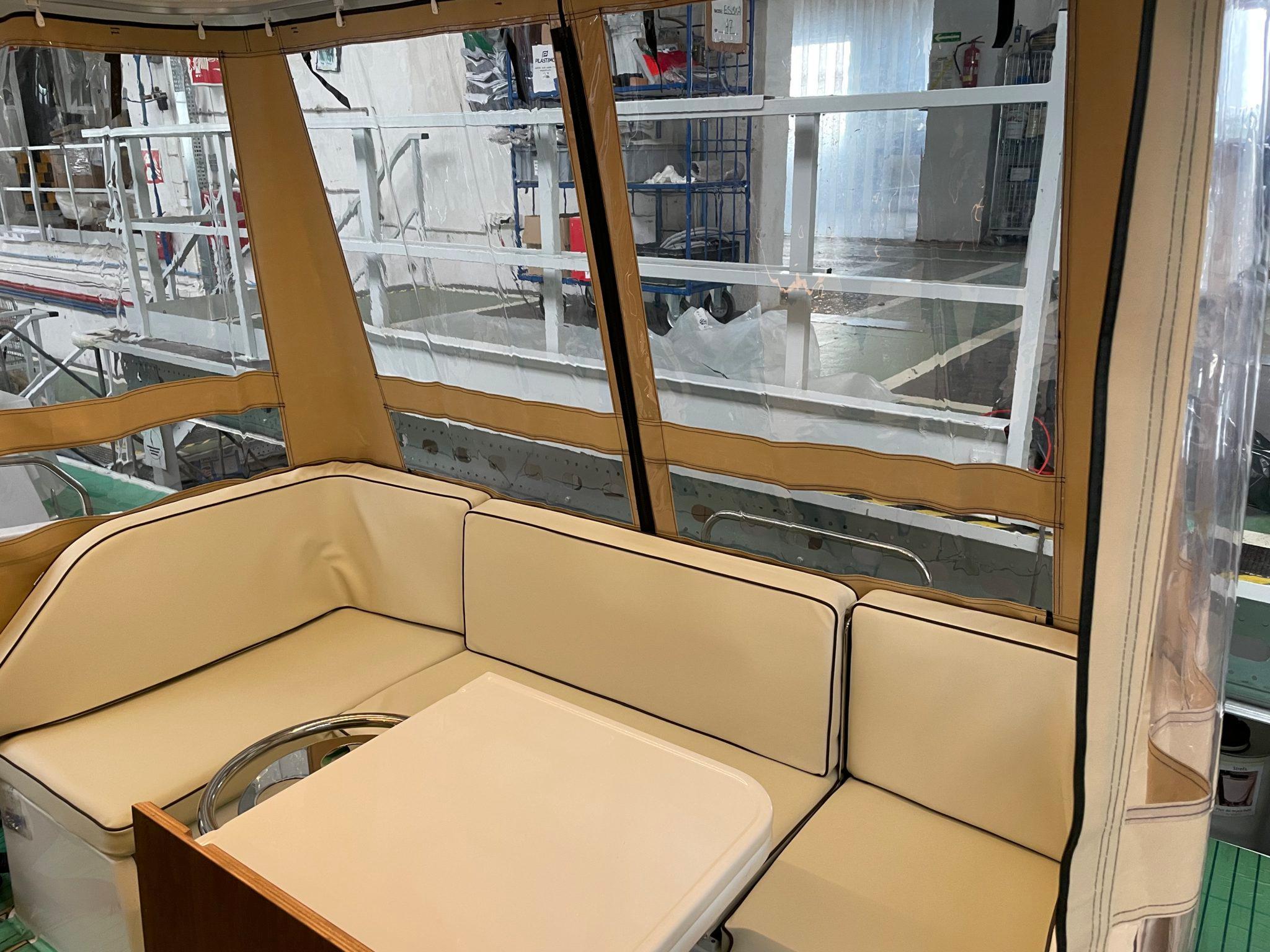

• Complete cockpit enclosure system “Silver”
• Removable cockpit table
• Roof racks
• Cockpit cushions “Carbon”
• Folding cockpit bench backrest system “Carbon”
• Search light with remote control
• Gas oven

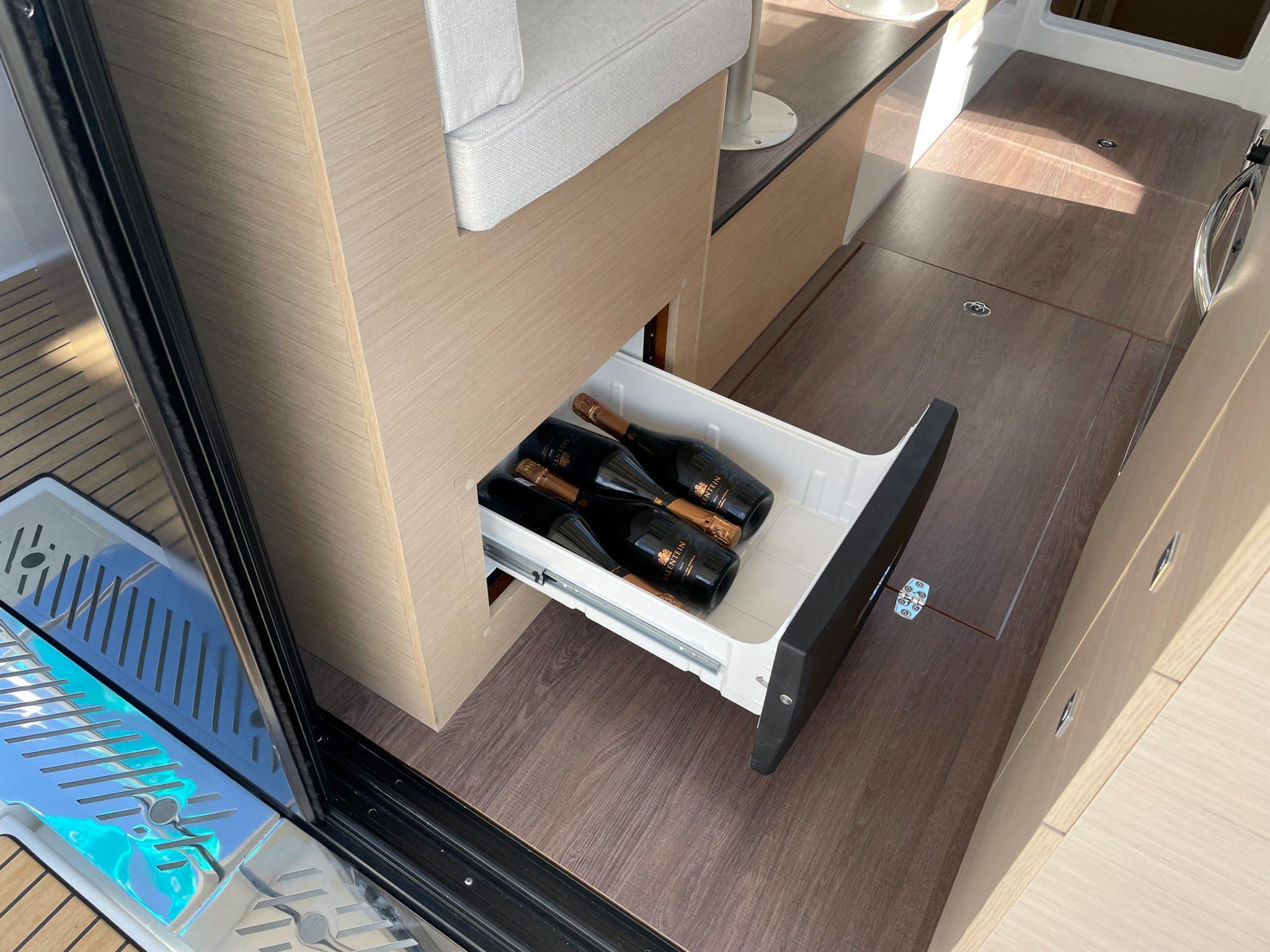

• Drawer fridge, 30l in salon
• Diesel forced air heating incl. outlets in salon, cabins, bathroom and windshield – not possible with electric propulsion
• Salon double bed conversion kit
• Pre-cabling kit in bow cabin

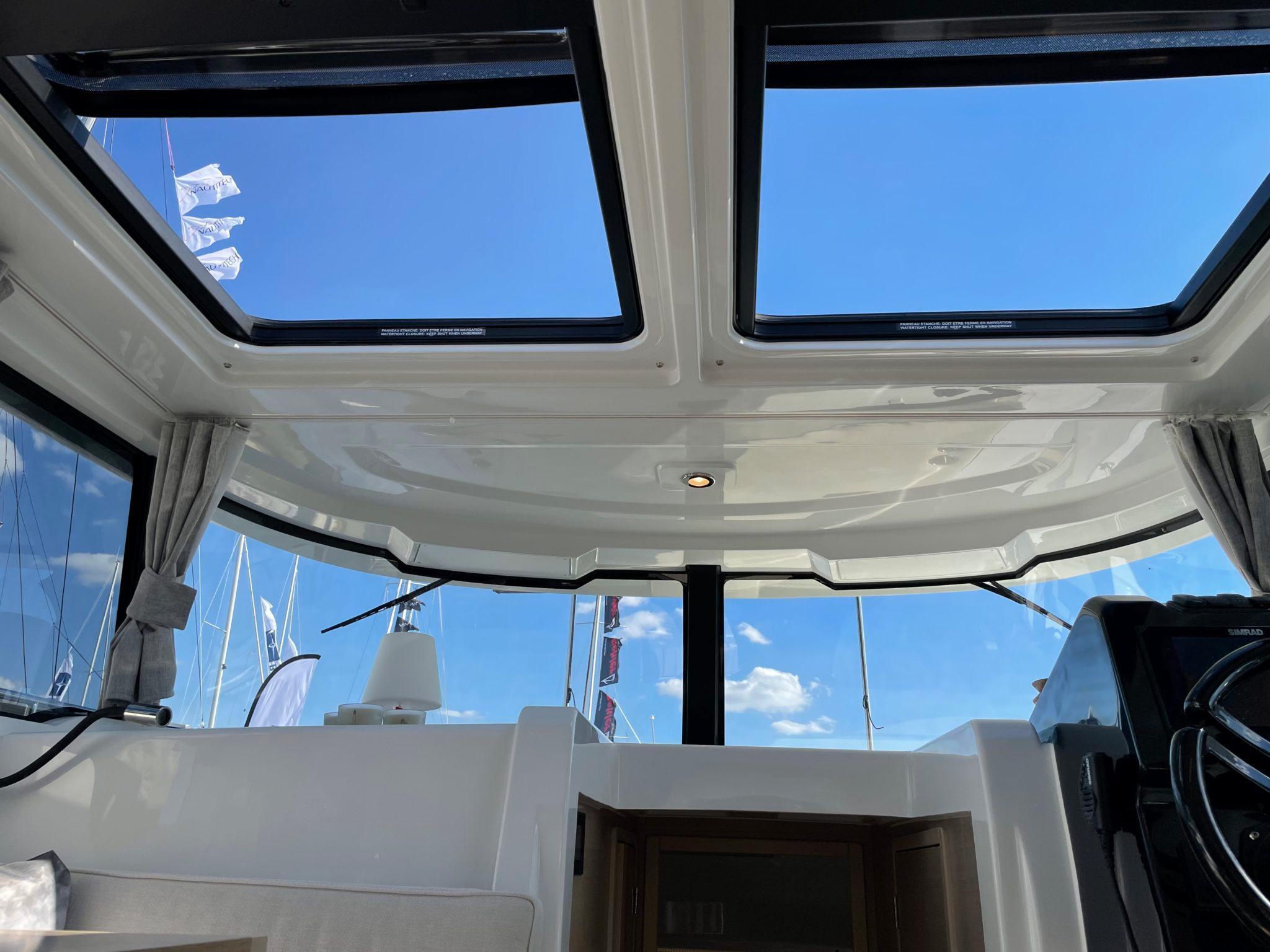

• 2x large sliding hatches in salon, electric
• “Silk grey” lacquered finish on hanging lockers door in cabins and overhead locker in bathroom
• Synthetic teak cockpit and partial catwalks to the stairs
• Synthetic teak bathing platform

For further information and viewing arrangements please see Broker contact details below.
