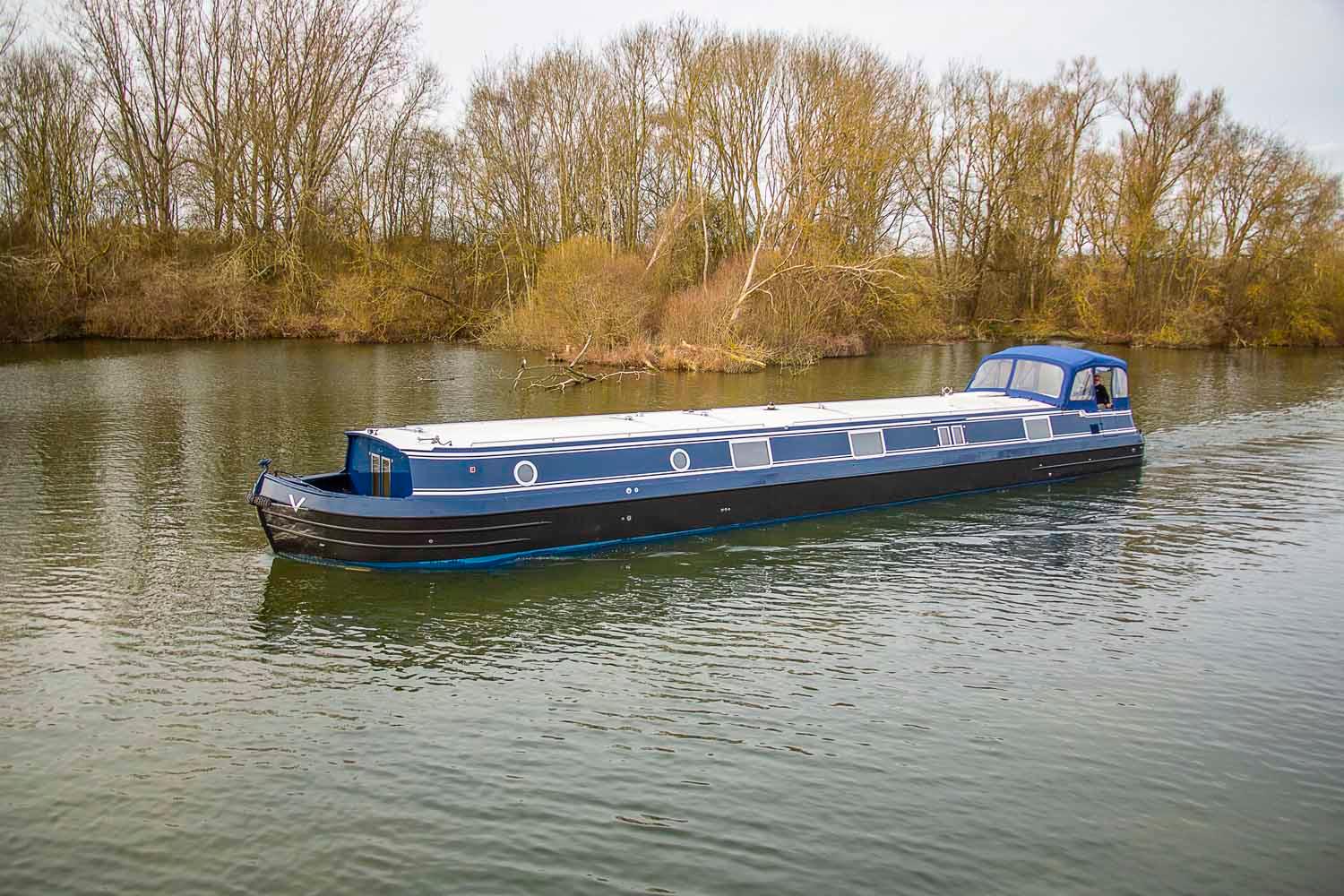

GENERAL HULL SPECIFICATION:
· 10mm base/6mm hull / 5mm cabin sides / 5mm roof
· Integral steel water tank – approx. 350 gallons
· Diesel tank – approx. 150 gallons
· Wrap-around stern with doors and seat lockers
· Front forepeak ballasting tank, two-side ballast trimming tanks
· Stern gas locker accommodates two gas bottles
· 50×12mm rubbing strakes
· Bollards, T-stud, fender fittings fore, sides and aft, central mooring ring, pair of fairleads
· 4x 4.5kg magnesium anodes fitted
· Integral roof handrails
· Chrome mushroom vents, plank and pole rack, tiller bar
· Steel front doors with double glazed windows
· Steel rear doors with sliding hatch
· 3’ side hatch doors with double glazed windows
· Double glazed windows: 5x 36”x21”, 4x 15” portholes
· 18mm water resistant plywood base flooring
· Interior fully battened and spray foam insulated
· Hull sides lined in “A” grade birch plywood painted in white
· Cabin sides and ceiling lined in “A” grade birch plywood painted in white
· All wooden bulkheads, and furniture made of ash blockboard
· Hardwood trims
PAINTWORK
· Hull with base plate sandblasted and primed using a two-pack epoxy system
· Bottom finished in a two-pack synthetic epoxy tar paint
· Hull above waterline finished in black polyurethane with anti fading UV filter
· Cream Slip-resistant finish surface on all decks, roof and gunwales
· Cabin top finished in blue high-gloss automotive paint, 2 colours
ENGINE AND STEERING
· Beta 60hp 4 cylinders keel cooled engine, 45A & 175A alternators
· Flat bottom cooler with self-bleeding system
· 3-blade propeller
· Gland packing shaft seal
· Centaflex flexible coupling
· Dry exhaust
· Analogue diesel tank gauge
· Automatic bilge pump connected directly to Vetus AGM deep cycle engine starting battery
· Vetus 95kgf electric bow thruster, 200Ah Vetus AGM deep cycle batteries, Victron battery charger
SANITARY AND SEWAGE WATER
· 75 litres twin-coil calorifier with immersion heater
· Vetus hydrophore water pump with 19L accumulator tank
· Diaphragm shower pump
· Vetus pump-out toilet system with electric toilet and 215L waste holding tank
· Waste and water tank analogue gauges
HEATING AND GAS
· Webasto TT Evo 5 kW central heating system, Heatmiser programmable thermostat
· 3 modern style radiators
· Heated towel rail
· Gas regulator with manual changeover kit for 2 bottles, Bottles To be sourced by buyer
· Alde gas leak detector
230V AC
· RCD Consumer Unit
· 16A landline socket
· 6 stainless steel double sockets, including 3 with USB charging ports
· Victron MultiPlus 3000W/120A Inverter/Charger
· Victron Galvanic Isolator
12V DC
· 660Ah Vetus AGM deep cycle leisure battery bank
· Manual battery switches for all battery banks
· Blue Sea main distribution panel
· Blue Sea water-resistant panels for LED tunnel light, LED navigation lights, horn and bilge pump
· Victron Smart Battery Monitor
· Victron Battery Protect
· 21LED ceiling spotlights, stainless steel light switches
· Engine room light
· Provision for solar panels
· 12V cigarette lighter socket
MEDIA
· 2 TV sockets, UHF TV/FM aerial with signal strength booster
MOORING AND SAFETY EQUIPMENT
· 3 bilge pumps
· 3 fire extinguishers
· Fire blanket
· Bubble gas leak detector
· CO2 detector
· Smoke alarm
· Bow, stern and side rope fenders
· 3 mooring ropes
· 3 mooring pins
· Hammer
· Telescopic pole
· Lock key handle windlass
· Pump out key
· First aid kit
· Mains hook up lead
ACCOMODATION

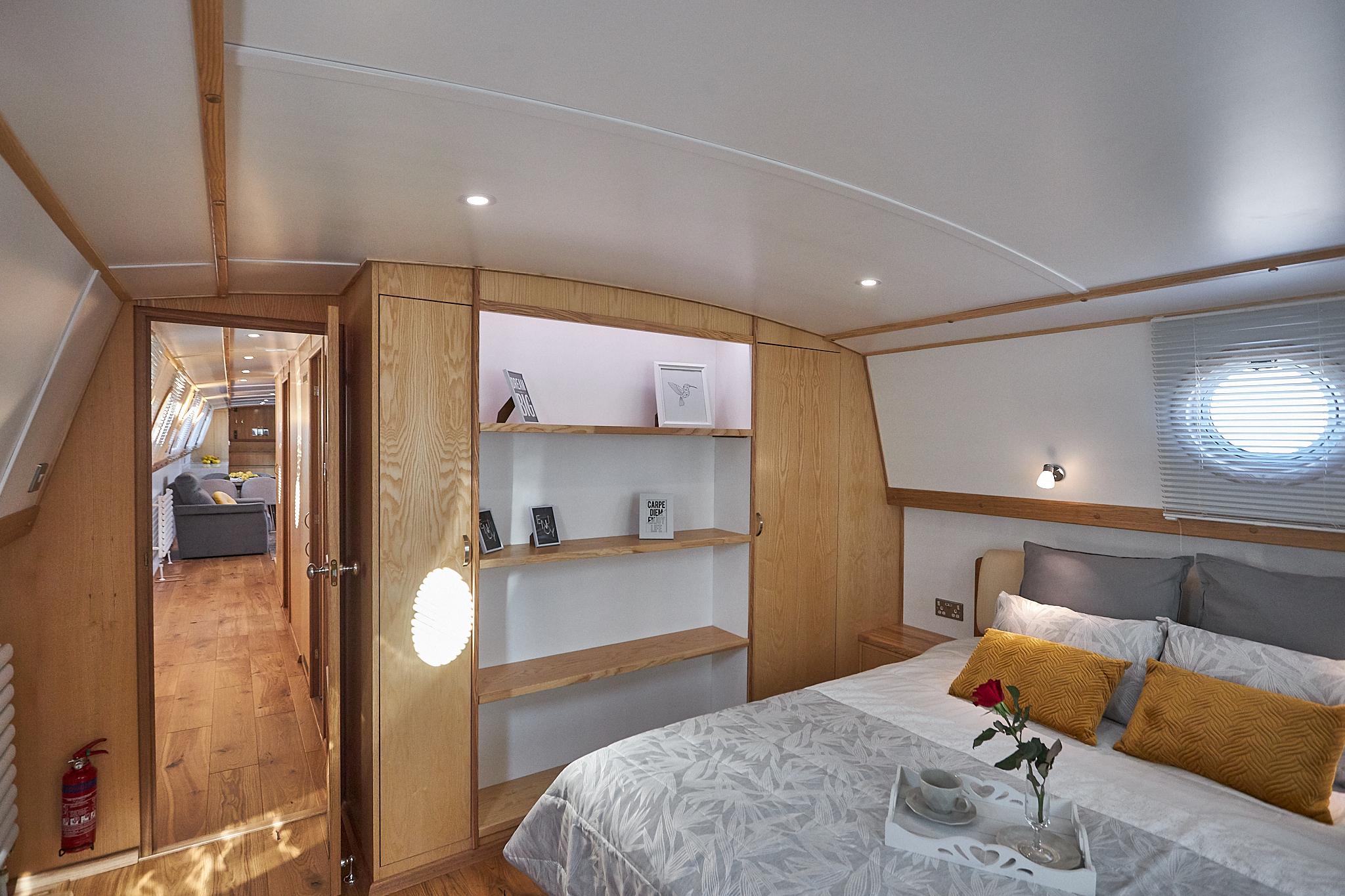

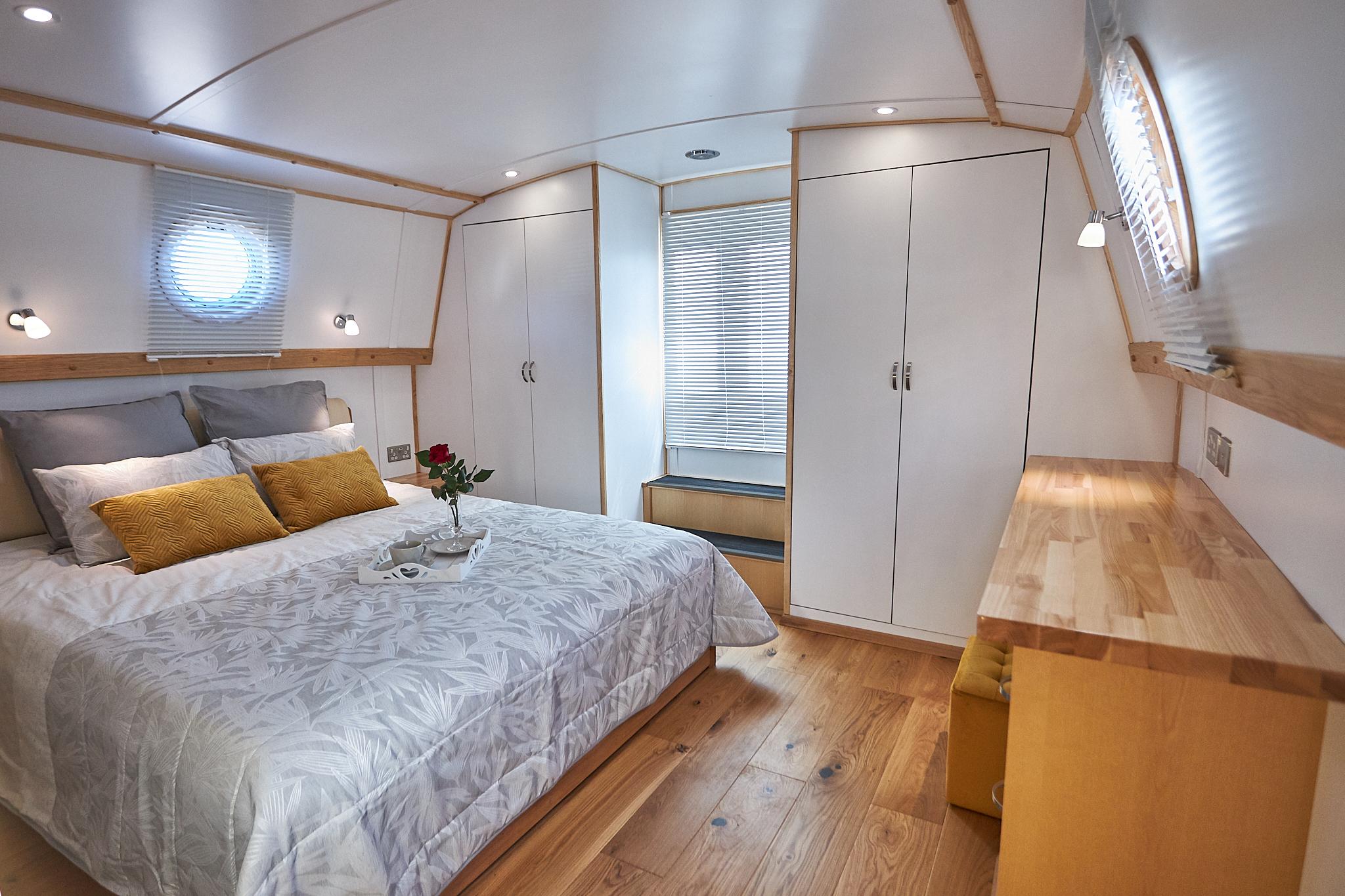

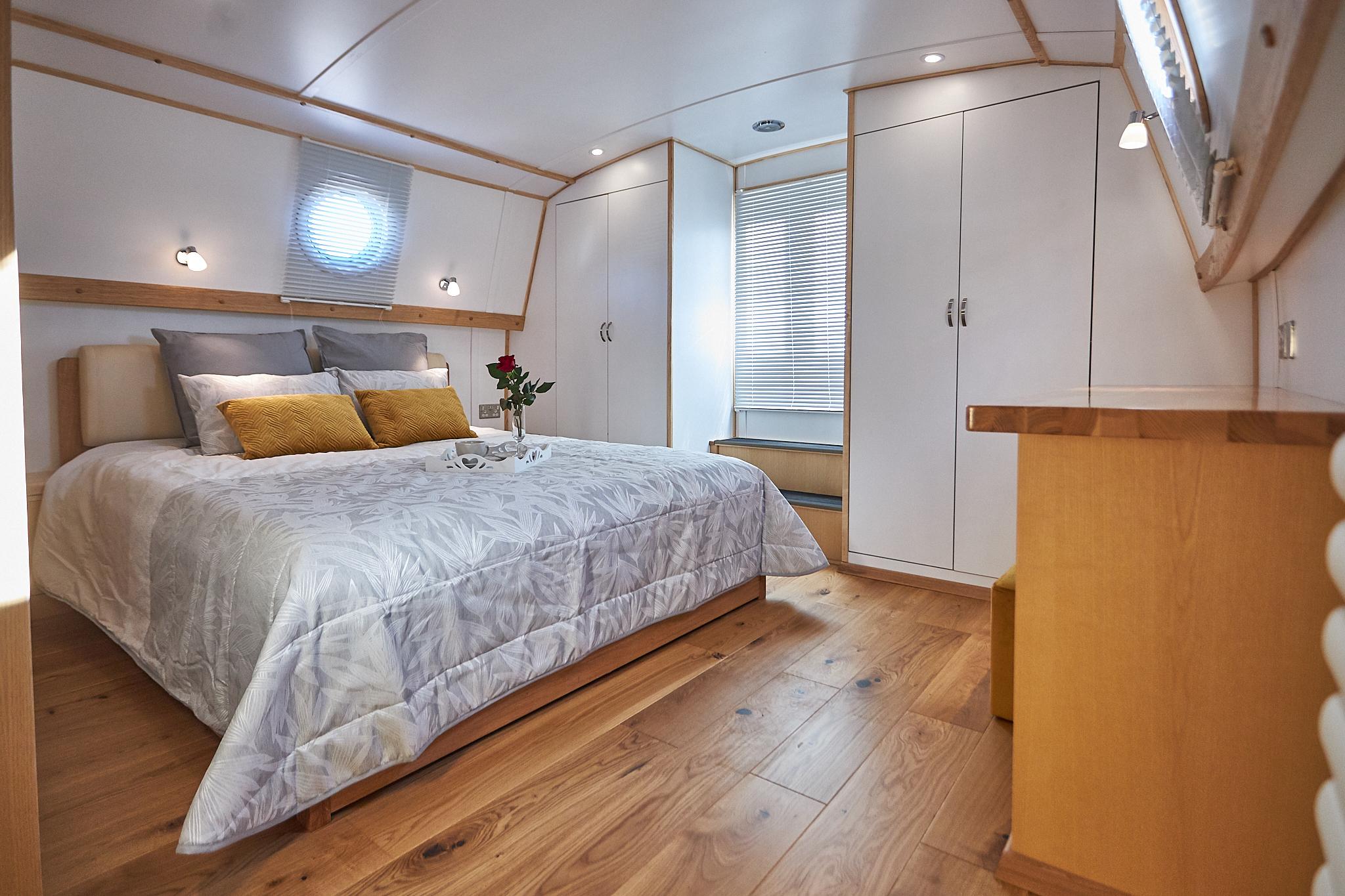

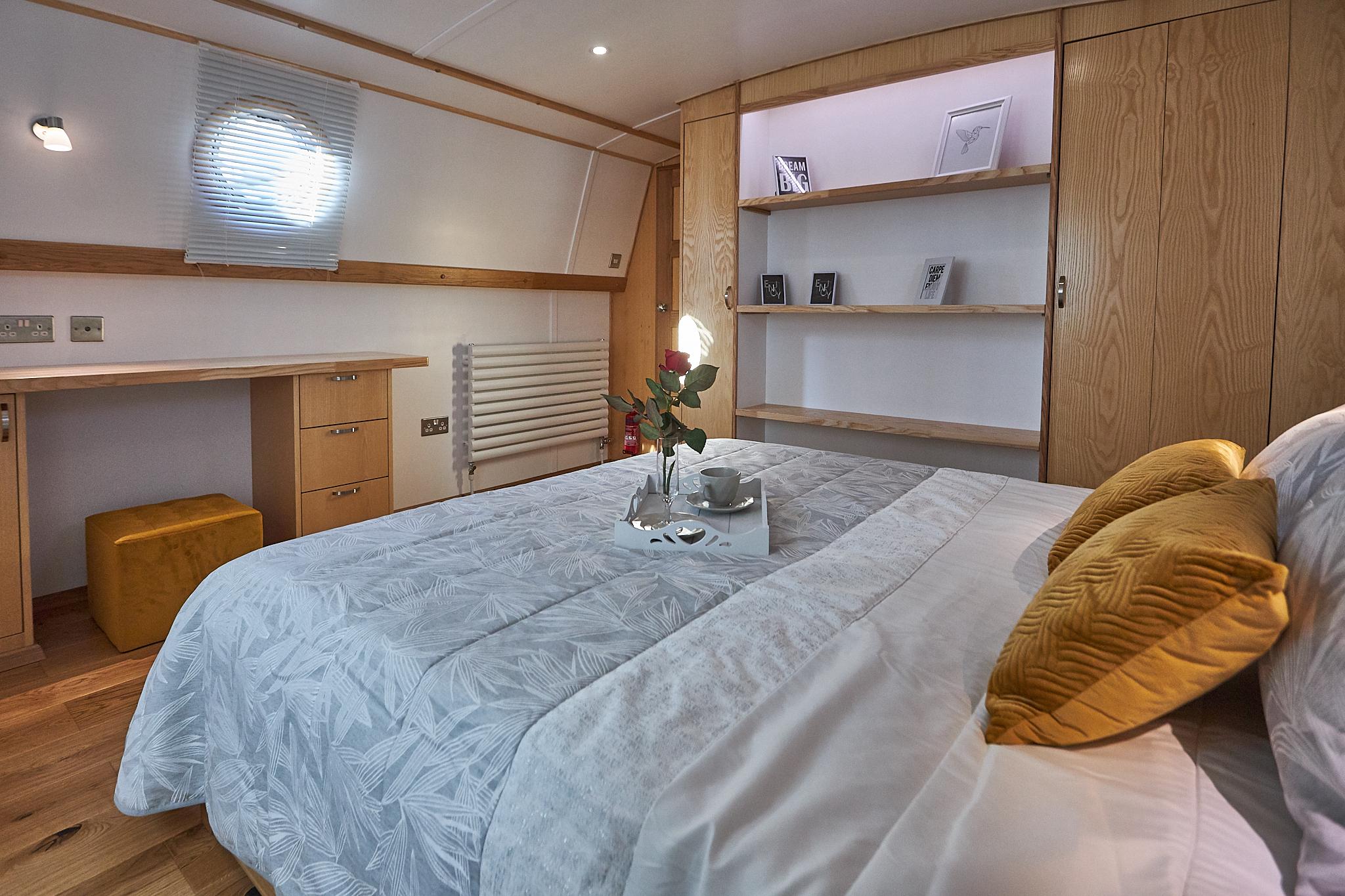

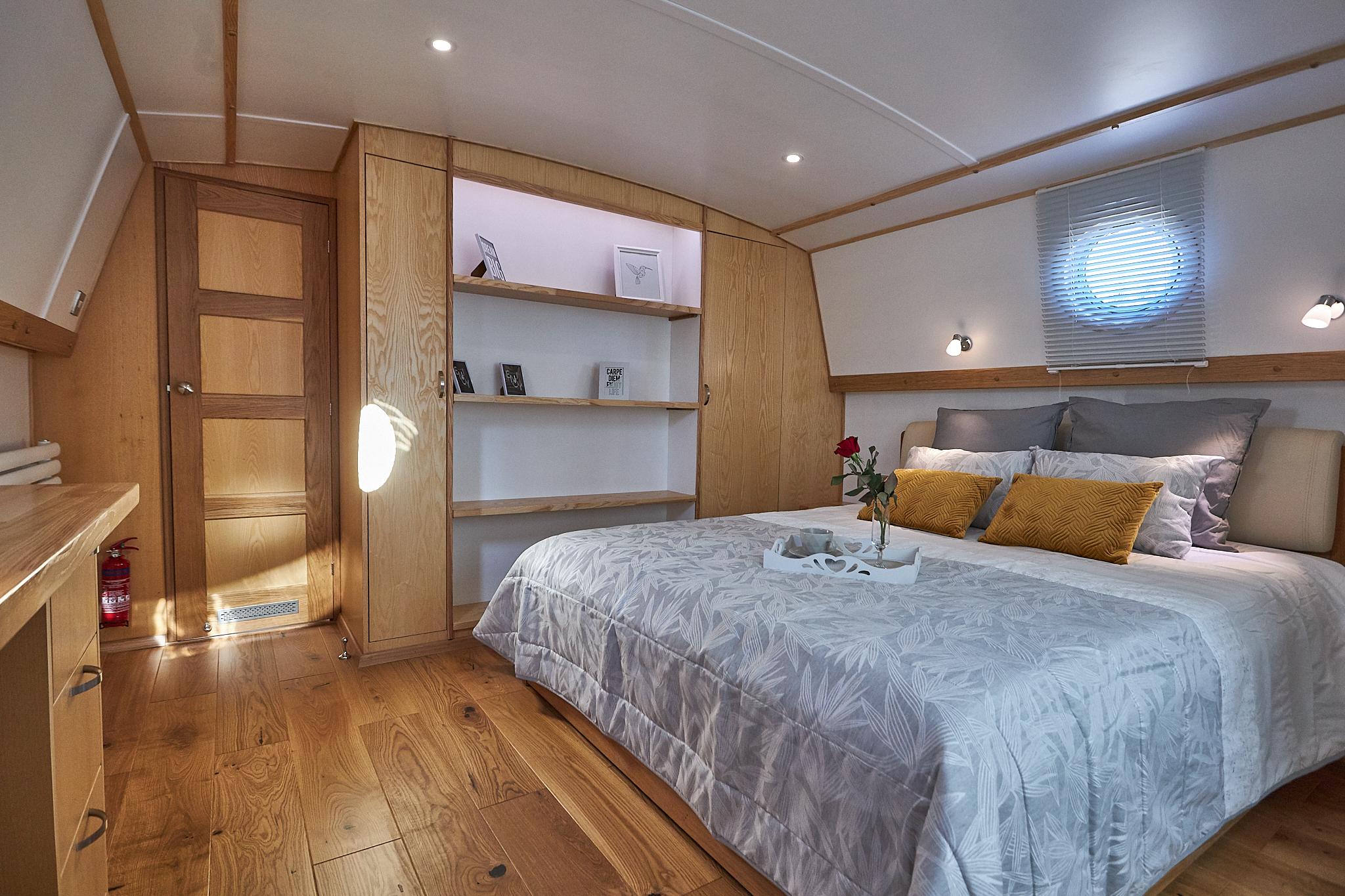

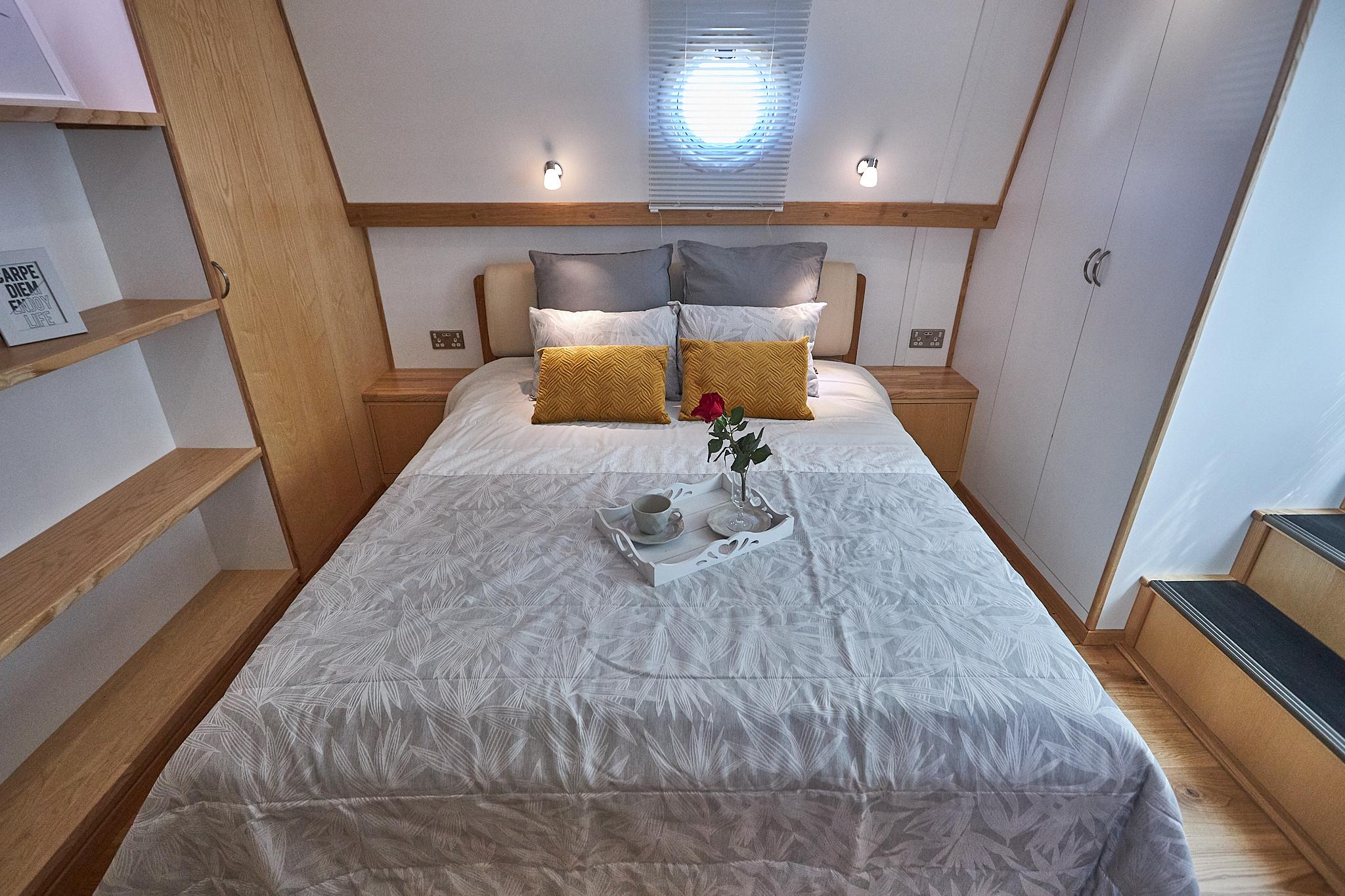

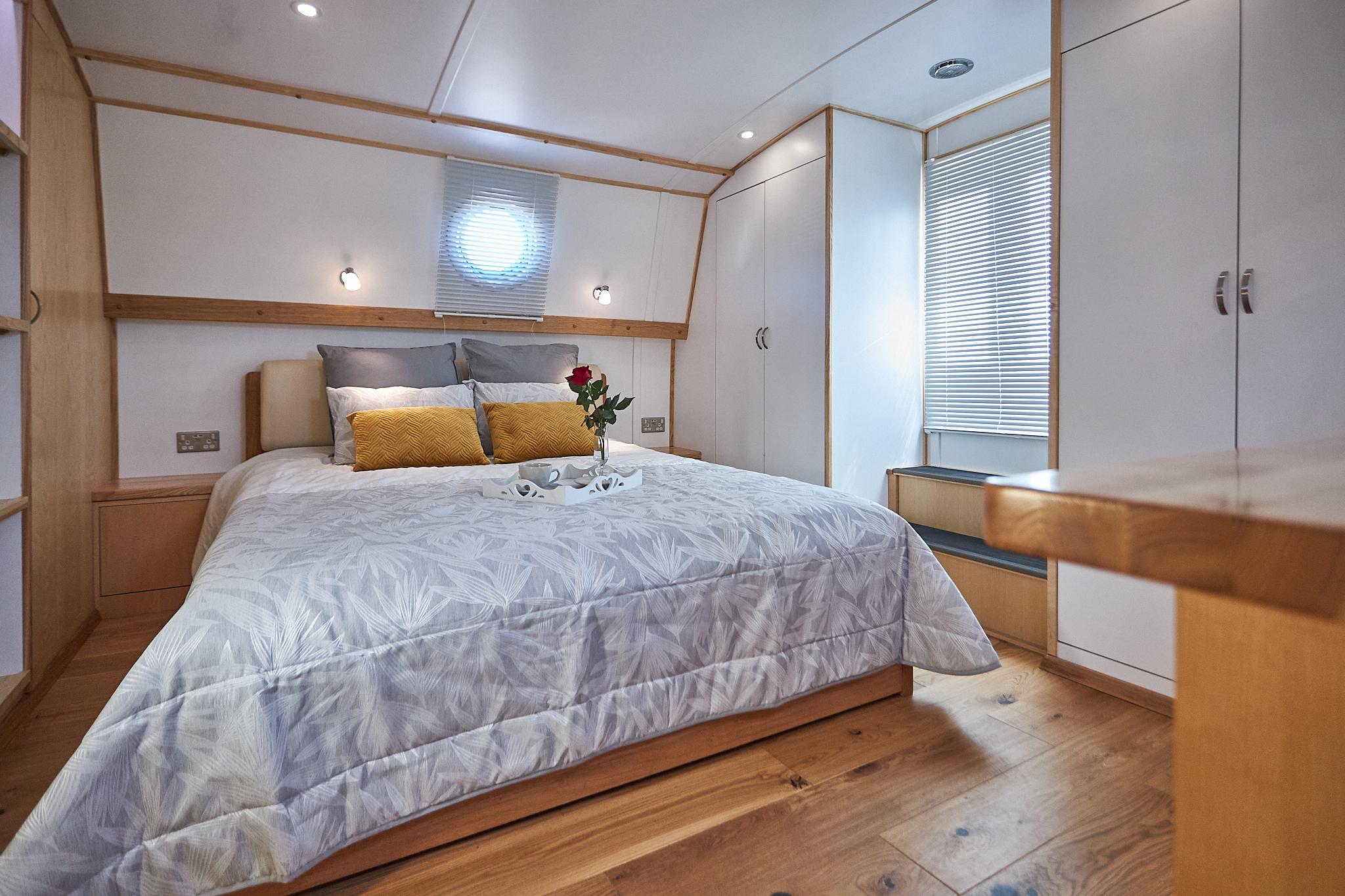

BEDROOM
· Step to the foredeck with storage space
· 2 full height corner wardrobes
· Makeup desk with storage units
· Lift-up double bed 140x200cm, high-quality pocket sprung mattress
· Bedside tables
· 2 LED reading lights
· Full-height wardrobes by the partition wall

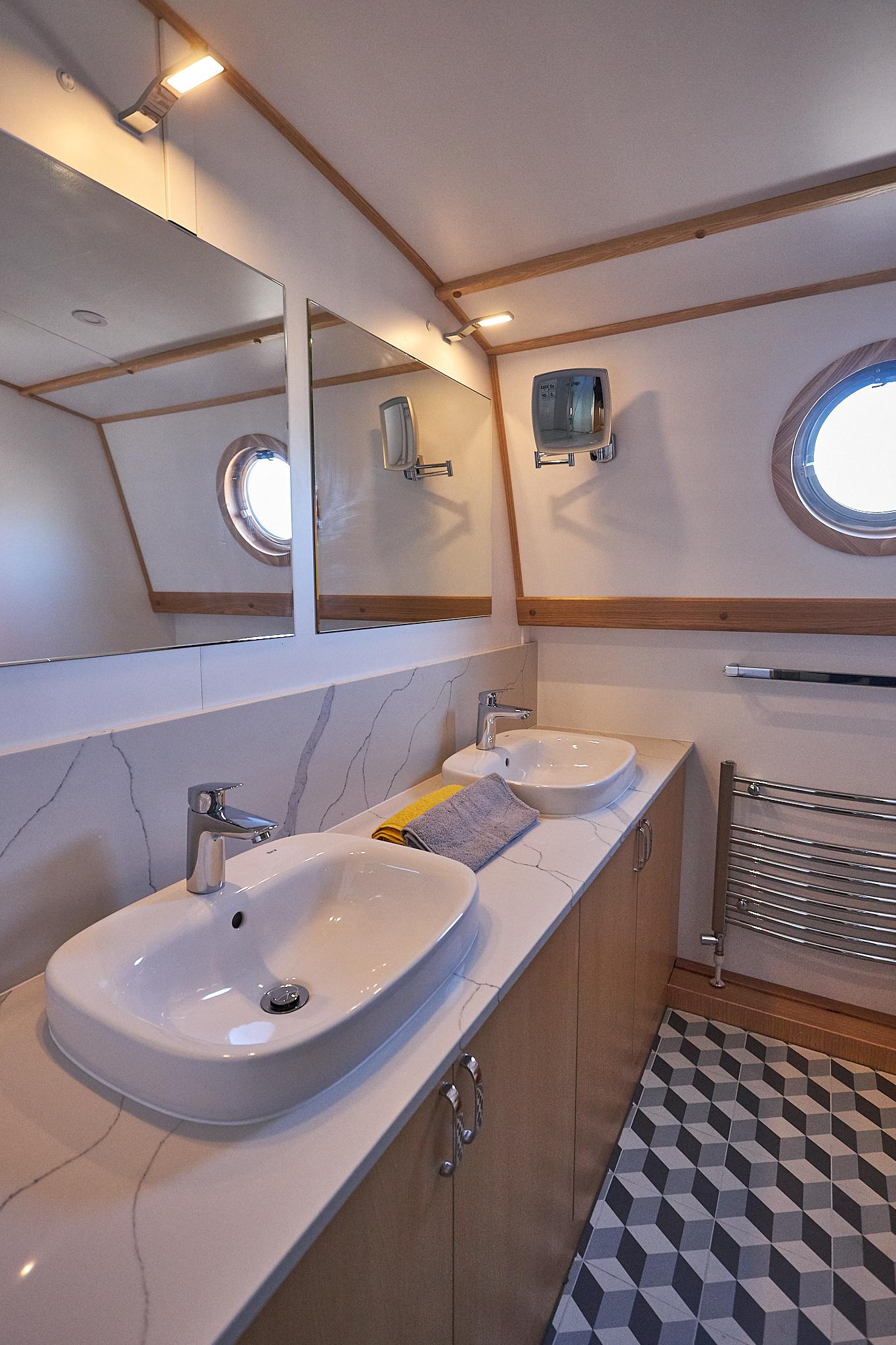

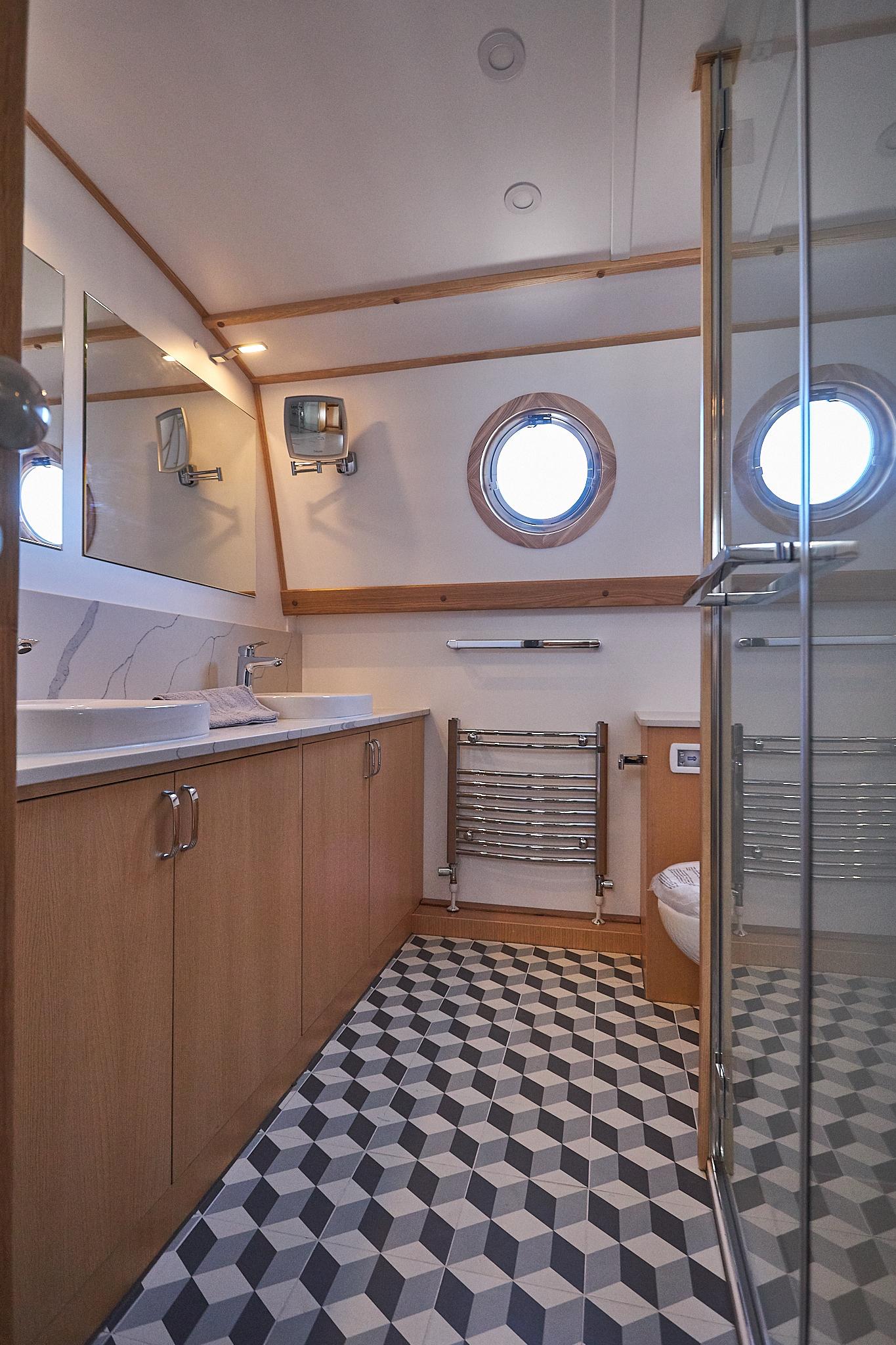

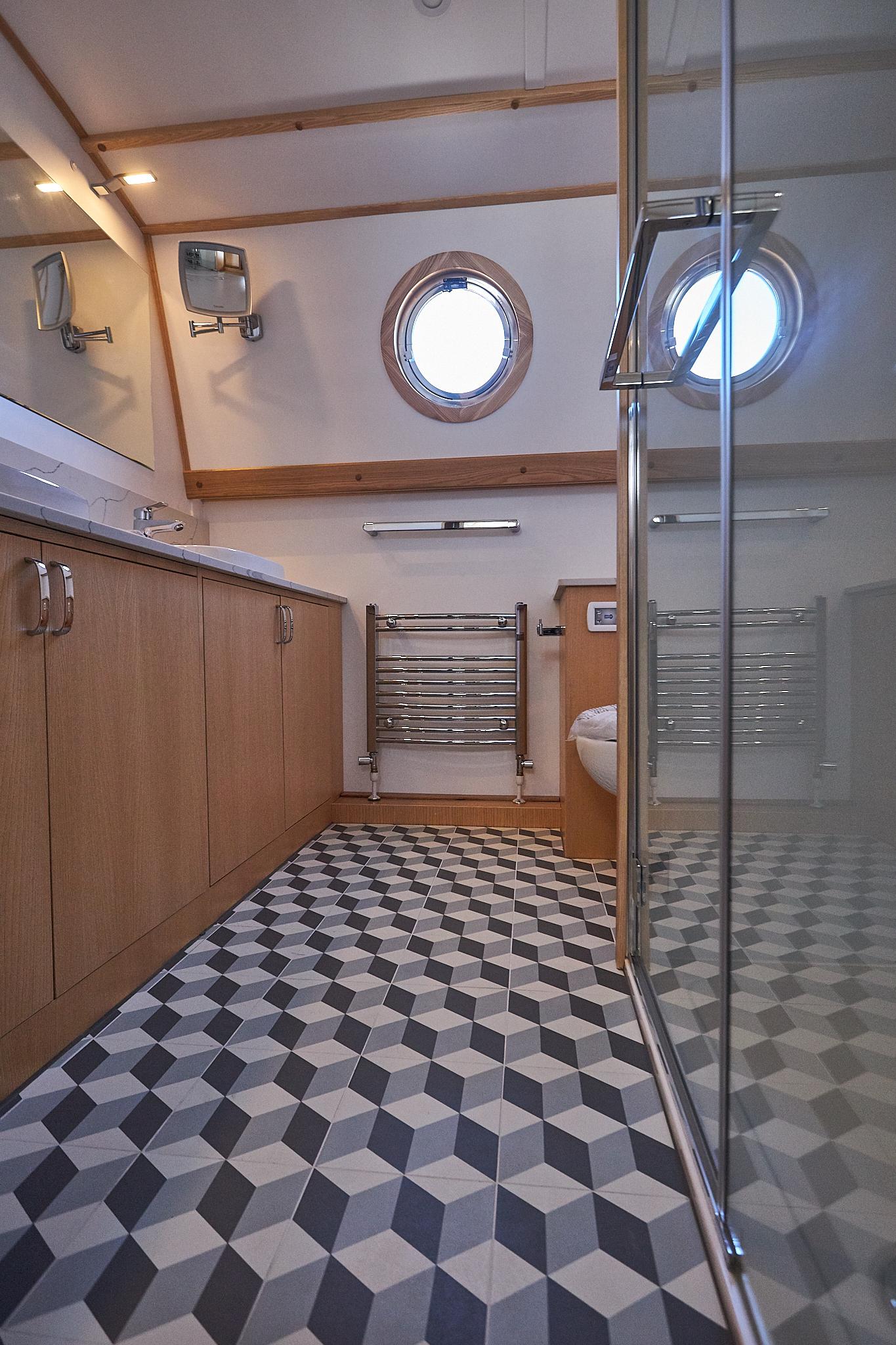

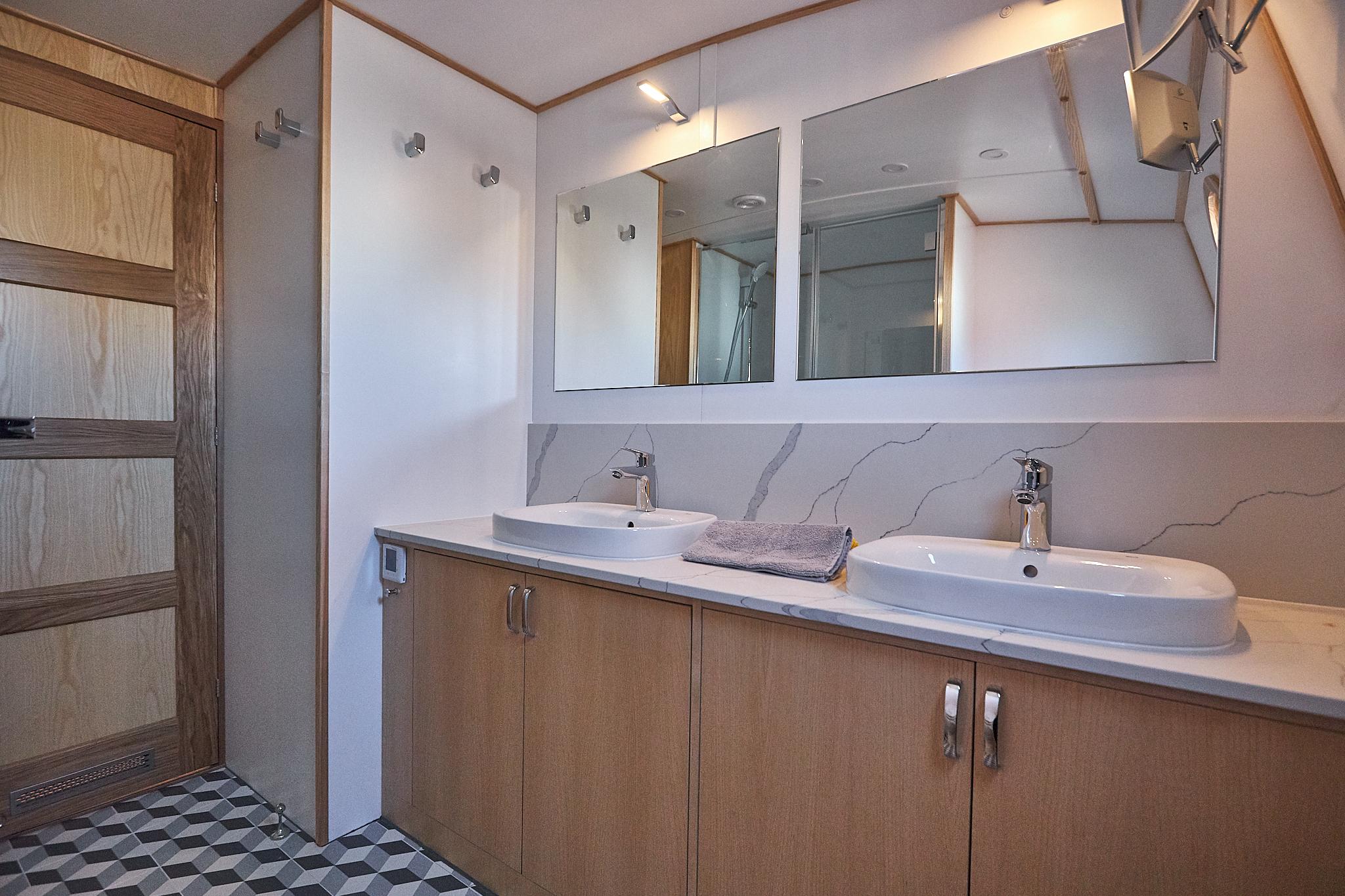

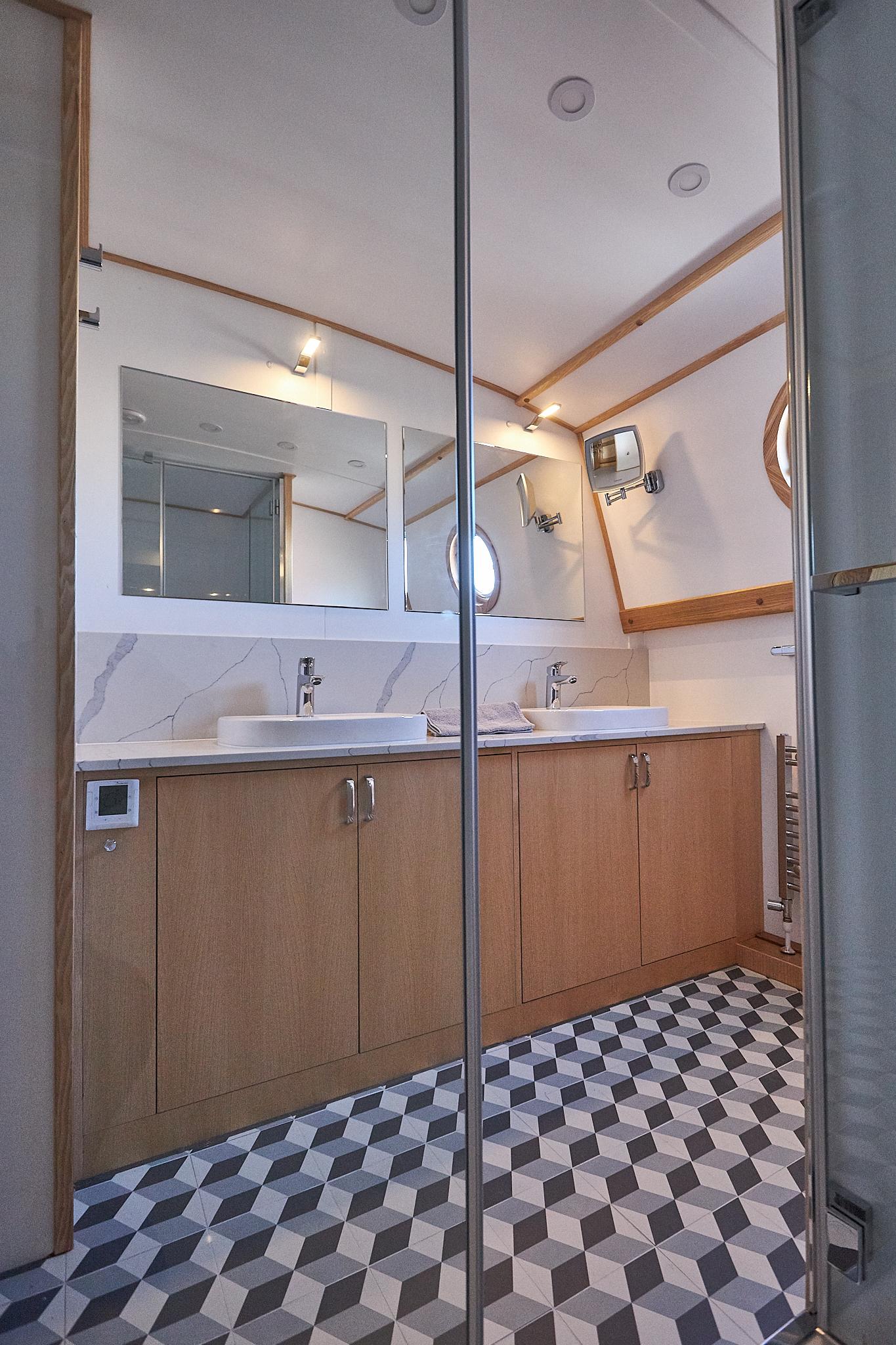

BATHROOM
· Vanity unit with basin situated on wooden countertop, storage below
· Water-flushed pump-out toilet, 215 L waste tank
· Rectangular shower, laminate wall panels
· Wall mirror and bathroom accessories
· LED lighting above the basin
· Mushroom vent extractor
SECOND BEDROOM
· Foldaway Double Bed with desk incorporated to base
· Full height wardrobe
· Desk with LED light above
· 2 LED reading lights

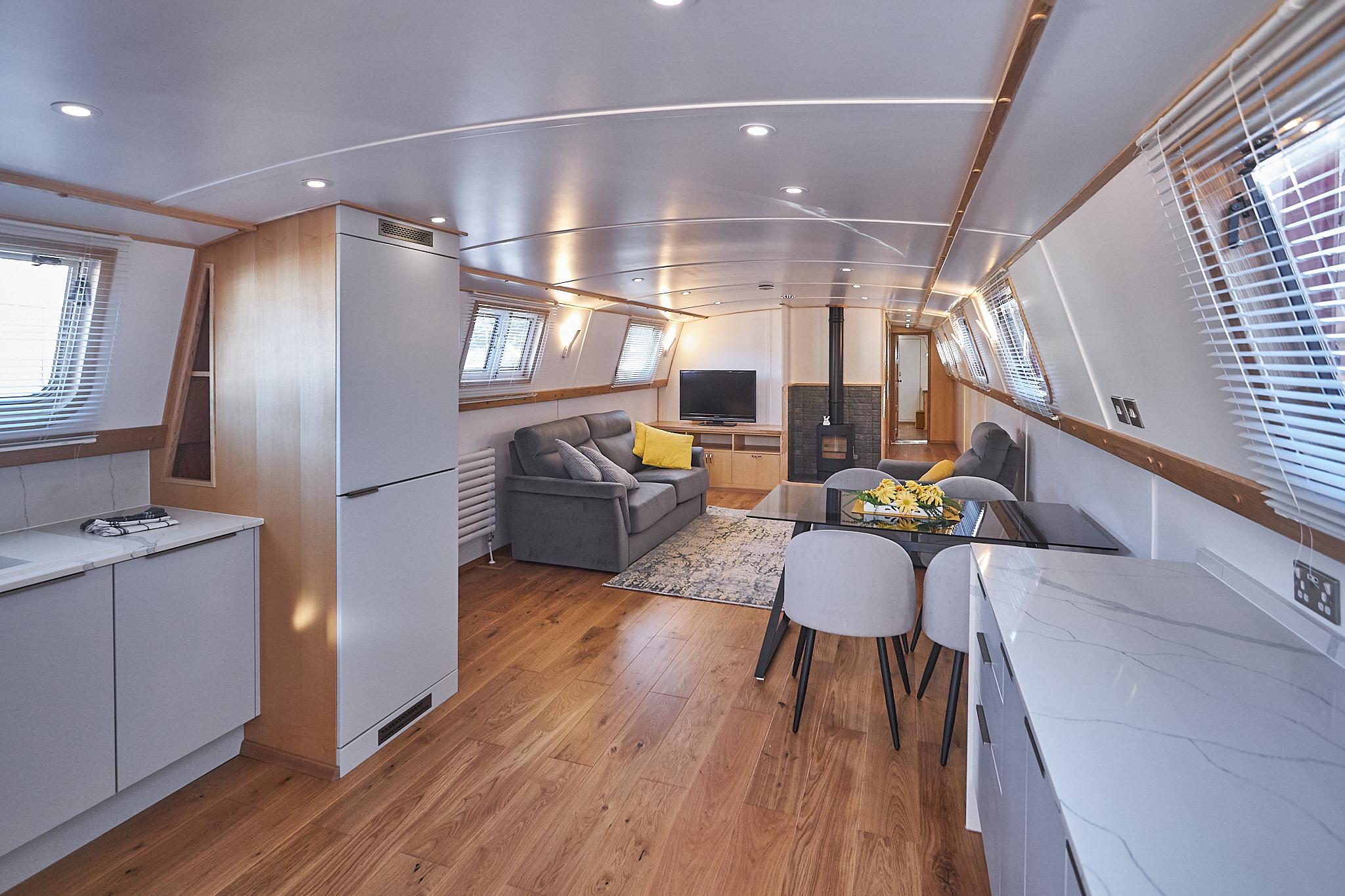

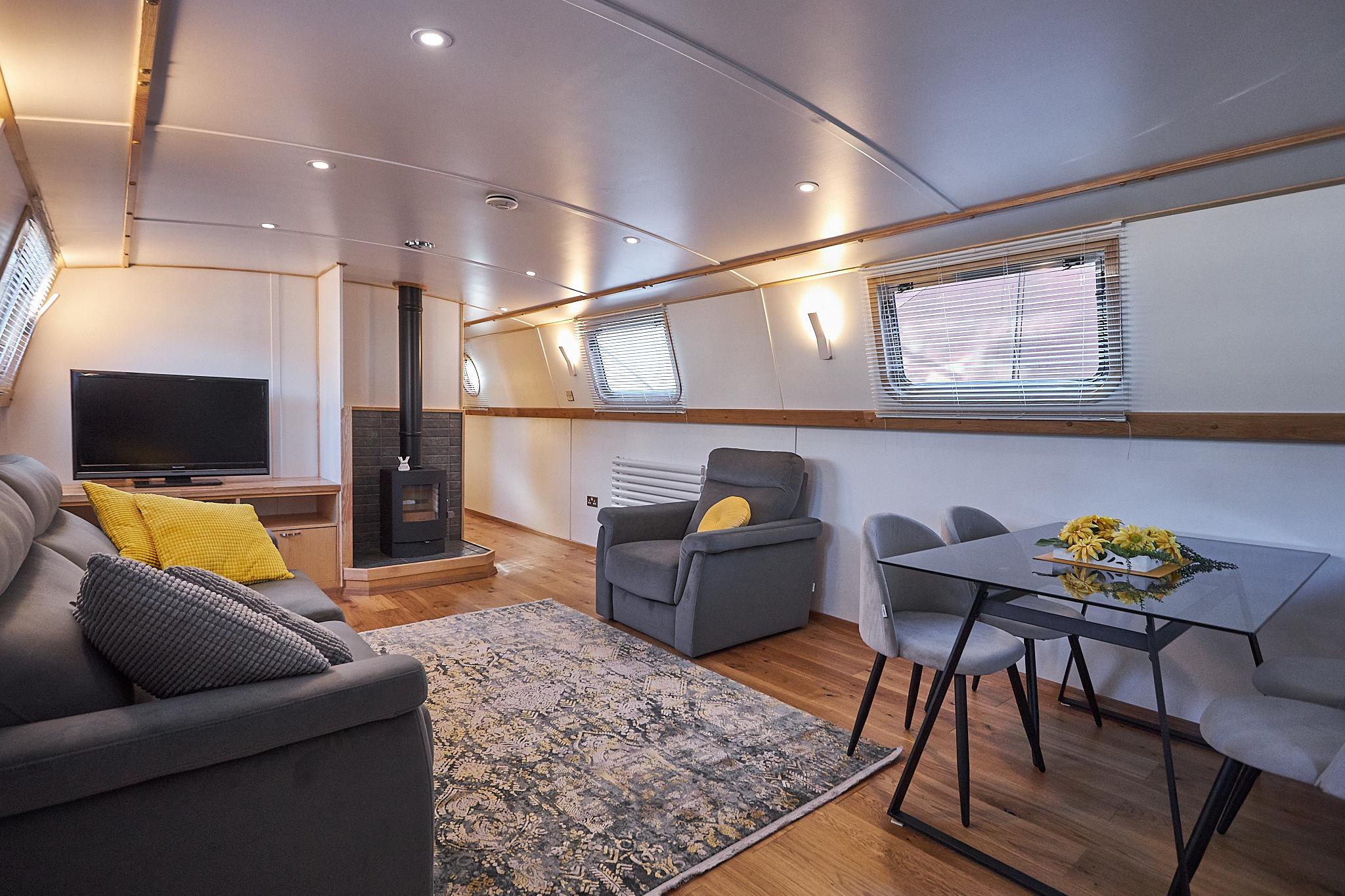

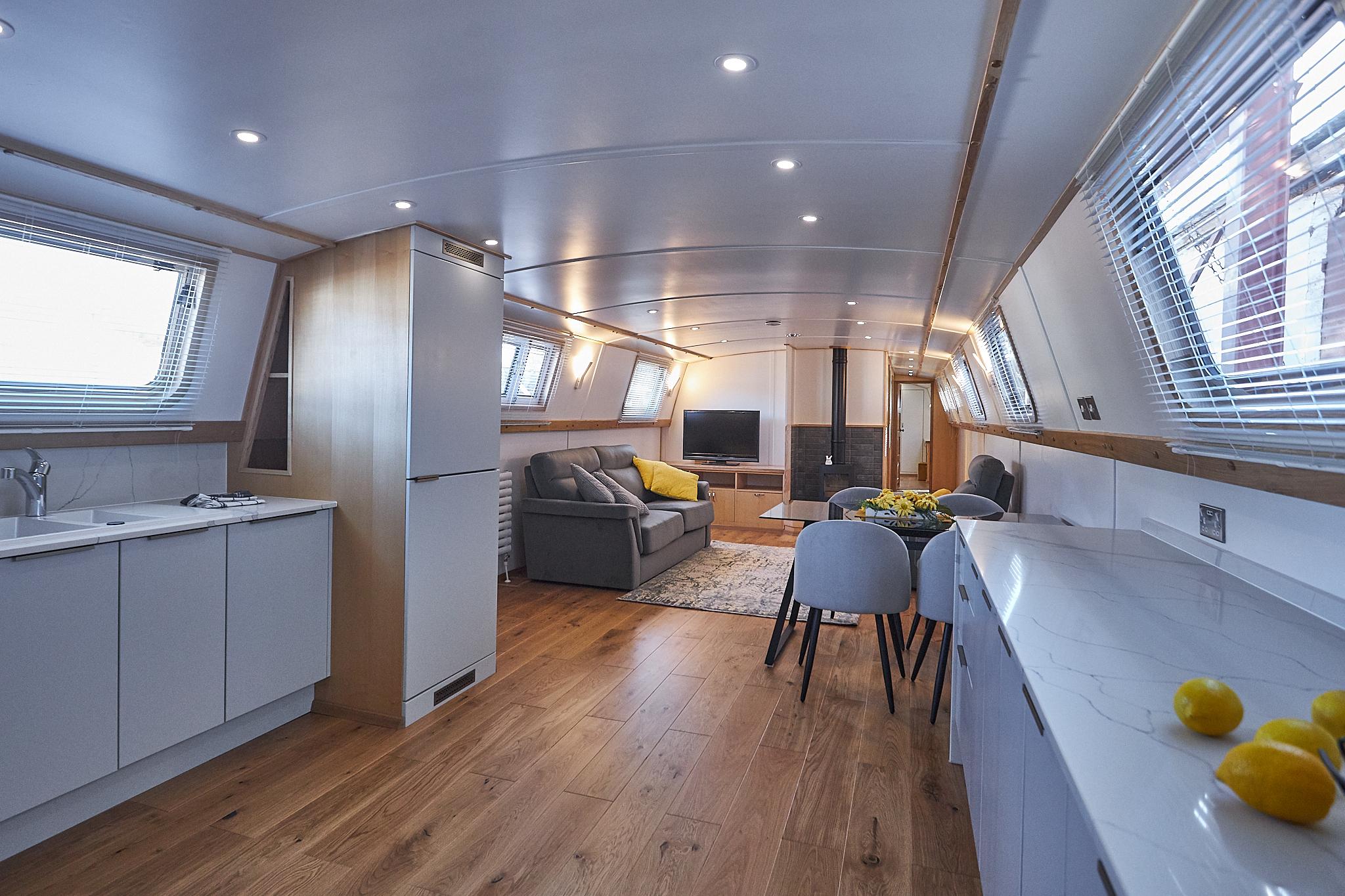

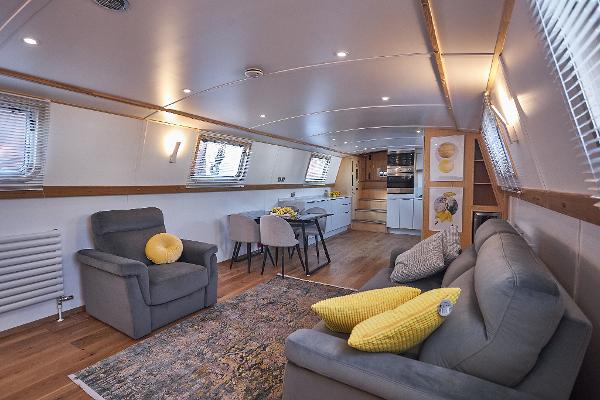

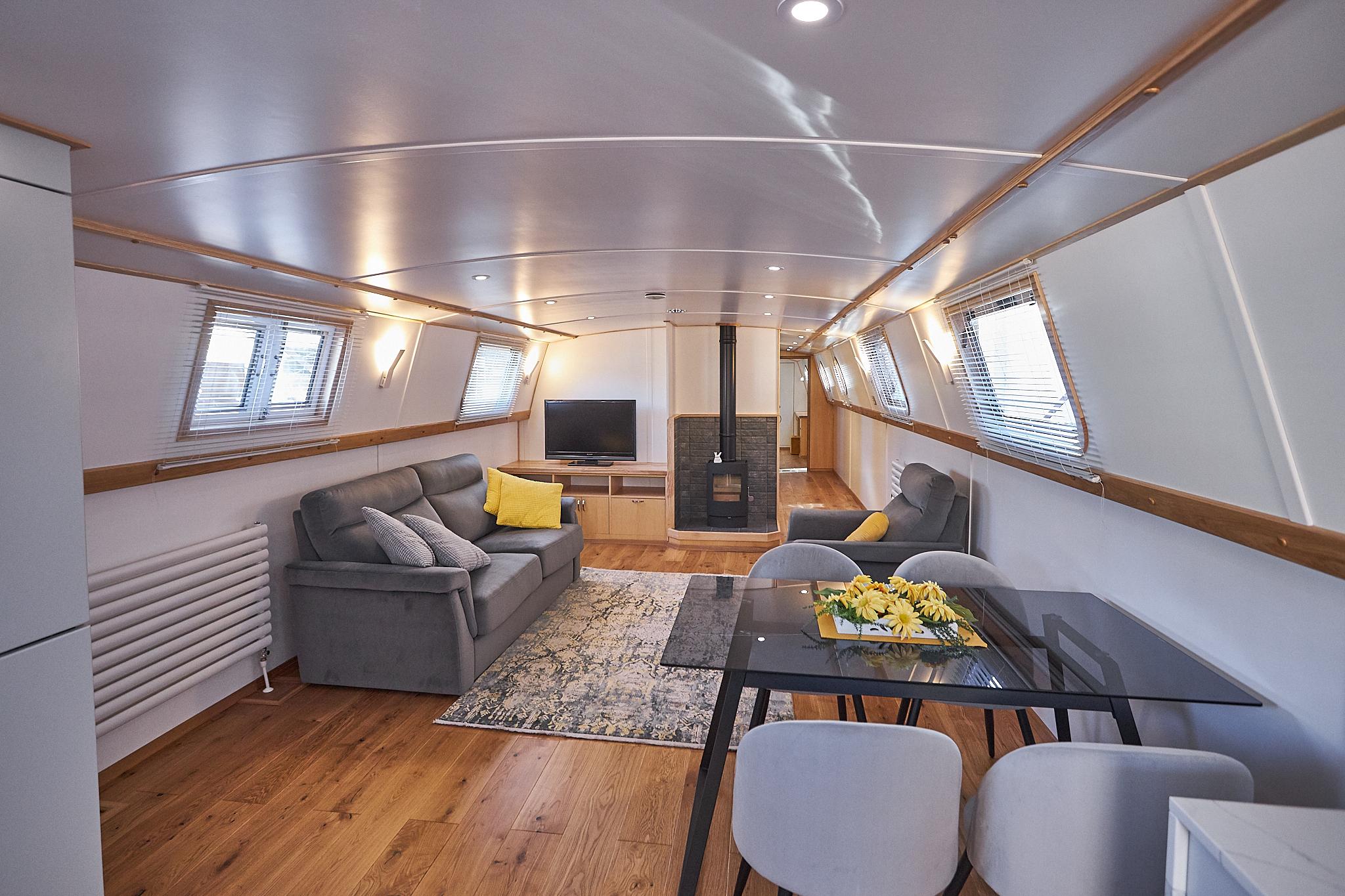

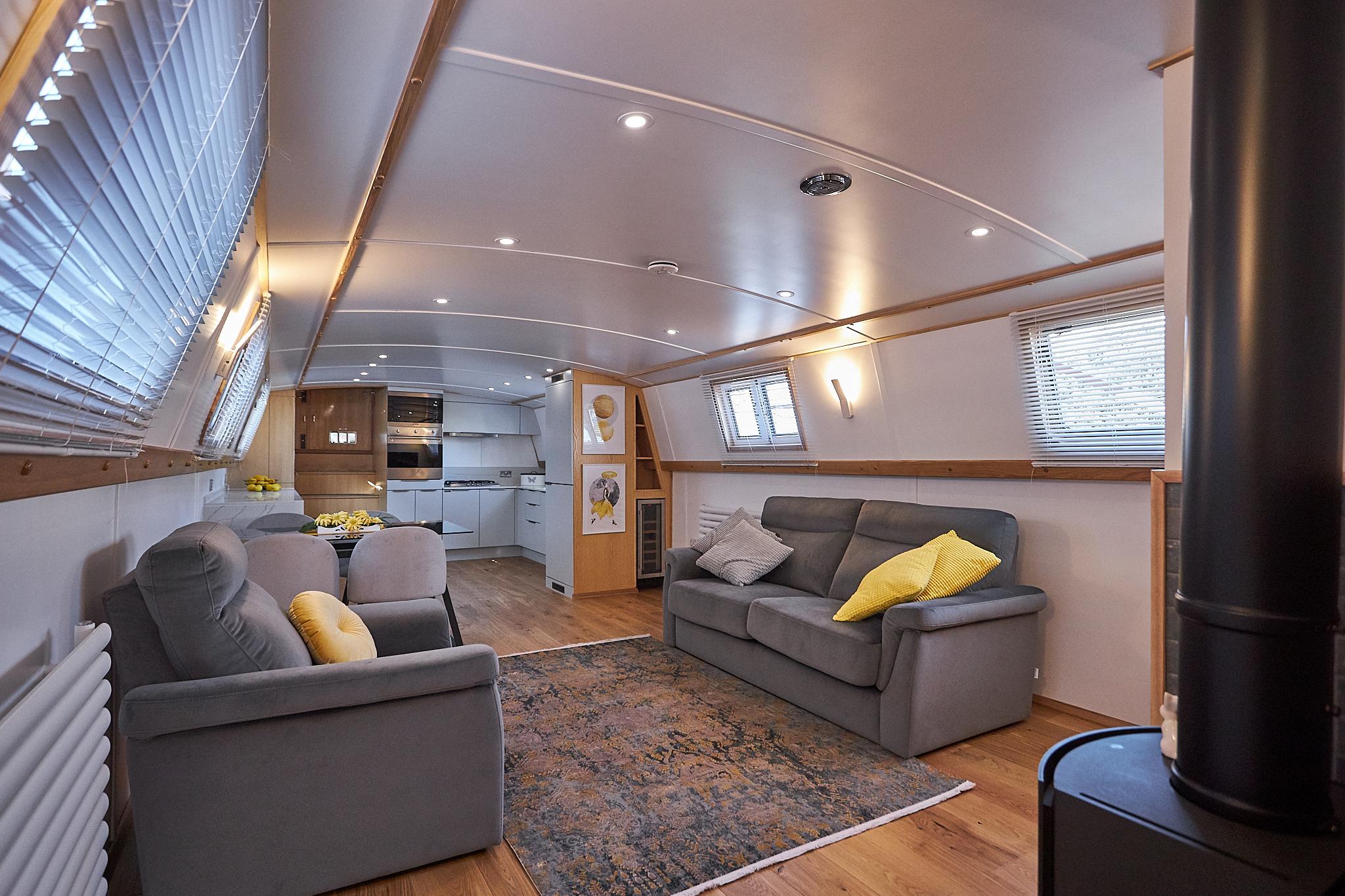

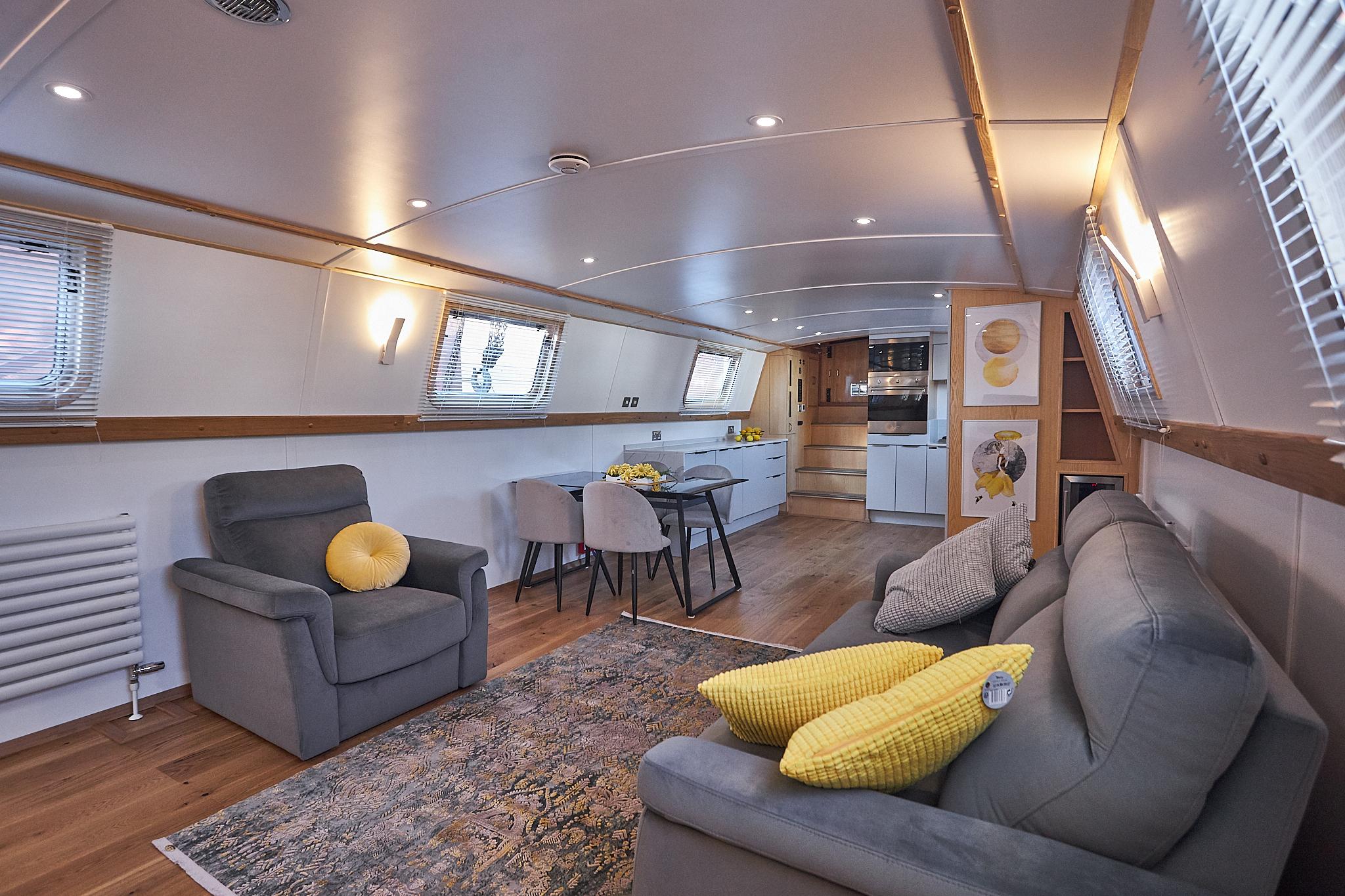

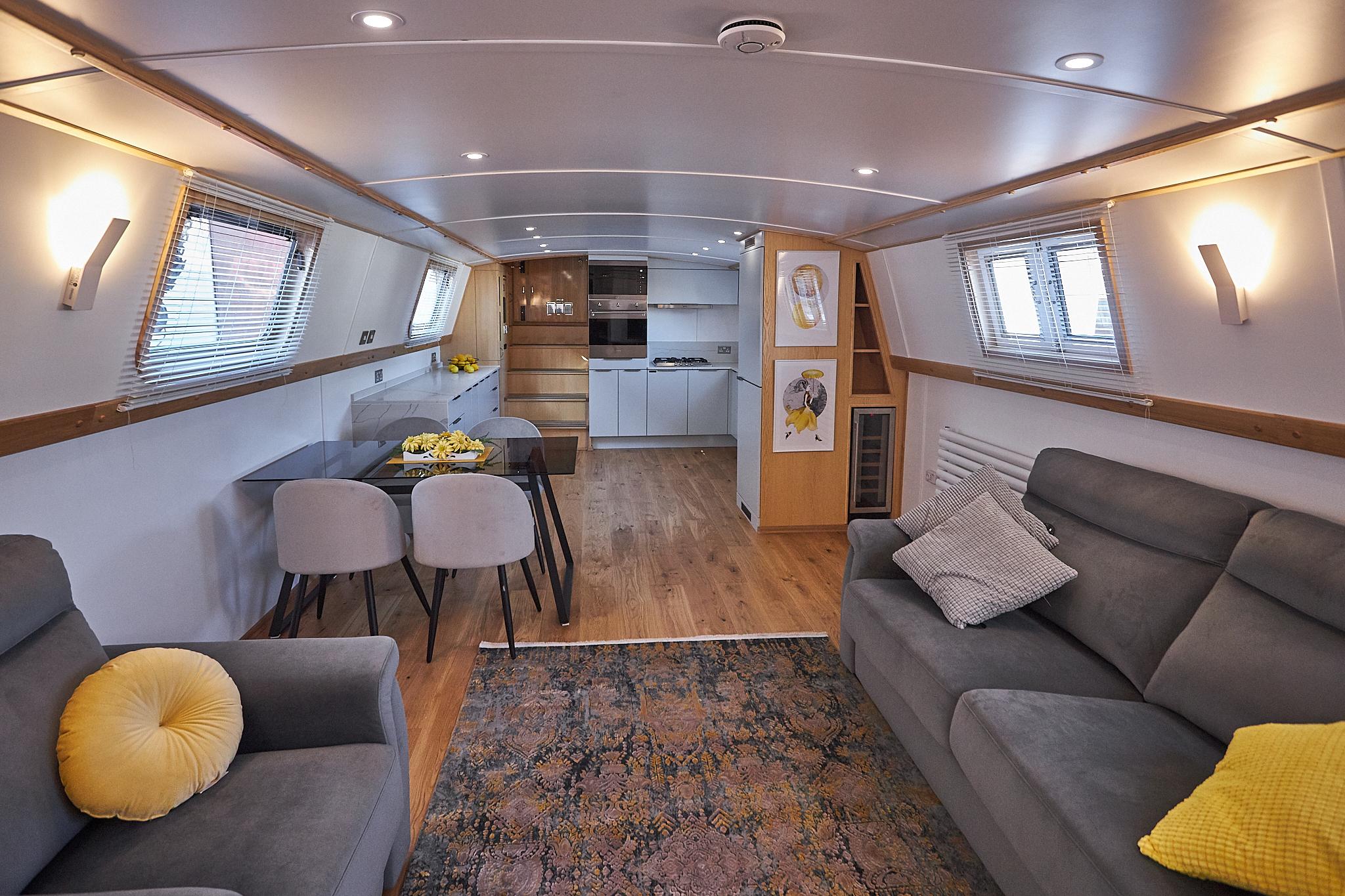

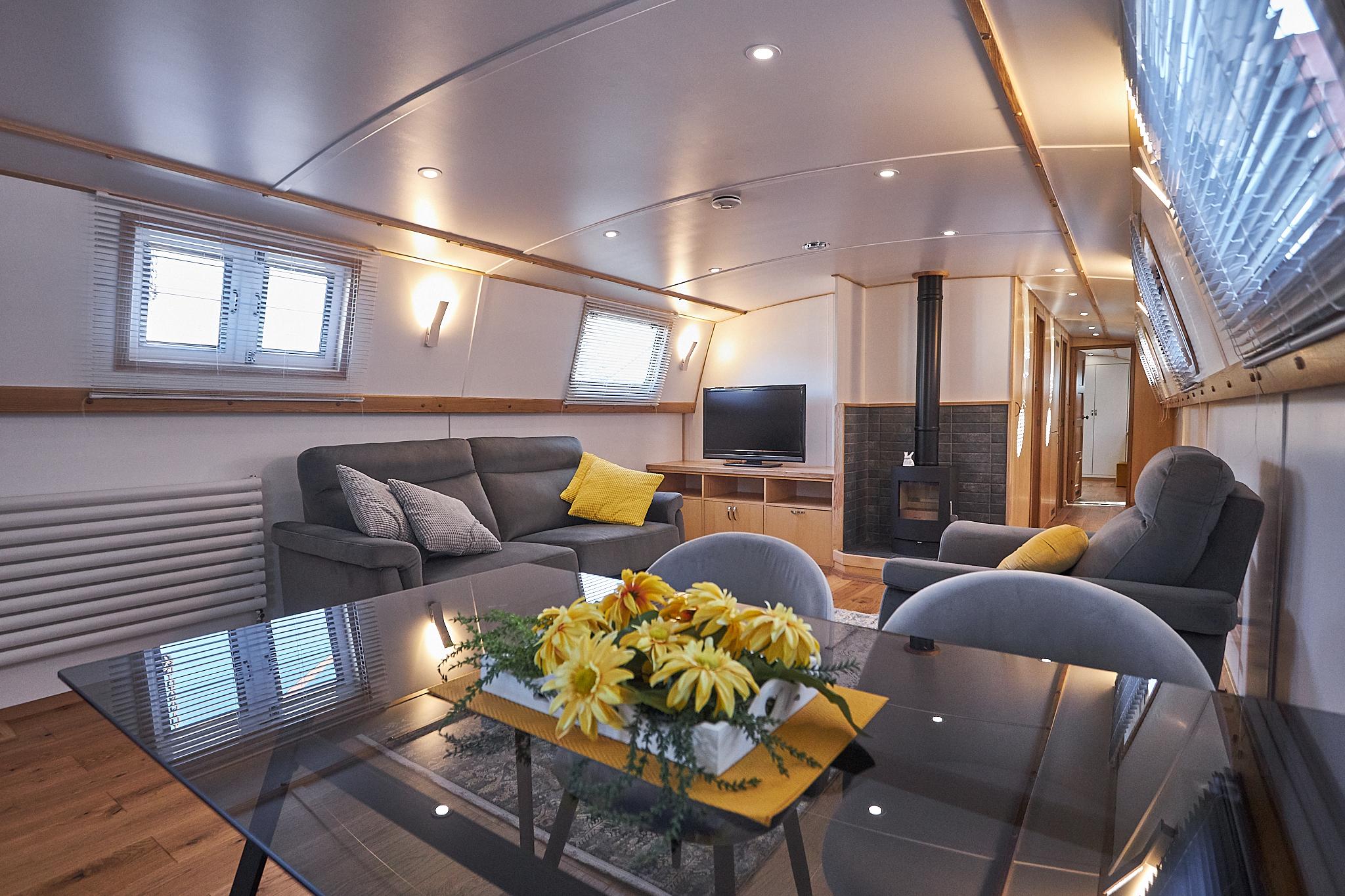

LOUNGE
· TV cabinet with storage units
· Morso multifuel stove, twin wall Morso flue, tiled surround

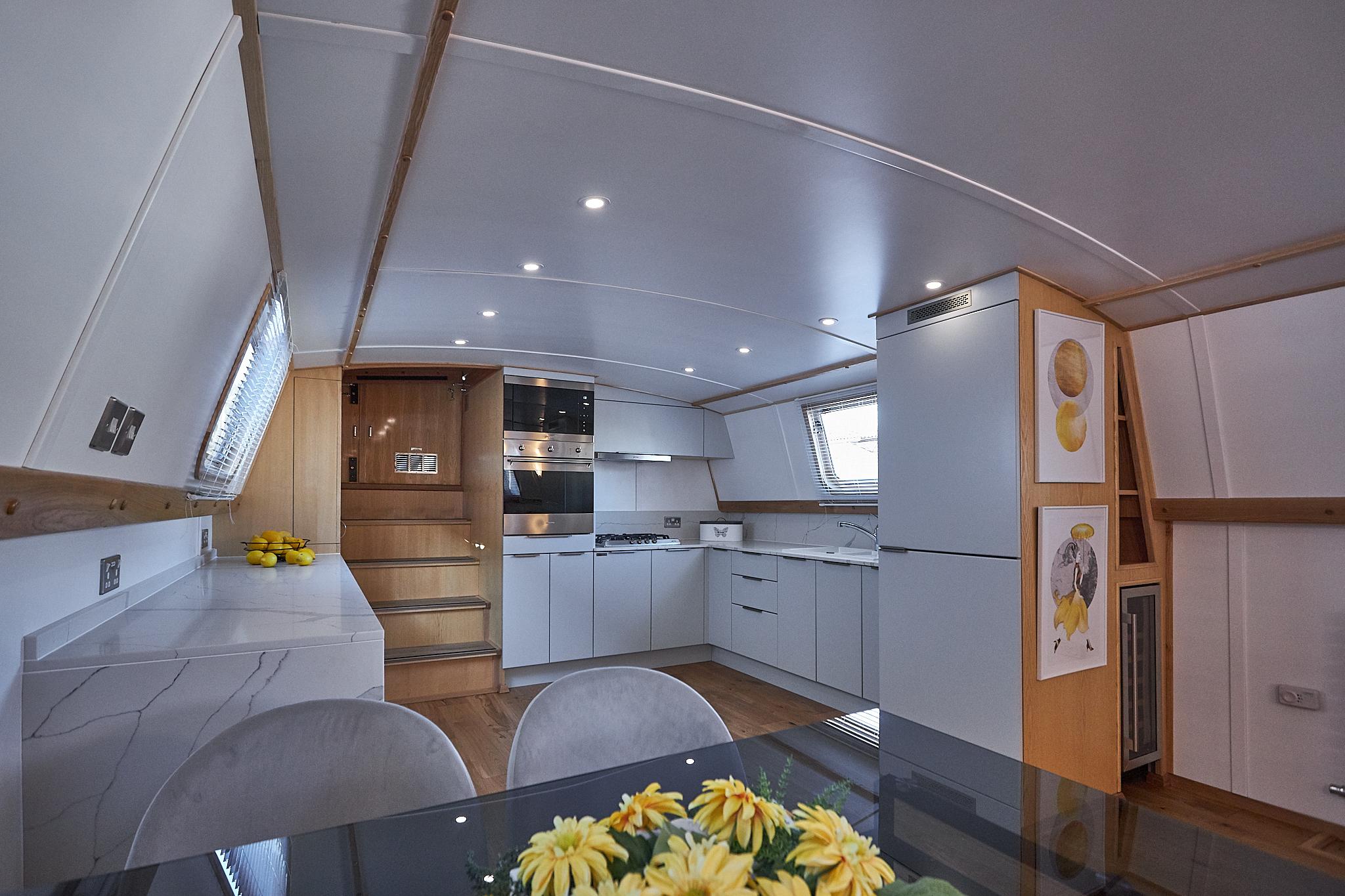

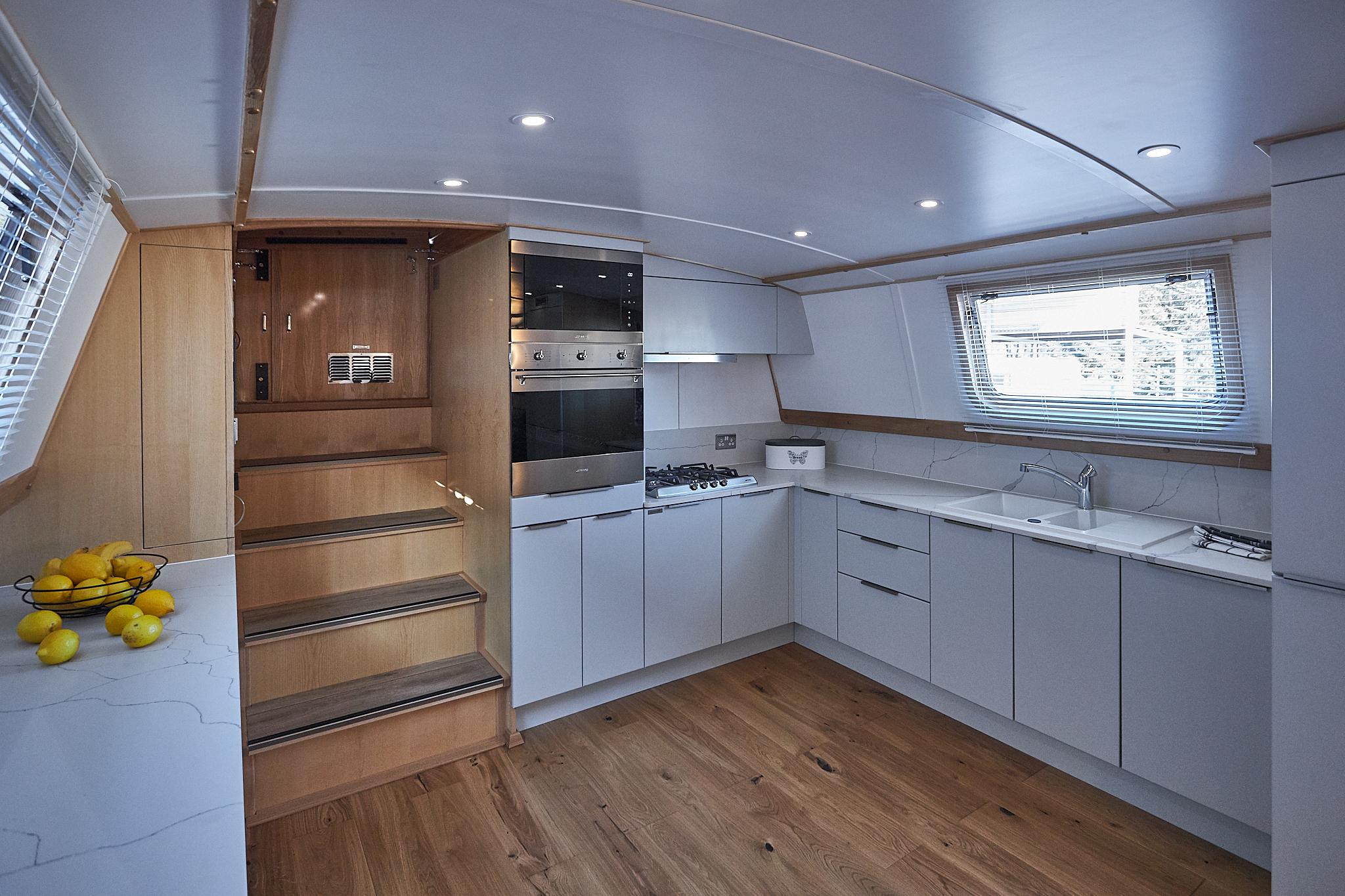

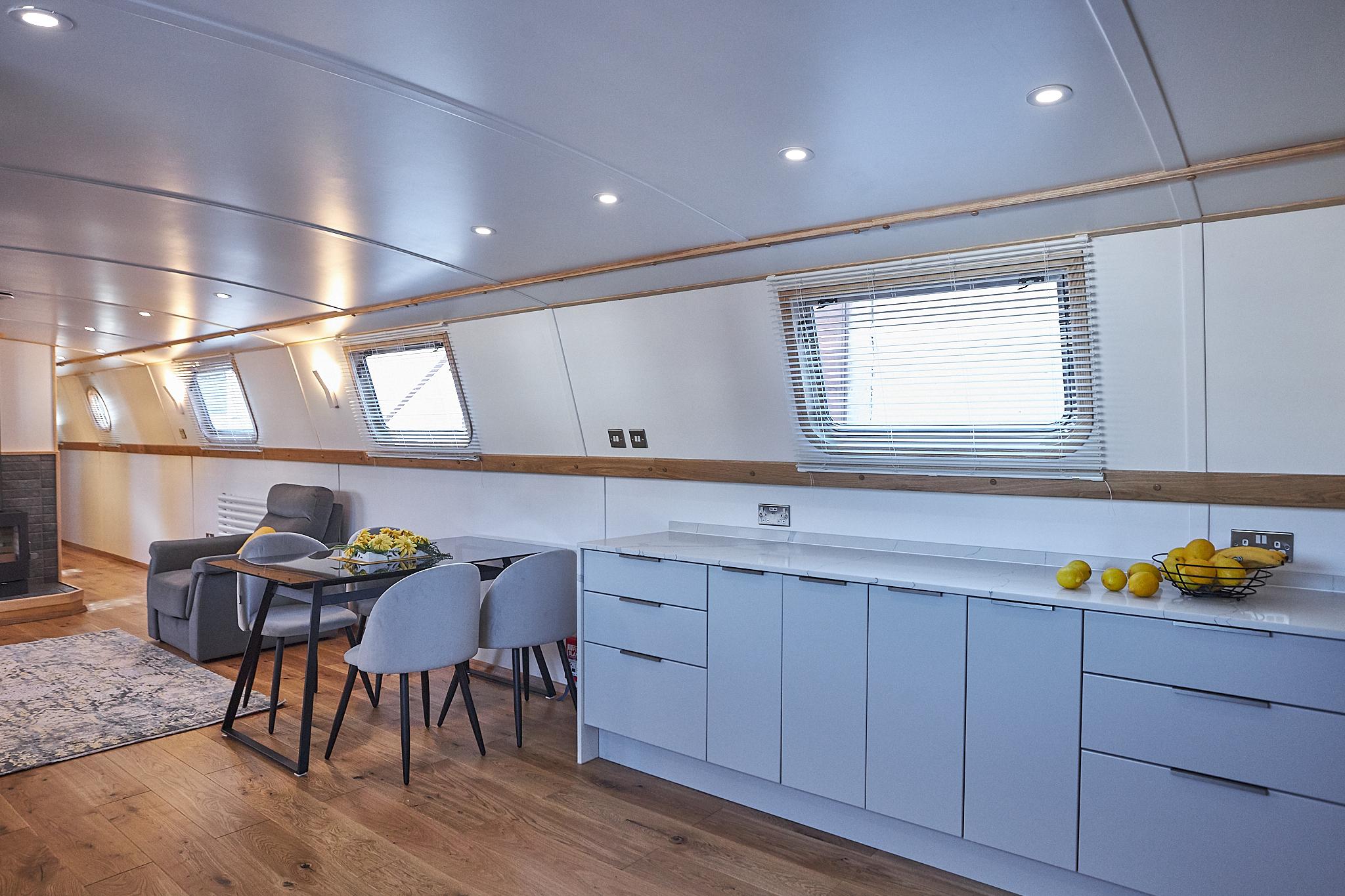

GALLEY
· Handmade kitchen cabinets
· Wooden worktops
· Quartz conglomerate sink with drainer

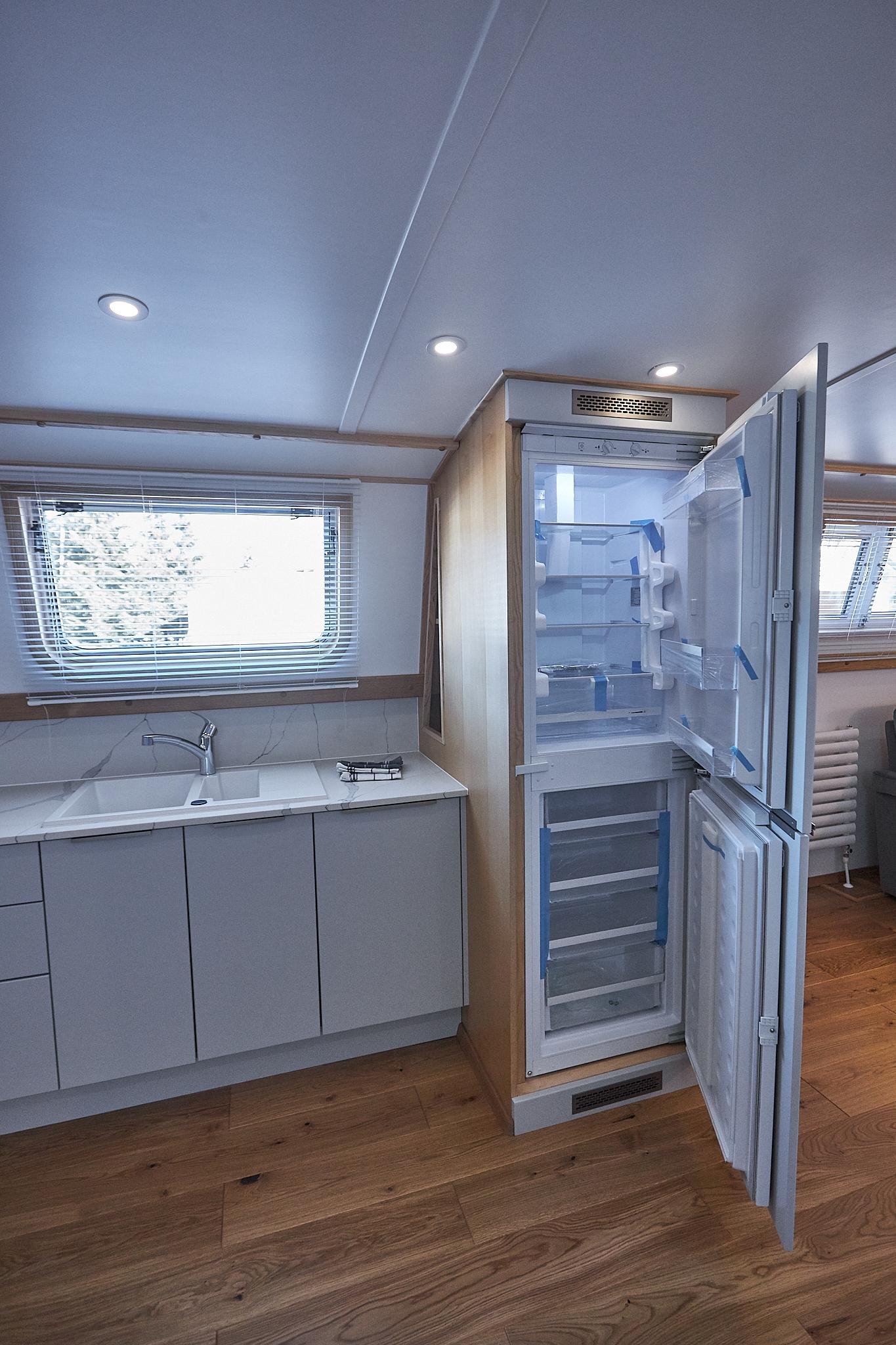

· Integrated full-size fridge freezer (230V)
· Integrated slimline dishwasher (230V)

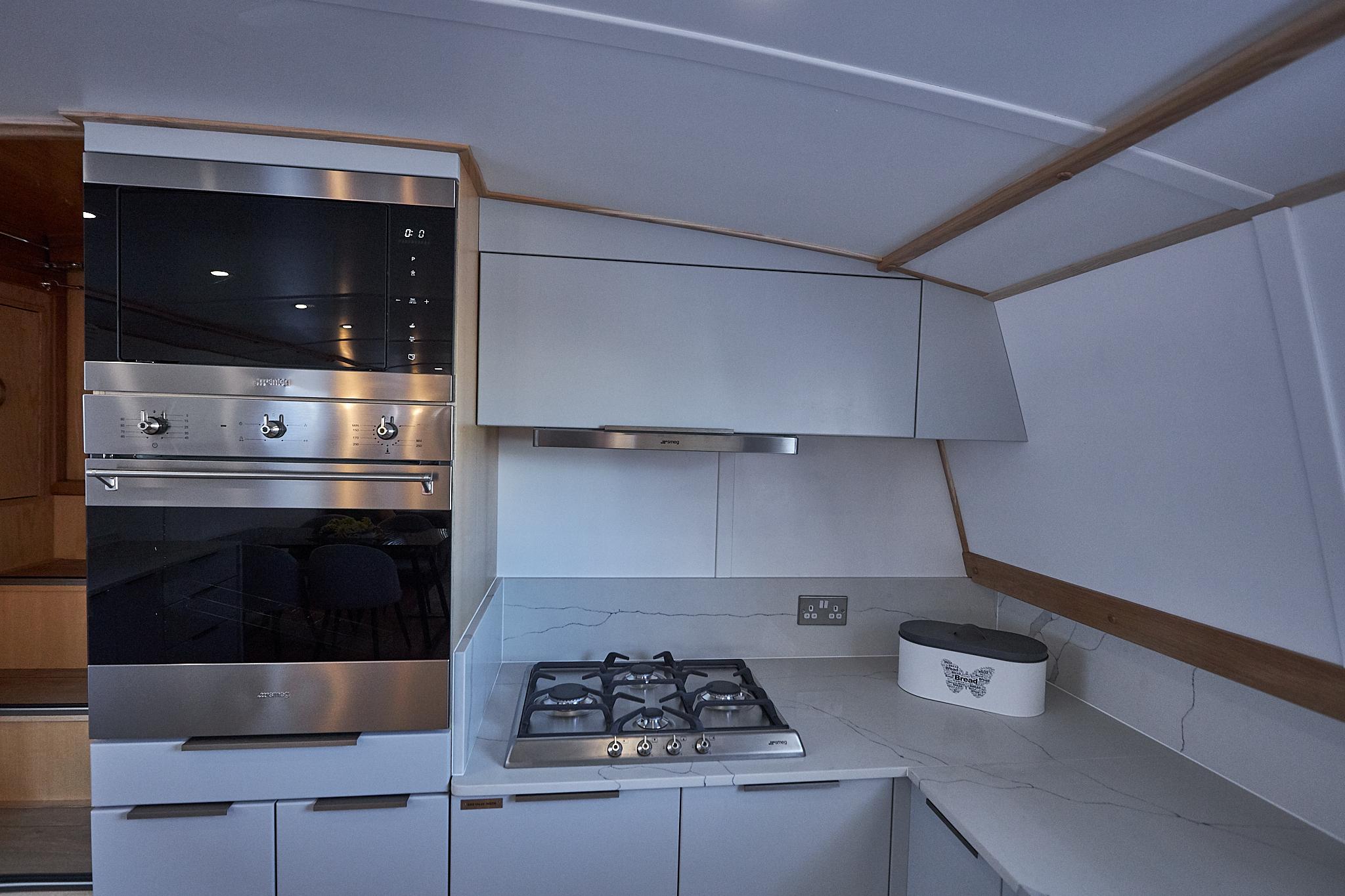

· Built-in gas cooker with oven & 4-burner hob (230V/LPG)
· Washing machine (230V)
· Mushroom vent extractor
· Electric control cupboard
· Steps with storage to rear deck
INTERNAL/EXTERNAL FITTINGS & FIXTURES
· Chrome, stainless steel and brushed steel fittings
· White aluminium window blinds

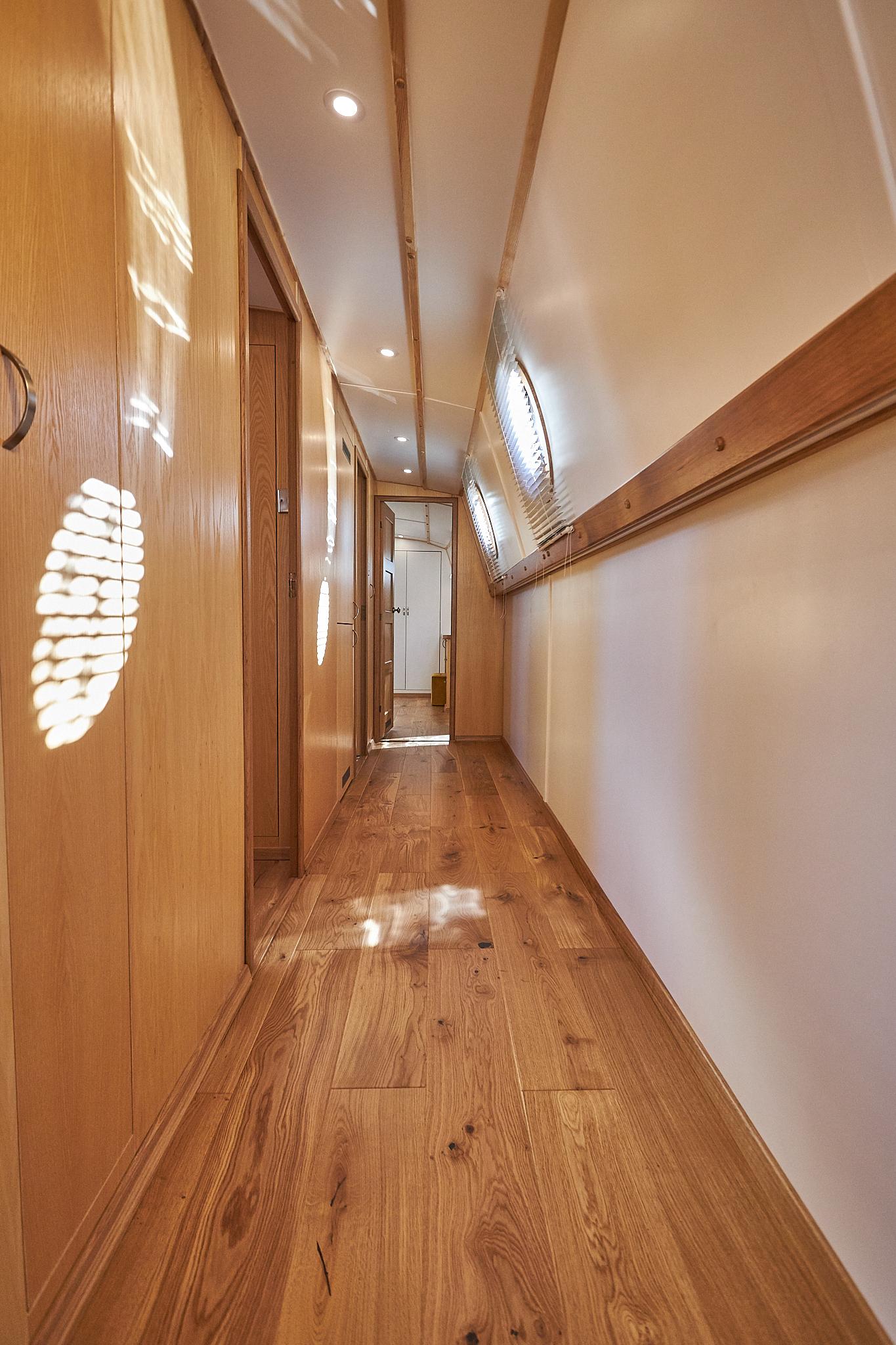

· Laminated flooring throughout living space
· Tiled floor in the bathroom
· All cabinet hinges and drawer slides with soft-closing system
