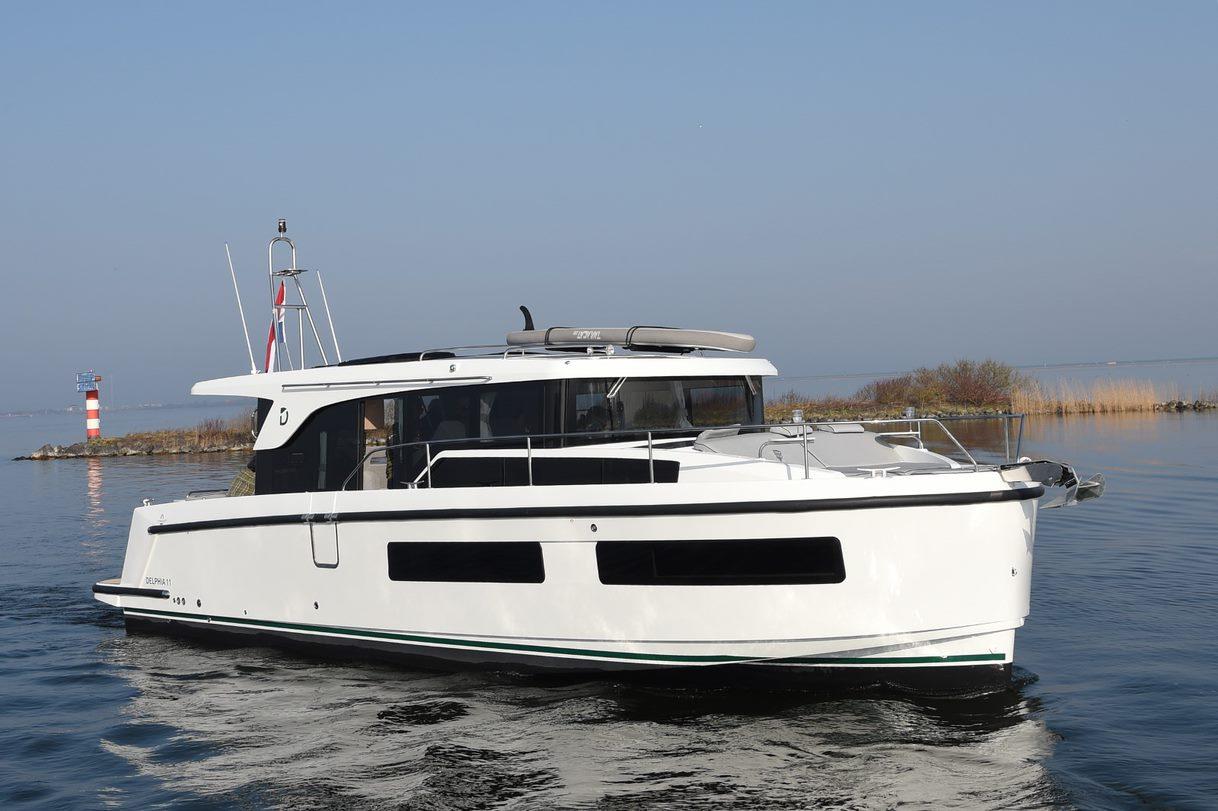

HULL
• “Pure” white gelcoat, RAL 9016
• “Pearl” green waterline stripes, RAL 6035
• GRP hand lay-up using anti osmosis barrier incl. balsa core sandwich construction
• Structural hull counter moulding in monolithic laminate
• 4x hull portlights, acrylic glass
• Protective rubrail along the hull, black
• Emergency ladder
• Bathing platform
• Bow thruster, 4,4kW
DECK
• “Pure” white gelcoat, RAL 9016
• GRP hand lay-up incl. balsa core sandwich construction
• Structural counter moulding in monolithic laminate
• Diamond tip type non-slip surface
DECK EQUIPMENT
• Bulwark side gate on starboard side
• Anchor locker incl. pad eye for chain fixation
• 4 mooring cleats, stainless steel
• Guardrail from midships to bow, stainless steel
• Handrail on wheelhouse, stainless steel
• Handrails in cockpit, stainless steel
• Transom gates, stainless steel
WHEEL HOUSE
• Navigation lights integrated in wheelhouse
COCKPIT
• Self bailing cockpit
• 1x large storage locker in cockpit bottom, gas piston assisted
• Life raft storage locker in cockpit floor
• Cockpit bench, U shaped incl. 3x storage compartments
• Gas bottle locker in cockpit bench (fitting 2x 3kg gas bottles)
STEERING STATION
• Two-seater pilot and co-pilot bench incl. bolster seat
• Clear glass windscreen with aluminium frames, black
• 1x windshield wiper at helm position, electric
• Windscreen washer
• Dashboard includes:
o Engine throttle control
o Engine instrumentation: rev counter, fuel gauge, tiller angle indicator
o Location for 12’’ display
o Bow thruster joystick
o 2x cup holders
o Compass
• Leather covered stainless steel steering wheel
• Footrest
• Red overhead night light, LED

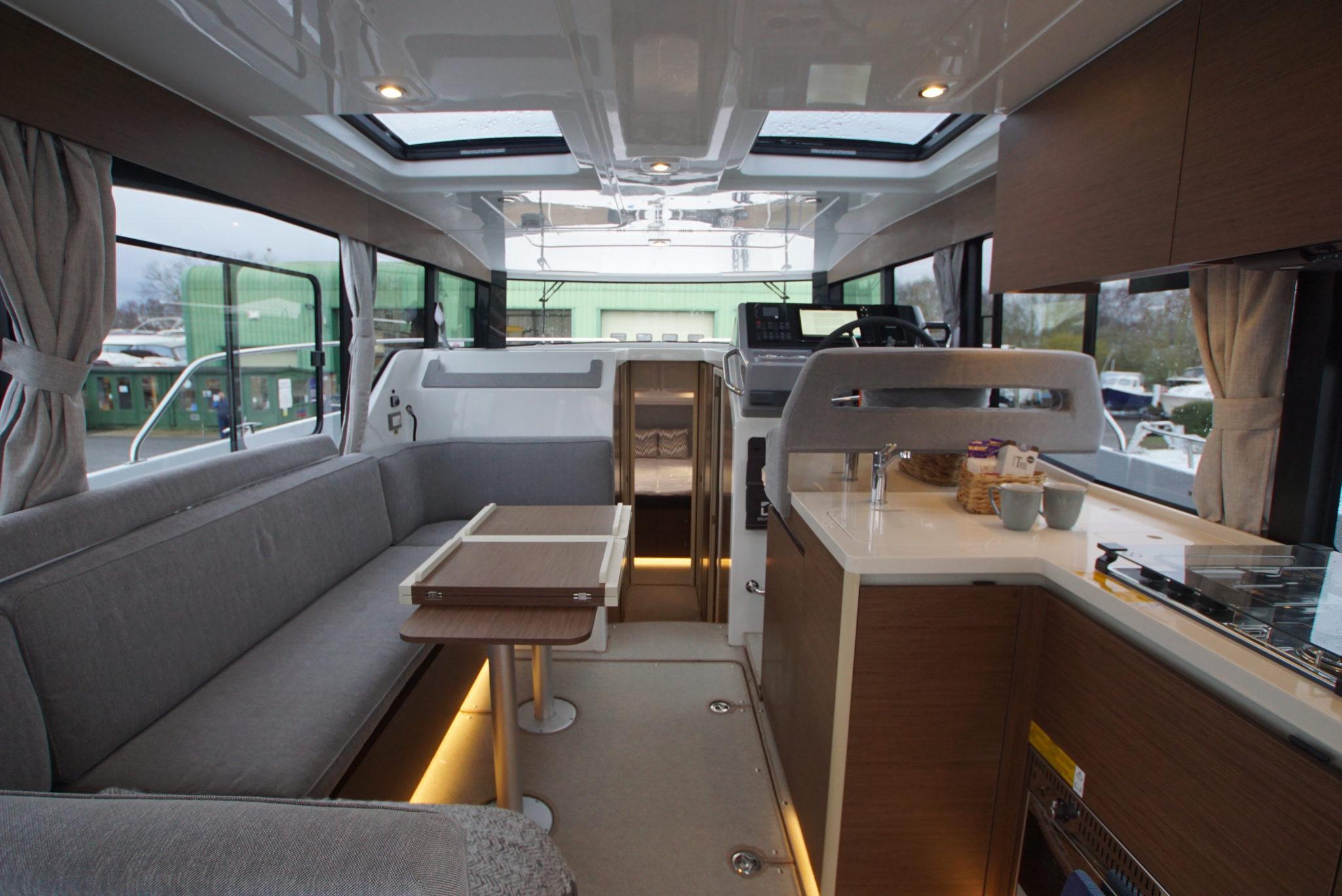

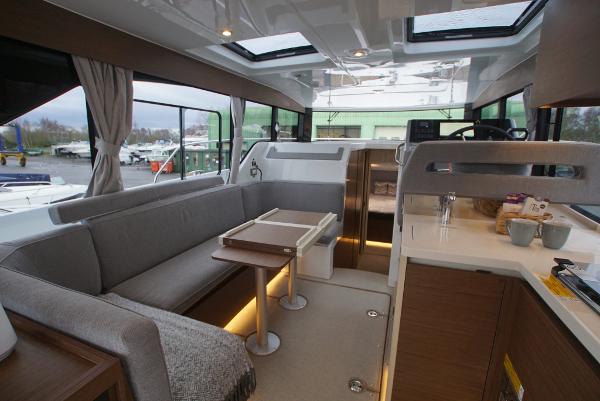

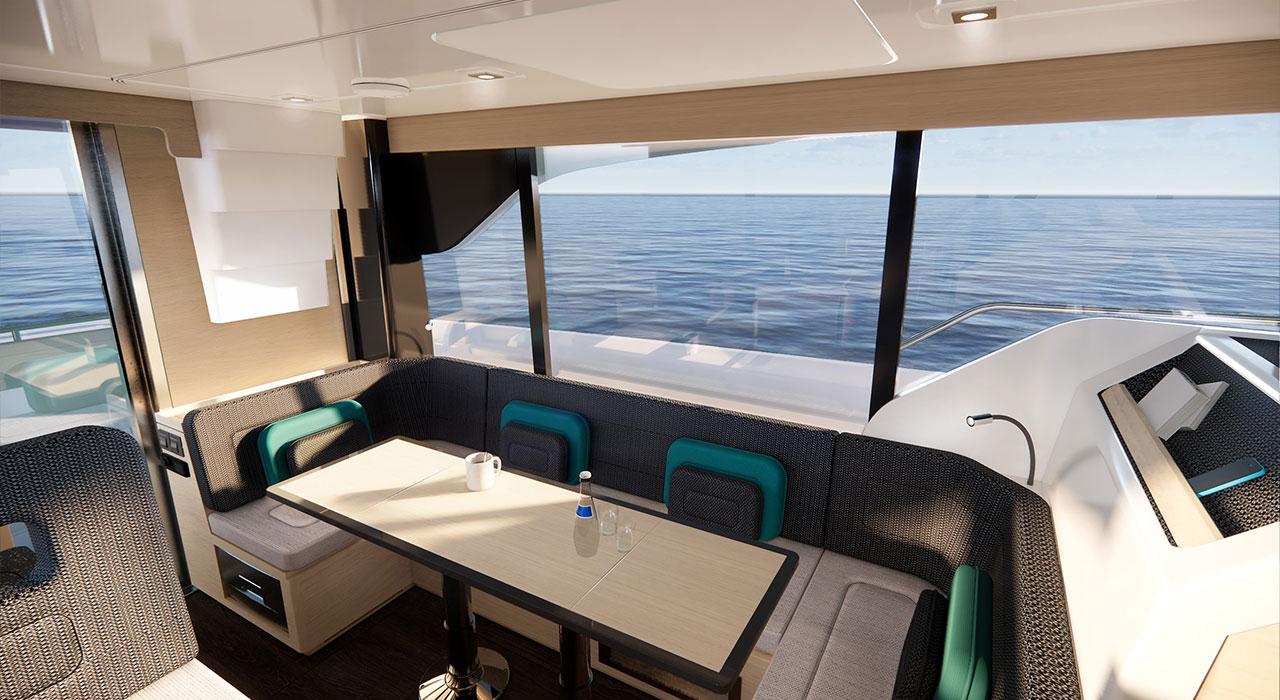

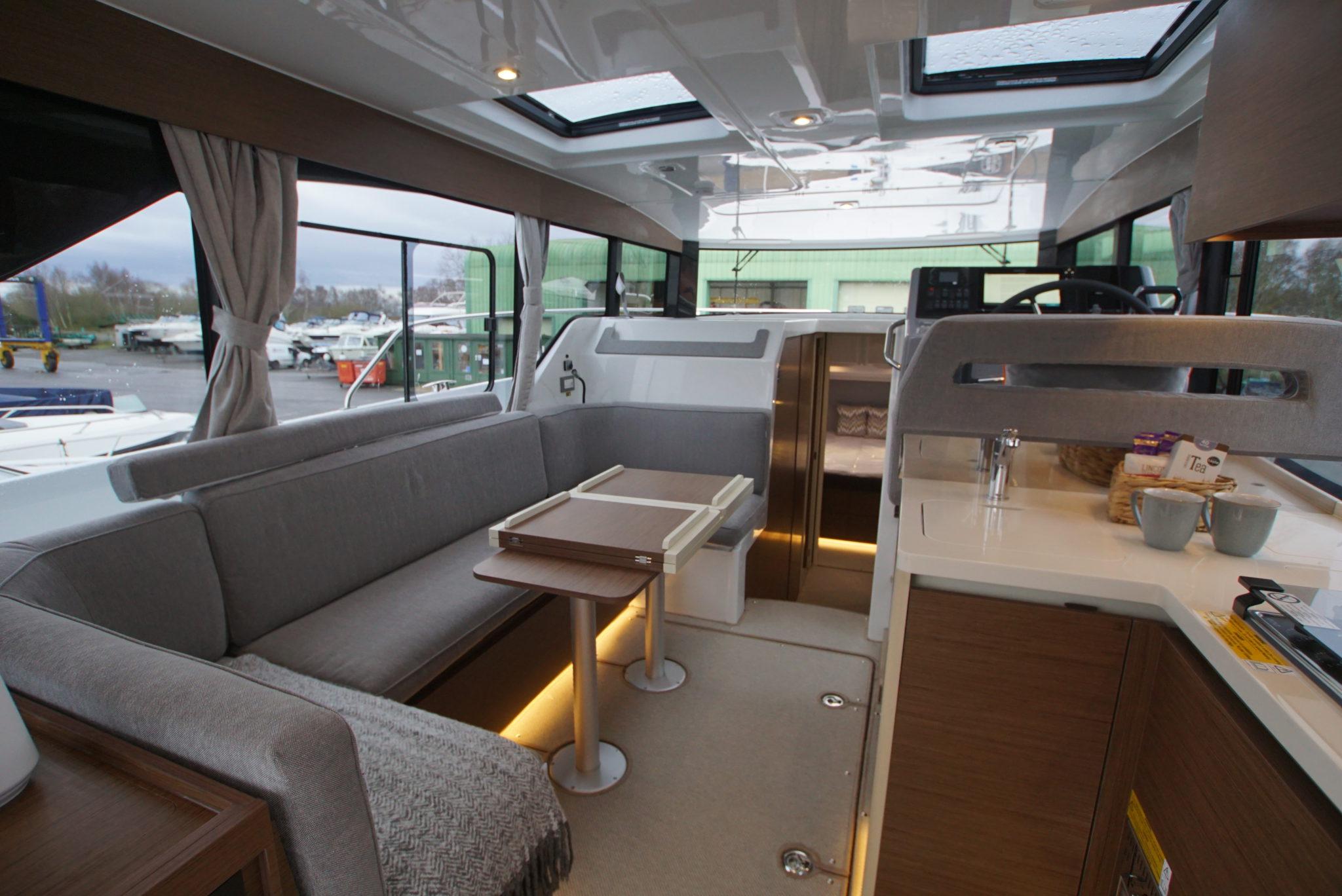

SALON
• U shape dining bench with storage space
• Foldable dining table, fixed
• Sliding opening side window on port
• Bottle storage cupboard on port
• Curtains
• Headliner partially covered with padded panels
• Overhead lights, LED
• 2x reading lights
• 3 partition sliding patio door incl. fold-up window on port
• Smoke detector

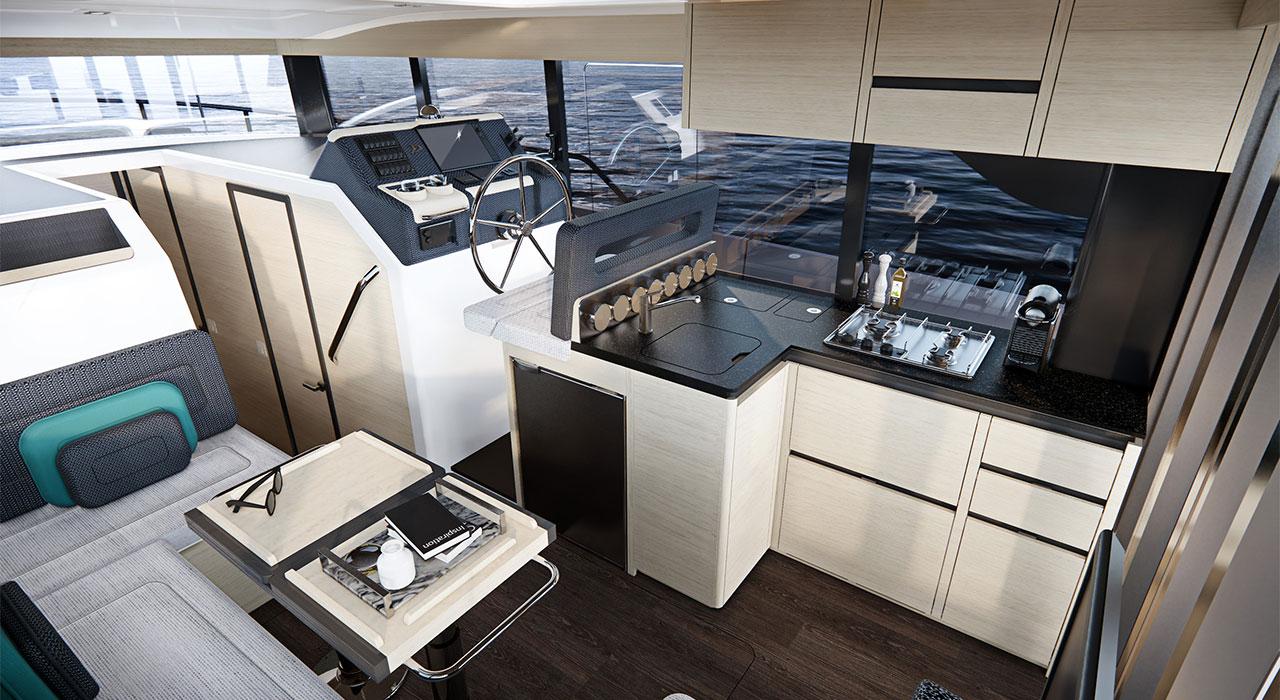

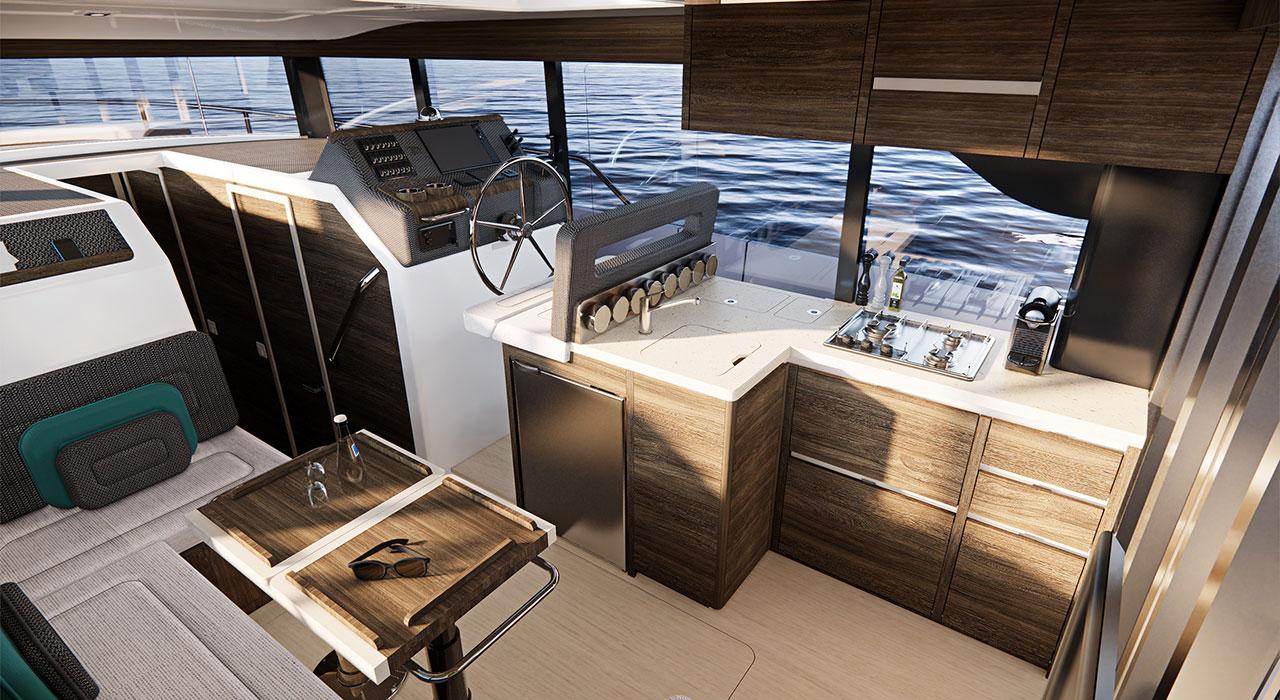

GALLEY
• Openable side portlight
• L shape galley includes:
o Stainless steel sink with hot/cold mixer tap
o 3 burner gas hob cooker
o Front opening fridge/freezer, 130l
o Waste bin
o Overhead storage lockers
o Cutlery drawer
• 2x 230V sockets
• Storage lockers

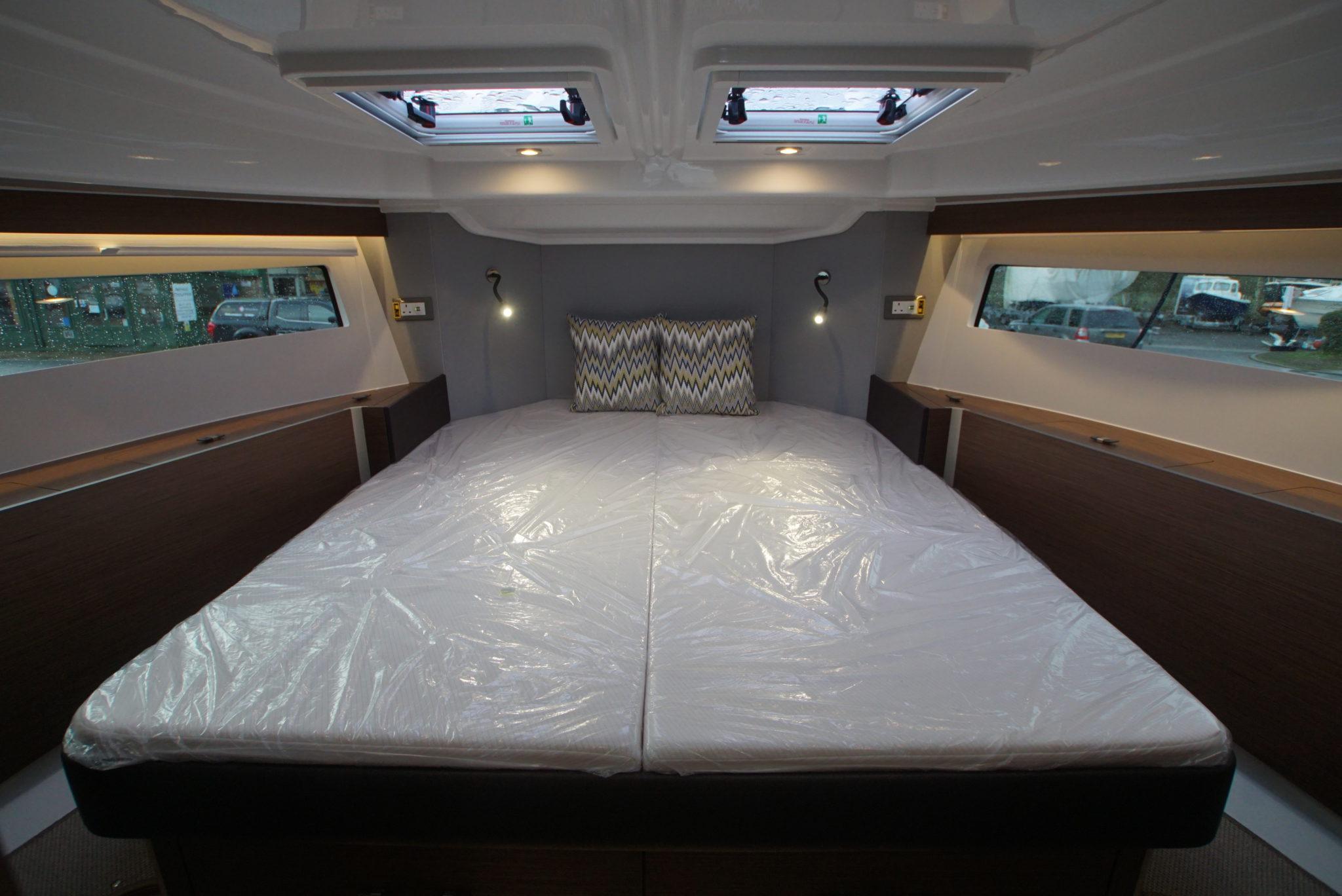

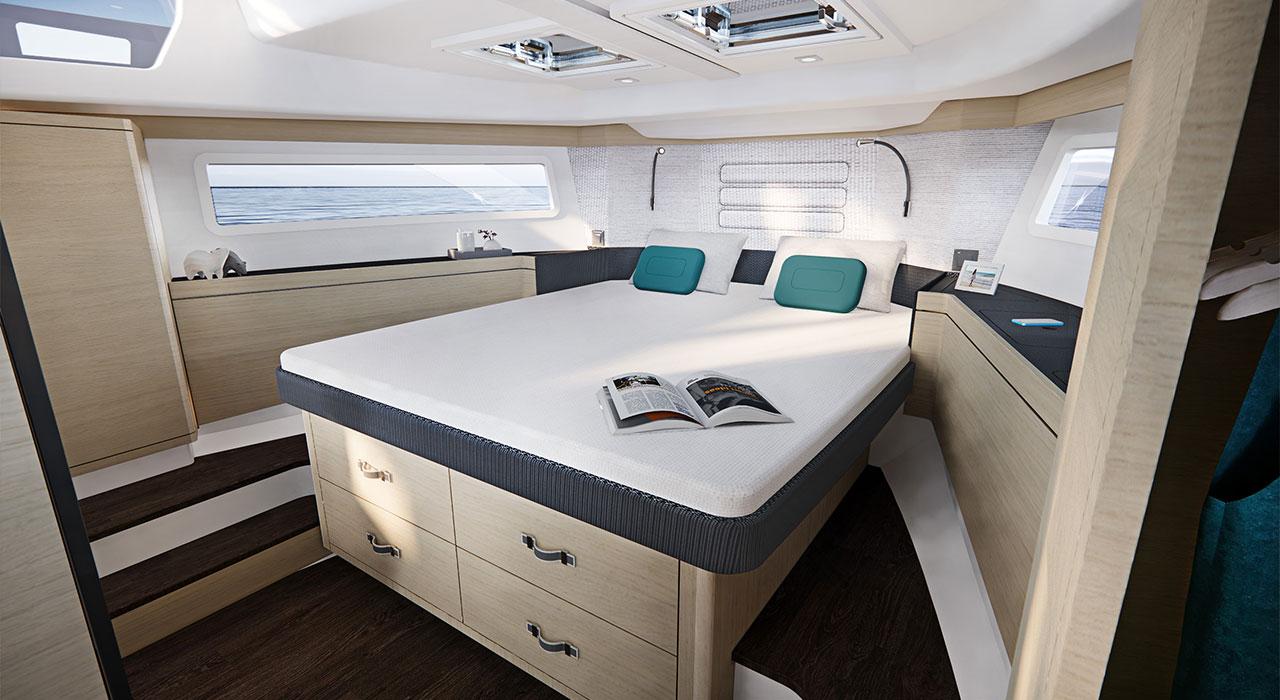

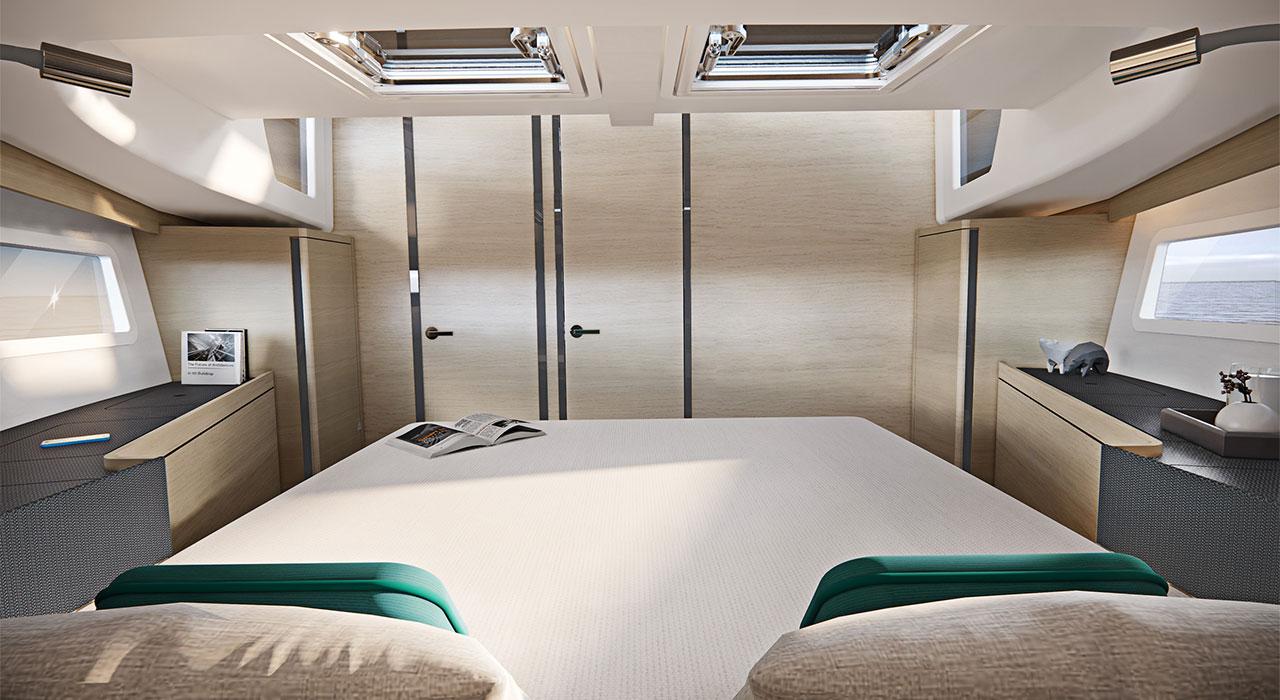

OWNERS CABIN
• EU King size bed (2,00 x 1,60m)
• Mattress (thickness: 10cm)
• 4x storage drawers under the berth
• Storage on both sides of the berth
• 2x hanging lockers
• 2x opening hatches
• 2x large hull portlights
• Skylight
• Curtains
• Padded side panels
• 1x opening portlights in coachroof
• Overhead light, LED
• 1x 230V socket
BATHROOM FORWARD (1 CABIN LAYOUT)
• Mirror
• Composite in «Nero Black» material
• Ceramic washbasin incl. hot/cold mixing tap
• Storage cupboard
• Quite flush electric toilet with fresh water flush
• Toilet cover
• 1x hull portlight
• 1x opening portlights in coachroof
• Overhead light, LED
• 1x 230V socket

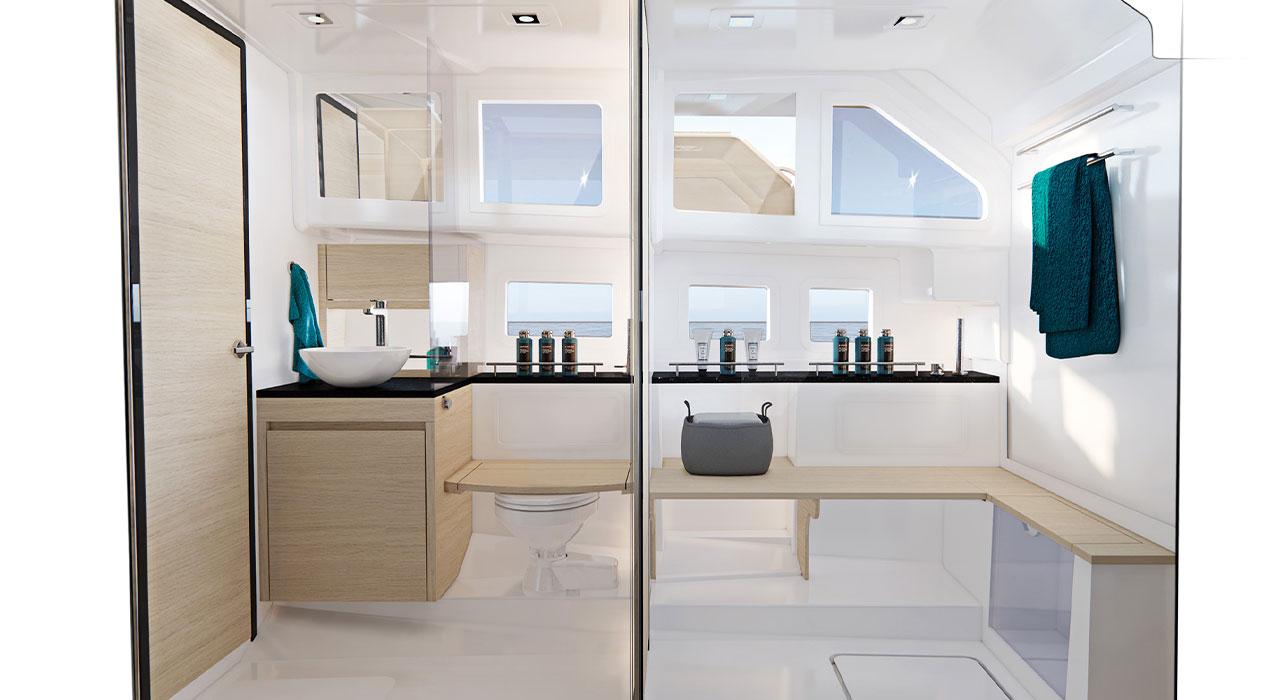

SHOWER ROOM AFT (1 CABIN LAYOUT)
• Mirror
• Hot/cold mixing shower head
• Storage cupboard
• Shower bench
• 1x hull portlight
• Headliner in gloss finish GRP
• Storage under the bench

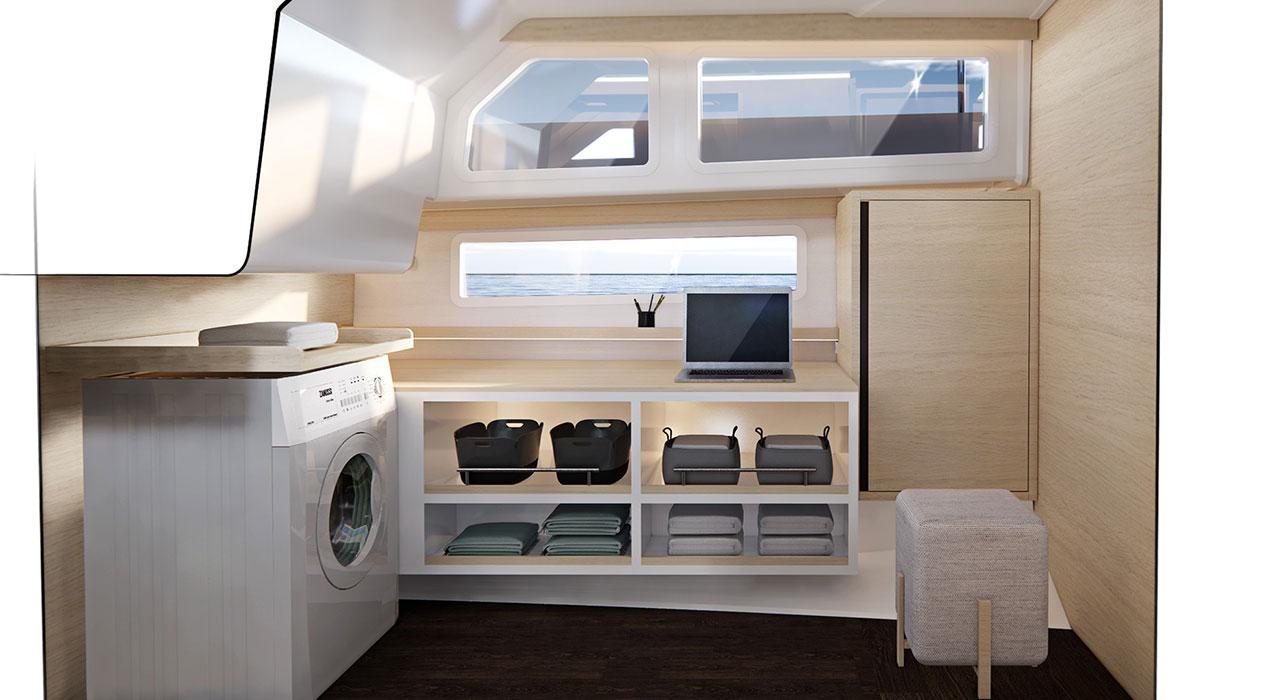

UTILITY ROOM (1 CABIN LAYOUT) Standard
• Open shelf modular storage cupboard
• Hanging locker
• 1x large hull portlight
• 1x opening portlight in coachroof
• Overhead lights, LED
• 2x 230V sockets

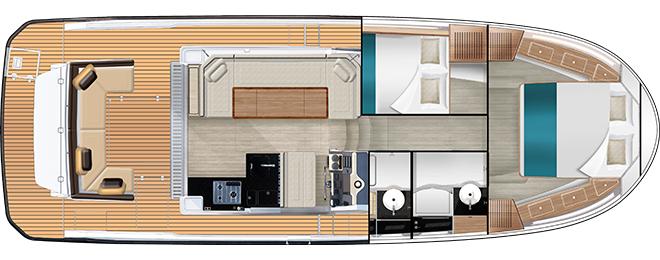

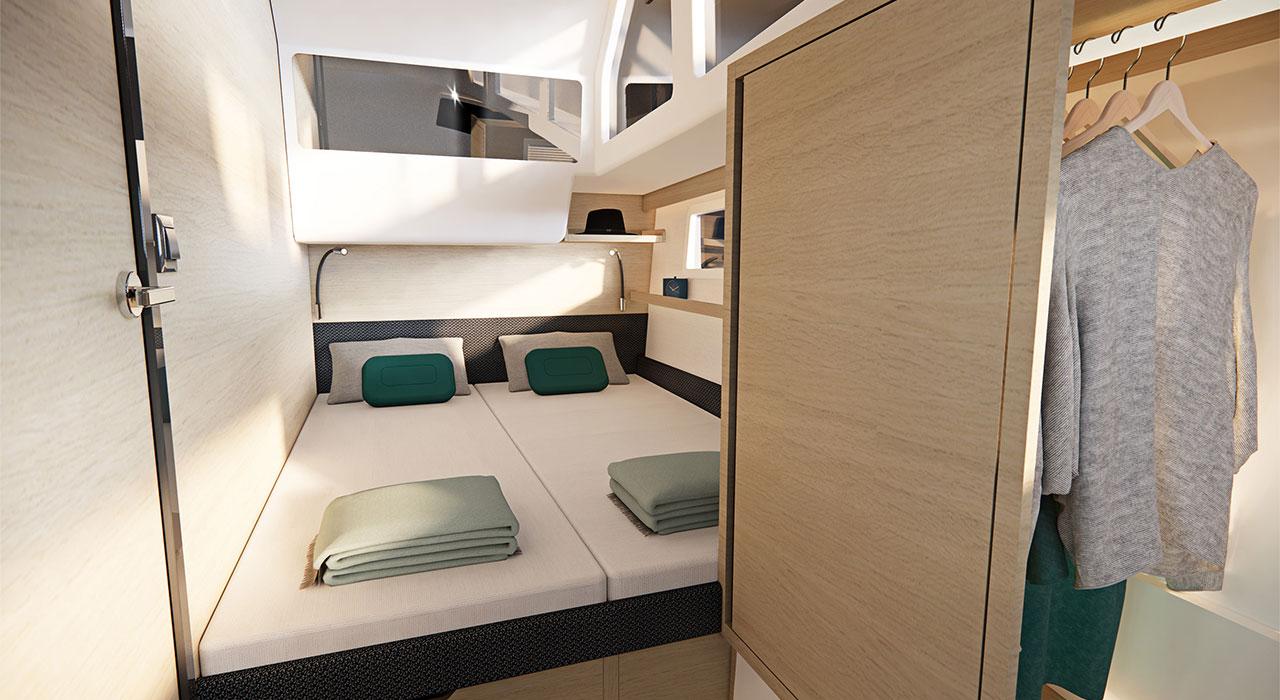

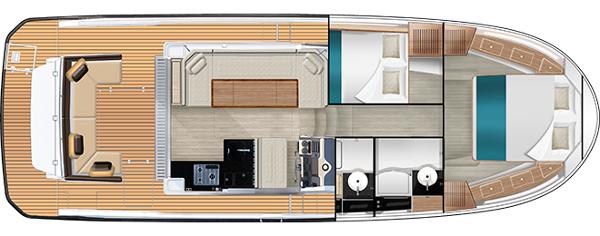

GUEST CABIN ( 2 CABIN LAYOUT) Standard
• EU French size bed (2,00 x 1,40m)
• Mattress (thickness: 10cm)
• Storage space under the berth
• 1x hanging locker
• 1x shelf along the hull
• 1x large hull portlight
• 1x opening portlight in coachroof
• Overhead lights, LED
• 2x reading lights, LED
• 2x 230V sockets

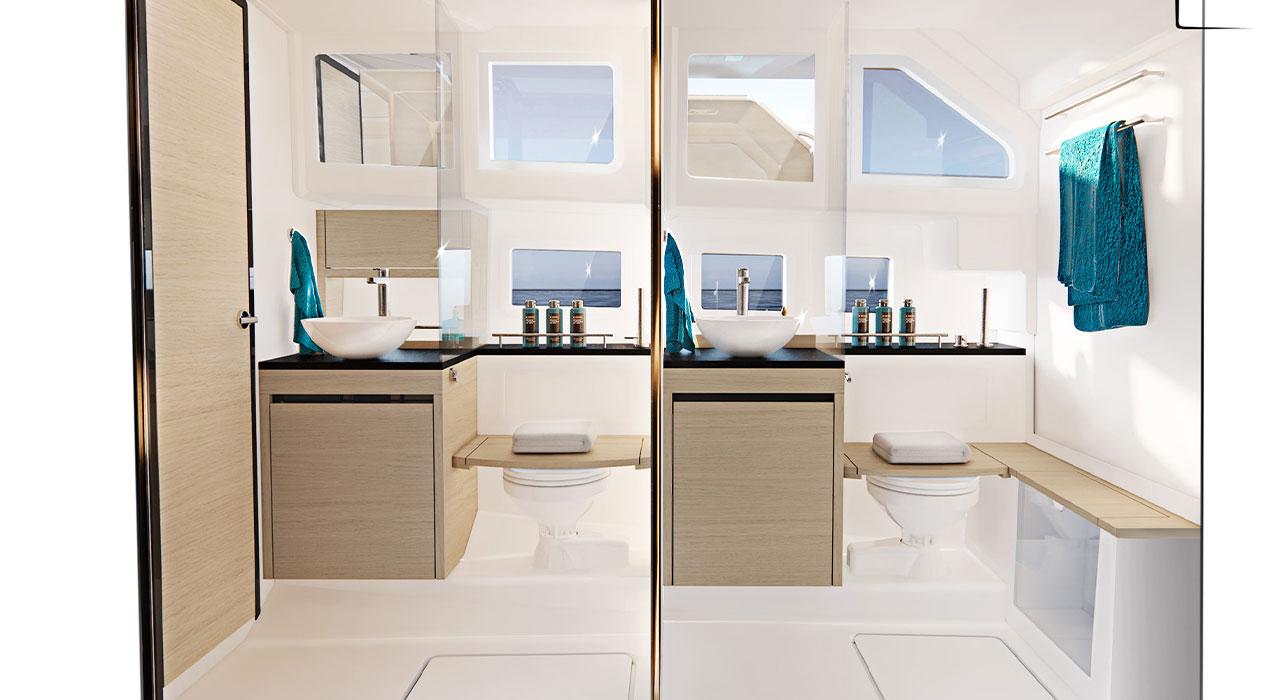

BATHROOM AFT ( 2 CABIN LAYOUT) Standard
• Mirror
• Composite in «Nero Black» material
• Ceramic washbasin incl. hot/cold mixing tap
• Storage cupboard
• Quite flush electric toilet with fresh water flush
• Toilet cover
• 1x hull portlight
• 1x opening portlights in coachroof
• Overhead light, LED
• 1x 230V socket
• Wet locker

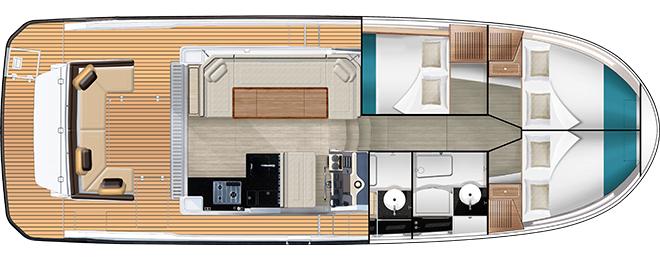

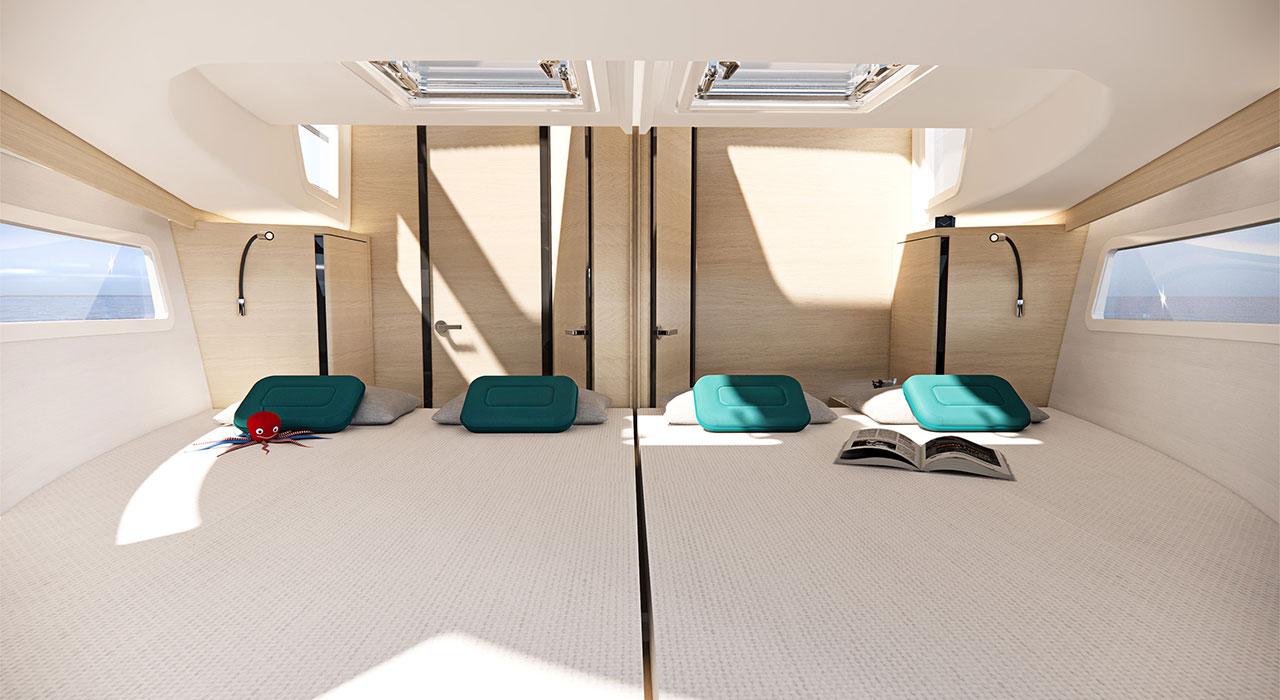

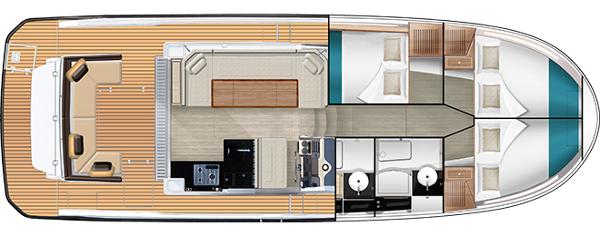

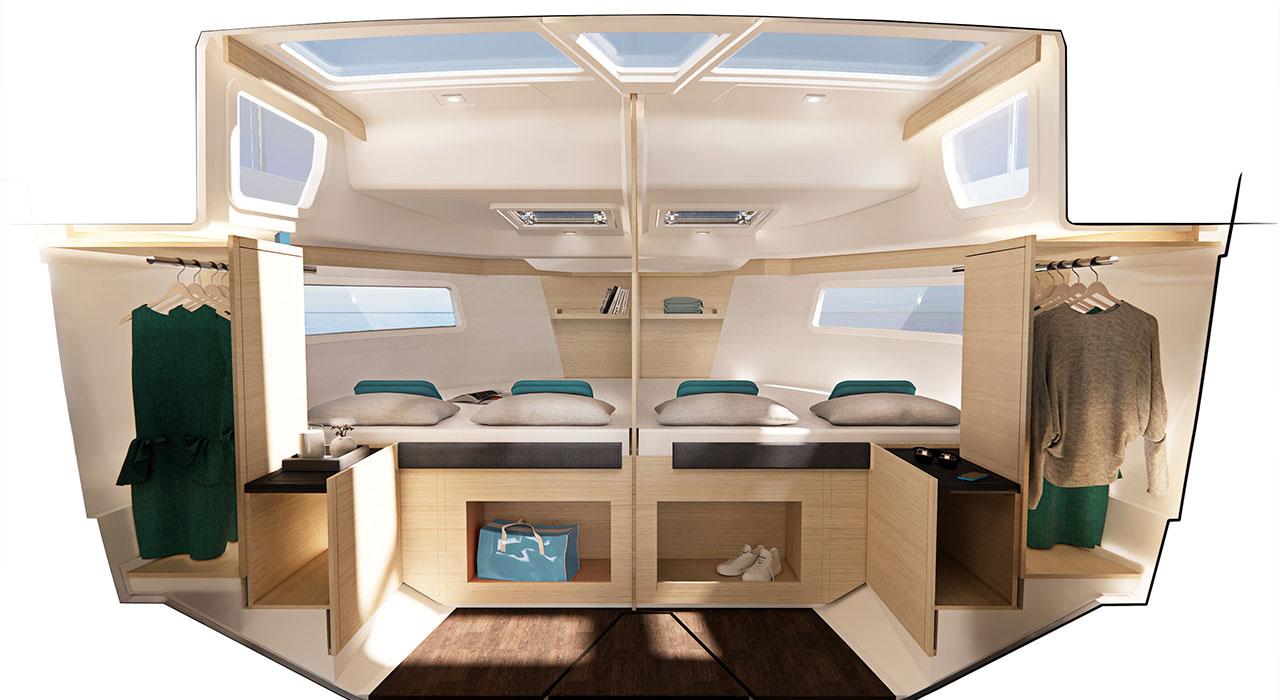

2X SYMMETRICAL BOW CABIN ( 3 CABIN LAYOUT) Standard
• 2x double berth (1,95 x 1,48 x 0,47m)
• 2x mattress (thickness: 10cm)
• Open storage space for large items under the berth
• 2x hanging lockers
• 2x opening hatches
• 2x large hull portlights
• Skylight
• Curtains
• Padded side panels
• Overhead lights, LED
• 2x reading lights, LED
• 2x 230V sockets
• Smoke detector
• Removable central bulkhead system
AMBIENCE
• Alpi Walnut interior woodwork
• Grey oak style floors
• Interior cushions fabrics : Drom "Sand"
• Worktop in composite «Nero Black» material
ENGINE ROOM / PLUNMBING / ELECTRICS
•• Shaft line propulsion
• 4 blade propeller
• Single diesel engine: Yanmar 4JH57 (41,90kW/57,00hp)
• Fuel filters
• Seawater filter
• Water separator
• Engine room soundproofed with high density foam
• Air intakes for engine hold cooling, on coachroof
• Fire extinguisher port
• Fuel tank deck filler
• Aluminium fuel tank
• Steering system: hung rudder, stainless steel
• Hydraulic steering
• Engine access hatch in salon floor
• Engine room light, LED
• 1x manual bilge pump in cockpit, 30l/min
• 1x electric bilge pump, 50l/min
• 1x fresh water pump for pressuring hot/cold water system
• Water heater, 40l working off engine exchanger and 230V
• Water tank filler on stern
• Rotomoulded fresh water tank, 380l
• Rotomoulded black water tank, 170l
• Gas locker for 2x 3kg EU gas bottles in cockpit bench
• Regulator and safety tap
• Gas leak detector
• Multicolour 3,5”display (indicator of battery voltage, level gauges for fresh water, waste water, fuel, etc,..)
• Main electric switches, at dashboard
• 1x engine battery, AGM, 95Ah
• 1x service battery, AGM, 95Ah
• 2x bow thruster battery, AGM 50Ah
• Battery charger, 230V/12V/40A
• Shore power socket, 230V/32A
• Ship-to-shore cable, 15m
